group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12130	119.31	548.86	69.26	316.09	-7.21	228.24	-27.43	115.67	0.5075	439.4	317.3

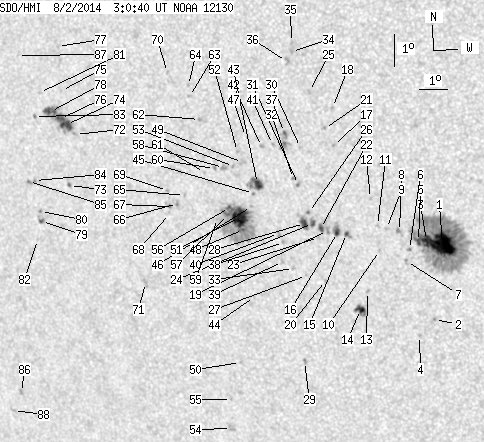

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-08-02 03:00:40 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	37.11	234.08	20.58	129.80	-7.79	232.67	-23.00	120.48	0.4510	1281.6	481.5
2	0.00	1.18	0.00	0.66	-10.16	232.23	-23.43	124.37	0.4761	838.0	734.5
3	6.06	-1.00	3.38	-1.00	-7.68	232.14	-23.53	119.71	0.4573	965.5	999999
4	0.00	1.45	0.00	0.82	-10.69	231.68	-23.98	124.66	0.4876	656.0	560.5
5	1.99	-1.00	1.11	-1.00	-7.72	231.87	-23.80	119.50	0.4613	731.9	999999
6	0.00	1.81	0.00	1.01	-7.99	231.55	-24.12	119.67	0.4676	770.0	617.2
7	0.00	2.17	0.00	1.22	-8.37	231.42	-24.24	120.25	0.4722	573.0	412.1
8	0.00	3.80	0.00	2.13	-7.44	231.25	-24.42	118.32	0.4676	822.0	622.2
9	0.00	1.45	0.00	0.81	-7.36	230.81	-24.85	117.75	0.4730	759.0	544.1
10	0.00	1.00	0.00	0.56	-8.06	230.53	-25.14	118.78	0.4818	754.0	568.9
11	0.00	1.27	0.00	0.71	-7.28	230.51	-25.15	117.31	0.4765	722.0	571.9
12	0.00	1.00	0.00	0.56	-6.45	230.32	-25.34	115.56	0.4734	720.0	521.3
13	0.00	1.54	0.00	0.88	-9.37	230.02	-25.64	120.63	0.4982	883.0	632.9
14	4.98	8.60	2.86	4.93	-9.95	229.73	-25.93	121.34	0.5064	935.7	625.7
15	1.27	3.80	0.72	2.16	-7.58	229.43	-26.23	116.87	0.4931	966.1	761.3
16	2.81	8.33	1.60	4.75	-7.56	229.13	-26.54	116.56	0.4972	1026.5	699.1
17	0.00	1.00	0.00	0.56	-4.86	229.14	-26.52	111.49	0.4801	898.0	715.5
18	0.00	1.45	0.00	0.81	-3.68	229.15	-26.51	109.19	0.4736	-663.0	-487.8
19	0.00	2.99	0.00	1.71	-7.52	228.79	-26.88	116.18	0.5015	993.0	719.2
20	0.00	1.18	0.00	0.68	-9.09	228.60	-27.07	118.79	0.5147	763.0	631.7
21	0.00	1.63	0.00	0.92	-4.34	228.86	-26.81	110.28	0.4814	-817.0	-636.8
22	2.17	4.07	1.24	2.33	-7.46	228.55	-27.12	115.89	0.5043	964.8	699.6
23	0.00	1.09	0.00	0.62	-7.75	228.46	-27.21	116.32	0.5074	757.0	639.4
24	1.81	15.30	1.04	8.80	-7.32	228.28	-27.38	115.40	0.5070	908.0	621.7
25	0.00	1.90	0.00	1.07	-3.22	228.38	-27.28	107.75	0.4825	-704.0	-538.4
26	0.00	1.36	0.00	0.78	-6.98	228.17	-27.50	114.70	0.5065	756.0	660.9
27	0.00	0.54	0.00	0.32	-8.97	227.95	-27.72	118.00	0.5224	603.0	508.8
28	4.80	-24.00	2.76	-24.00	-7.33	228.00	-27.66	115.20	0.5109	855.5	999999
29	0.00	2.17	0.00	1.28	-11.70	227.61	-28.06	122.19	0.5464	25.0	-124.1
30	0.00	1.18	0.00	0.67	-4.97	228.00	-27.66	110.86	0.4969	643.0	504.8
31	0.00	1.63	0.00	0.93	-6.13	227.87	-27.79	112.91	0.5053	892.0	834.2
32	0.00	1.54	0.00	0.88	-5.95	227.71	-27.96	112.46	0.5065	855.0	737.8
33	0.00	1.72	0.00	1.00	-8.77	227.51	-28.15	117.29	0.5268	681.0	529.9
34	0.00	1.81	0.00	1.02	-2.02	227.79	-27.87	105.01	0.4857	-895.0	-715.7
35	0.00	1.36	0.00	0.77	-1.75	227.80	-27.87	104.46	0.4844	-782.0	-620.5
36	0.00	3.53	0.00	2.00	-2.34	227.61	-28.05	105.53	0.4896	-670.0	-704.3
37	0.91	11.22	0.52	6.43	-4.53	227.47	-28.20	109.66	0.5022	-944.6	-329.5
38	0.00	1.36	0.00	0.79	-7.97	227.23	-28.44	115.68	0.5254	814.0	696.1
39	0.00	2.35	0.00	1.37	-8.56	227.14	-28.52	116.64	0.5303	661.0	542.7
40	0.00	2.63	0.00	1.53	-7.69	227.07	-28.59	115.08	0.5257	820.0	667.2
41	0.00	1.18	0.00	0.68	-4.92	227.03	-28.63	110.10	0.5104	694.0	425.8
42	0.00	2.17	0.00	1.25	-5.01	226.65	-29.02	109.98	0.5162	909.0	658.0
43	6.97	14.75	4.05	8.59	-6.16	226.44	-29.22	111.93	0.5253	972.9	690.3
44	0.00	1.09	0.00	0.64	-9.72	226.05	-29.62	117.67	0.5521	-354.0	-289.8
45	0.00	1.27	0.00	0.74	-6.48	226.28	-29.39	112.37	0.5293	768.0	623.4
46	0.00	1.18	0.00	0.69	-6.89	226.18	-29.48	113.02	0.5330	778.0	606.9
47	0.00	0.36	0.00	0.21	-4.72	226.10	-29.57	109.11	0.5225	-523.0	-456.5
48	0.72	97.31	0.43	57.34	-7.63	225.84	-29.82	114.04	0.5418	856.9	326.2
49	0.00	3.44	0.00	2.00	-5.54	225.95	-29.71	110.48	0.5287	608.0	552.0
50	0.00	1.27	0.00	0.77	-11.85	225.31	-30.36	120.43	0.5758	-700.0	-619.1
51	22.63	-48.00	13.31	-48.00	-7.26	225.73	-29.93	113.32	0.5412	1043.7	999999
52	0.00	1.27	0.00	0.74	-5.20	225.79	-29.87	109.78	0.5292	634.0	428.8
53	0.00	1.54	0.00	0.90	-5.68	225.63	-30.04	110.51	0.5339	682.0	673.9
54	0.00	3.08	0.00	1.90	-14.00	224.68	-30.98	123.10	0.5984	-683.0	-628.6
55	0.00	1.00	0.00	0.61	-13.06	224.82	-30.85	121.84	0.5901	-579.0	-502.5
56	1.09	-48.00	0.64	-48.00	-6.96	225.40	-30.27	112.59	0.5440	702.9	999999
57	1.00	-48.00	0.59	-48.00	-7.18	225.35	-30.32	112.93	0.5459	649.7	999999
58	0.00	3.44	0.00	2.02	-5.73	225.27	-30.40	110.36	0.5391	608.0	574.2
59	0.00	1.00	0.00	0.59	-7.33	224.94	-30.72	112.89	0.5522	137.0	91.0
60	0.00	1.99	0.00	1.17	-5.77	224.94	-30.72	110.24	0.5438	703.0	495.8
61	0.00	0.81	0.00	0.48	-5.92	224.58	-31.09	110.25	0.5495	473.0	403.7
62	0.00	1.72	0.00	1.01	-4.28	224.49	-31.17	107.36	0.5429	-776.0	-672.6
63	0.00	1.54	0.00	0.91	-3.59	224.16	-31.50	105.96	0.5445	-704.0	-474.2
64	0.00	0.81	0.00	0.48	-3.25	224.14	-31.52	105.35	0.5434	-735.0	-616.0
65	0.00	1.18	0.00	0.70	-6.67	223.81	-31.86	111.05	0.5639	677.0	568.6
66	0.00	2.08	0.00	1.25	-6.94	223.53	-32.13	111.31	0.5689	746.0	688.4
67	0.54	2.35	0.33	1.42	-7.05	223.23	-32.43	111.31	0.5734	712.5	538.9
68	0.00	1.00	0.00	0.60	-7.27	223.22	-32.45	111.65	0.5748	366.0	294.2
69	0.00	1.27	0.00	0.76	-6.55	223.20	-32.47	110.47	0.5714	630.0	465.1
70	0.00	1.09	0.00	0.64	-2.89	223.40	-32.27	104.35	0.5525	-613.0	-484.6
71	0.00	3.89	0.00	2.41	-9.49	222.12	-33.55	114.46	0.6010	-833.0	-625.7
72	0.00	1.09	0.00	0.68	-5.00	219.90	-35.76	106.21	0.6085	-662.0	-526.8
73	0.63	1.72	0.40	1.08	-6.61	219.55	-36.11	108.54	0.6197	703.7	548.0
74	8.24	35.39	5.15	22.19	-4.71	219.58	-36.08	105.61	0.6117	-892.8	-495.0
75	0.00	0.81	0.00	0.51	-3.67	219.45	-36.22	103.90	0.6096	-573.0	-524.0
76	5.16	-74.00	3.23	-74.00	-4.54	219.36	-36.30	105.24	0.6139	-973.6	999999
77	0.00	1.27	0.00	0.79	-2.32	219.35	-36.31	101.70	0.6065	-663.0	-419.4
78	6.43	-74.00	4.04	-74.00	-4.35	219.00	-36.67	104.77	0.6181	-734.6	999999
79	1.27	3.98	0.82	2.56	-7.80	218.36	-37.30	109.75	0.6402	743.9	592.8
80	0.00	1.27	0.00	0.81	-7.49	218.36	-37.31	109.28	0.6389	757.0	630.5
81	0.00	1.27	0.00	0.80	-3.78	218.61	-37.06	103.73	0.6213	-515.0	-361.1
82	0.00	0.81	0.00	0.53	-8.38	218.14	-37.52	110.48	0.6455	-459.0	-344.6
83	0.36	1.45	0.23	0.92	-4.54	218.37	-37.29	104.81	0.6270	-434.5	-340.8
84	0.00	1.18	0.00	0.75	-6.53	218.22	-37.45	107.78	0.6366	-831.0	-630.8
85	0.36	2.08	0.23	1.34	-6.58	217.98	-37.68	107.74	0.6398	-565.2	-483.0
86	0.00	2.53	0.00	1.72	-13.32	216.75	-38.91	116.62	0.6860	-591.0	-550.6
87	0.00	0.72	0.00	0.46	-2.69	217.81	-37.86	101.73	0.6283	-589.0	-479.2
88	0.00	1.72	0.00	1.18	-13.92	216.31	-39.36	117.17	0.6942	-696.0	-473.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
