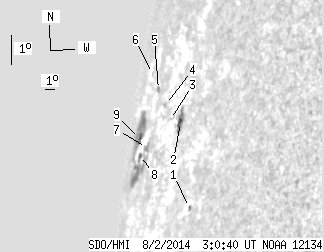

SDO HMI 2014-08-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.78 | 77.66 | 29.25 | 292.32 | 9.28 | 172.43 | -83.24 | 81.37 | 0.9911 | 23.9 | 67.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 3.10 | 8.01 | 180.99 | -74.67 | 83.31 | 0.9628 | -277.0 | -241.5 | |
| 3.71 | 11.59 | 7.97 | 24.87 | 10.38 | 178.27 | -77.40 | 80.69 | 0.9738 | -502.5 | -391.2 | |
| 0.00 | 0.27 | 0.00 | 0.65 | 10.32 | 176.78 | -78.89 | 80.65 | 0.9793 | 280.0 | 286.7 | |
| 0.00 | 1.54 | 0.00 | 4.11 | 10.67 | 175.55 | -80.11 | 80.22 | 0.9832 | 338.0 | 331.1 | |
| 0.00 | 1.99 | 0.00 | 6.29 | 10.96 | 173.77 | -81.90 | 79.80 | 0.9883 | 305.0 | 307.1 | |
| 0.00 | 0.72 | 0.00 | 2.92 | 11.25 | 171.72 | -83.94 | 79.34 | 0.9930 | 143.0 | 114.8 | |
| 0.00 | 4.25 | 0.00 | 14.24 | 9.11 | 173.38 | -82.29 | 81.62 | 0.9897 | 574.0 | 474.1 | |
| 1.18 | 55.58 | 4.54 | 236.14 | 8.76 | 172.30 | -83.37 | 81.90 | 0.9922 | 332.8 | 68.0 | |
| 3.89 | -8.00 | 16.74 | -8.00 | 9.19 | 171.35 | -84.32 | 81.38 | 0.9940 | 117.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
