SDO HMI 2014-08-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.49 | 466.35 | 50.41 | 239.13 | -7.71 | 249.58 | -5.53 | 158.29 | 0.2563 | 518.5 | 303.3 | |
|
previous
or next observation for the same group /

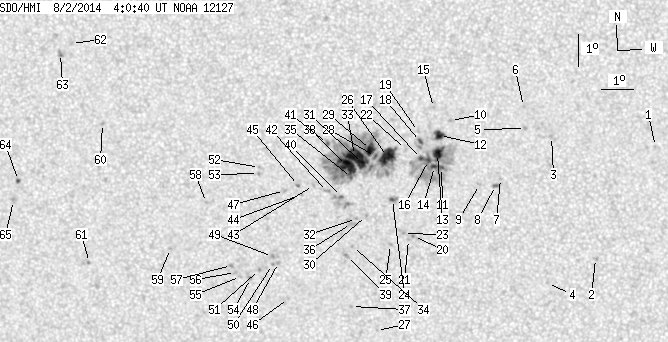

back to the solar disc SDO HMI 2014-08-02 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.10 | 258.15 | 3.04 | 193.21 | 0.2312 | 820.0 | 518.4 | |
| 0.00 | 2.26 | 0.00 | 1.17 | -10.61 | 256.32 | 1.20 | 184.17 | 0.2855 | 606.0 | 571.8 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -6.77 | 254.97 | -0.15 | 179.31 | 0.2197 | 716.0 | 581.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.40 | 254.83 | -0.28 | 179.07 | 0.2981 | 714.0 | 475.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.52 | 254.17 | -0.95 | 175.62 | 0.2160 | 890.0 | 723.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | -5.84 | 254.11 | -1.01 | 175.08 | 0.2044 | 838.0 | 704.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.09 | 253.40 | -1.72 | 172.97 | 0.2439 | -817.0 | -532.6 | |
| 0.63 | 2.90 | 0.32 | 1.48 | -8.31 | 253.24 | -1.88 | 172.46 | 0.2479 | -911.7 | -638.0 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.28 | 252.75 | -2.37 | 170.50 | 0.2487 | 923.0 | 688.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -6.28 | 251.87 | -3.24 | 165.02 | 0.2185 | 942.0 | 655.1 | |
| 1.27 | 130.09 | 0.65 | 66.40 | -7.75 | 251.59 | -3.53 | 165.45 | 0.2440 | 864.2 | 402.1 | |
| 5.25 | -11.00 | 2.67 | -11.00 | -6.75 | 251.53 | -3.58 | 164.11 | 0.2278 | 1174.4 | 999999 | |
| 7.15 | -11.00 | 3.65 | -11.00 | -7.31 | 251.47 | -3.65 | 164.50 | 0.2373 | 1295.1 | 999999 | |
| 1.99 | -11.00 | 1.02 | -11.00 | -7.72 | 251.37 | -3.75 | 164.57 | 0.2444 | 899.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.88 | 251.36 | -3.76 | 162.20 | 0.2144 | 995.0 | 794.7 | |
| 2.08 | -11.00 | 1.06 | -11.00 | -7.53 | 251.19 | -3.93 | 163.64 | 0.2422 | 926.3 | 999999 | |
| 1.54 | -11.00 | 0.79 | -11.00 | -7.47 | 250.97 | -4.14 | 162.72 | 0.2423 | 934.4 | 999999 | |
| 1.54 | 5.97 | 0.78 | 3.04 | -6.94 | 250.95 | -4.17 | 161.94 | 0.2338 | 1086.5 | 747.7 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.63 | 250.89 | -4.23 | 161.27 | 0.2291 | 777.0 | 660.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.92 | 250.69 | -4.42 | 164.38 | 0.2834 | -937.0 | -814.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.02 | 250.54 | -4.58 | 163.95 | 0.2857 | -890.0 | -713.1 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -7.19 | 250.48 | -4.63 | 160.44 | 0.2404 | 914.0 | 586.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.83 | 250.39 | -4.73 | 163.26 | 0.2833 | -988.0 | -828.8 | |
| 1.09 | 3.80 | 0.56 | 1.95 | -8.76 | 250.06 | -5.05 | 160.94 | 0.2679 | 848.3 | 748.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.18 | 249.98 | -5.14 | 162.28 | 0.2910 | -898.0 | -643.8 | |
| 18.20 | 233.65 | 9.30 | 119.67 | -7.41 | 249.93 | -5.19 | 158.63 | 0.2473 | 1210.4 | 428.3 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.93 | 249.48 | -5.63 | 163.44 | 0.3370 | -702.0 | -552.8 | |
| 1.09 | -26.00 | 0.56 | -26.00 | -7.42 | 249.56 | -5.56 | 157.26 | 0.2497 | 1184.2 | 999999 | |
| 7.15 | -26.00 | 3.66 | -26.00 | -7.20 | 249.41 | -5.71 | 156.36 | 0.2473 | 1321.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.27 | 249.25 | -5.87 | 158.83 | 0.2806 | 871.0 | 680.3 | |
| 9.14 | -26.00 | 4.68 | -26.00 | -7.64 | 249.15 | -5.96 | 156.15 | 0.2558 | 1171.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.37 | 248.94 | -6.18 | 157.94 | 0.2841 | 708.0 | 471.4 | |
| 16.57 | -26.00 | 8.48 | -26.00 | -7.39 | 248.91 | -6.21 | 154.88 | 0.2537 | 1372.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.26 | 248.80 | -6.32 | 158.64 | 0.2988 | -843.0 | -651.6 | |
| 0.27 | -26.00 | 0.14 | -26.00 | -8.08 | 248.81 | -6.31 | 155.64 | 0.2650 | 763.0 | 999999 | |
| 0.00 | 7.51 | 0.00 | 3.89 | -9.53 | 248.78 | -6.34 | 157.65 | 0.2876 | -194.0 | -145.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -12.17 | 248.72 | -6.40 | 160.58 | 0.3290 | -706.0 | -484.1 | |
| 21.36 | -26.00 | 10.96 | -26.00 | -7.71 | 248.66 | -6.46 | 154.53 | 0.2603 | 1107.6 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -10.54 | 248.60 | -6.51 | 158.40 | 0.3044 | -1082.0 | -832.5 | |
| 0.54 | 12.67 | 0.28 | 6.54 | -8.68 | 248.49 | -6.63 | 155.50 | 0.2765 | 1029.8 | 555.7 | |
| 0.63 | 2.35 | 0.32 | 1.21 | -7.03 | 248.08 | -7.03 | 151.33 | 0.2545 | 966.7 | 764.2 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -8.53 | 248.05 | -7.06 | 153.86 | 0.2772 | 843.0 | 667.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.35 | 247.62 | -7.49 | 152.19 | 0.2778 | 633.0 | 362.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.63 | 247.25 | -7.87 | 151.50 | 0.2850 | -521.0 | -379.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.35 | 247.16 | -7.96 | 150.75 | 0.2816 | 961.0 | 763.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -11.94 | 246.75 | -8.37 | 154.95 | 0.3377 | -810.0 | -672.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.52 | 246.72 | -8.40 | 149.71 | 0.2876 | -489.0 | -420.7 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -10.79 | 246.47 | -8.65 | 152.65 | 0.3228 | -774.0 | -624.7 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -10.61 | 246.29 | -8.83 | 151.88 | 0.3215 | -941.0 | -805.0 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -10.86 | 246.28 | -8.84 | 152.24 | 0.3252 | -915.0 | -773.5 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -11.03 | 245.87 | -9.25 | 151.39 | 0.3308 | -1017.0 | -893.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.81 | 245.96 | -9.16 | 146.14 | 0.2843 | 843.0 | 639.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.99 | 245.92 | -9.19 | 146.41 | 0.2872 | 914.0 | 738.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -11.32 | 245.58 | -9.54 | 151.06 | 0.3374 | -908.0 | -745.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -11.26 | 245.26 | -9.85 | 150.18 | 0.3390 | -708.0 | -527.2 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -11.13 | 245.11 | -10.01 | 149.61 | 0.3385 | -874.0 | -709.8 | |
| 0.00 | 2.17 | 0.00 | 1.14 | -10.91 | 244.99 | -10.13 | 148.98 | 0.3364 | -1026.0 | -808.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.93 | 244.27 | -10.84 | 143.76 | 0.3158 | -863.0 | -640.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -10.41 | 243.09 | -12.03 | 143.59 | 0.3469 | -853.0 | -705.5 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -6.53 | 241.08 | -14.04 | 131.27 | 0.3221 | -893.0 | -746.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -10.91 | 240.49 | -14.63 | 139.00 | 0.3797 | -838.0 | -703.5 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -4.07 | 240.16 | -14.96 | 123.29 | 0.3093 | -776.0 | -638.2 | |
| 0.00 | 3.26 | 0.00 | 1.70 | -4.39 | 239.81 | -15.31 | 123.51 | 0.3172 | -941.0 | -756.2 | |
| 1.00 | 2.26 | 0.53 | 1.21 | -8.38 | 238.33 | -16.78 | 130.24 | 0.3759 | -887.4 | -698.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.02 | 238.14 | -16.98 | 131.20 | 0.3849 | -836.0 | -732.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
