SDO HMI 2014-08-02 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.68 | 22.11 | 6.49 | 12.28 | -20.52 | 248.94 | -5.63 | 168.30 | 0.4550 | 908.5 | 608.0 | |
|
previous
or next observation for the same group /

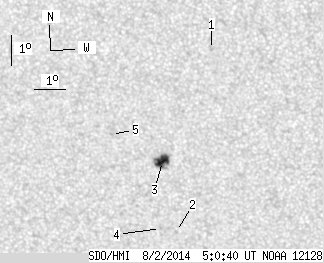

back to the solar disc SDO HMI 2014-08-02 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.49 | -16.69 | 250.62 | -3.95 | 170.23 | 0.3906 | 736.0 | 598.1 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -22.85 | 249.30 | -5.27 | 169.99 | 0.4894 | 409.0 | 377.1 | |
| 11.68 | 17.84 | 6.49 | 9.91 | -20.45 | 248.93 | -5.64 | 168.25 | 0.4541 | 1053.4 | 658.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.75 | 248.77 | -5.80 | 168.98 | 0.4894 | 760.0 | 564.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.55 | 247.30 | -7.26 | 164.46 | 0.4465 | 789.0 | 672.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
