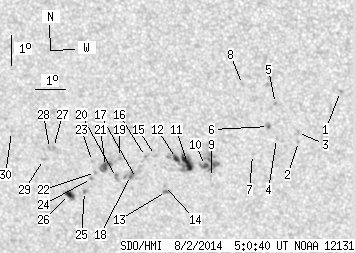

SDO HMI 2014-08-02 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.09 | 111.65 | 12.60 | 63.41 | -18.72 | 238.55 | -16.02 | 147.79 | 0.4906 | -15.4 | 111.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.74 | -16.20 | 244.53 | -10.04 | 155.90 | 0.4116 | 785.0 | 548.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -17.88 | 243.07 | -11.50 | 154.66 | 0.4452 | 806.0 | 638.3 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -17.58 | 243.06 | -11.51 | 154.33 | 0.4411 | 757.0 | 670.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -17.80 | 242.35 | -12.21 | 153.22 | 0.4489 | 730.0 | 618.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -16.64 | 242.40 | -12.17 | 152.05 | 0.4326 | 861.0 | 712.2 | |
| 0.36 | 2.72 | 0.20 | 1.50 | -17.40 | 242.12 | -12.45 | 152.36 | 0.4452 | 935.8 | 815.8 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.35 | 241.53 | -13.04 | 152.28 | 0.4624 | 557.0 | 436.5 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -16.04 | 241.37 | -13.20 | 149.35 | 0.4323 | 681.0 | 483.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -19.15 | 240.10 | -14.47 | 150.66 | 0.4836 | 578.0 | 476.6 | |
| 1.90 | 22.00 | 1.07 | 12.39 | -18.76 | 239.94 | -14.63 | 149.95 | 0.4796 | 917.1 | 805.6 | |
| 7.88 | 28.34 | 4.45 | 16.03 | -18.70 | 239.34 | -15.23 | 148.90 | 0.4835 | 1042.4 | 637.9 | |
| 2.81 | -11.00 | 1.59 | -11.00 | -18.55 | 238.99 | -15.58 | 148.14 | 0.4843 | 919.6 | 999999 | |
| 0.63 | 2.99 | 0.36 | 1.71 | -19.67 | 238.55 | -16.02 | 148.68 | 0.5021 | -934.3 | -715.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.47 | 238.50 | -16.07 | 148.39 | 0.4999 | -232.0 | -168.7 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -18.47 | 238.30 | -16.27 | 146.93 | 0.4890 | 513.0 | 323.2 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -18.51 | 237.96 | -16.61 | 146.44 | 0.4923 | 495.0 | 351.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -19.26 | 237.58 | -16.99 | 146.72 | 0.5048 | -692.0 | -562.6 | |
| 0.00 | 7.15 | 0.00 | 4.10 | -19.16 | 237.39 | -17.18 | 146.32 | 0.5052 | -1035.0 | -833.3 | |
| 0.00 | 1.99 | 0.00 | 1.14 | -18.57 | 237.08 | -17.49 | 145.15 | 0.5006 | -413.0 | -517.9 | |
| 0.00 | 3.71 | 0.00 | 2.14 | -19.25 | 236.90 | -17.67 | 145.69 | 0.5103 | -871.0 | -740.2 | |
| 4.53 | 10.23 | 2.60 | 5.88 | -18.89 | 236.57 | -18.00 | 144.77 | 0.5088 | -996.6 | -801.8 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -19.10 | 236.21 | -18.36 | 144.49 | 0.5145 | -787.0 | -606.3 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -18.73 | 236.15 | -18.42 | 143.96 | 0.5106 | -794.0 | -643.2 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -19.31 | 236.05 | -18.52 | 144.50 | 0.5183 | -884.0 | -671.8 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -19.75 | 235.76 | -18.81 | 144.61 | 0.5261 | -925.0 | -823.7 | |
| 3.98 | 6.43 | 2.33 | 3.76 | -19.87 | 235.23 | -19.34 | 144.01 | 0.5321 | -944.8 | -687.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -18.31 | 234.87 | -19.69 | 141.61 | 0.5172 | -755.0 | -600.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -18.35 | 234.73 | -19.84 | 141.46 | 0.5190 | -726.0 | -618.3 | |
| 0.00 | 1.90 | 0.00 | 1.11 | -18.72 | 234.48 | -20.09 | 141.59 | 0.5256 | -793.0 | -601.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -17.83 | 233.50 | -21.07 | 139.11 | 0.5249 | -577.0 | -384.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
