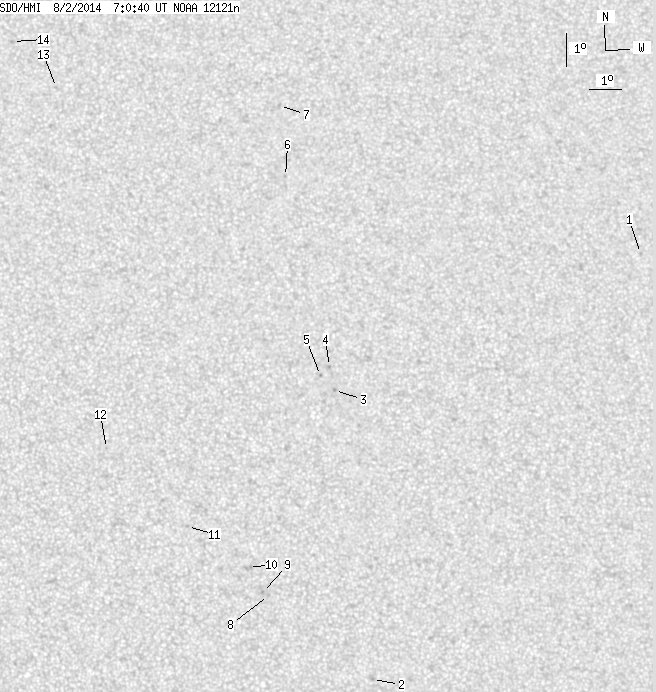

SDO HMI 2014-08-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.12 | 0.00 | 9.58 | 9.27 | 257.28 | 3.80 | 290.07 | 0.1357 | 728.9 | 605.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.42 | 268.98 | 15.51 | 297.45 | 0.2944 | -728.0 | -584.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 0.61 | 260.22 | 6.75 | 232.27 | 0.1492 | 896.0 | 677.4 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 9.42 | 259.15 | 5.67 | 302.68 | 0.1164 | 1047.0 | 814.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 10.16 | 259.01 | 5.53 | 308.44 | 0.1217 | 990.0 | 780.8 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 9.89 | 258.72 | 5.25 | 308.06 | 0.1149 | 927.0 | 749.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 16.00 | 257.75 | 4.27 | 337.87 | 0.1911 | 829.0 | 608.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 18.20 | 257.61 | 4.14 | 342.24 | 0.2256 | 756.0 | 604.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 3.21 | 257.05 | 3.58 | 233.44 | 0.0780 | 791.0 | 651.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 3.30 | 256.87 | 3.40 | 232.96 | 0.0745 | 960.0 | 769.6 | |
| 0.00 | 3.89 | 0.00 | 1.93 | 4.06 | 256.45 | 2.97 | 238.78 | 0.0608 | 488.0 | 669.0 | |
| 0.00 | 0.91 | 0.00 | 0.45 | 5.32 | 254.59 | 1.12 | 243.77 | 0.0217 | 914.0 | 741.4 | |
| 0.00 | 0.63 | 0.00 | 0.31 | 7.69 | 252.11 | -1.36 | 36.44 | 0.0399 | 735.0 | 583.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 18.78 | 250.45 | -3.02 | 12.57 | 0.2301 | 873.0 | 688.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 20.21 | 249.00 | -4.47 | 16.44 | 0.2598 | 727.0 | 589.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
