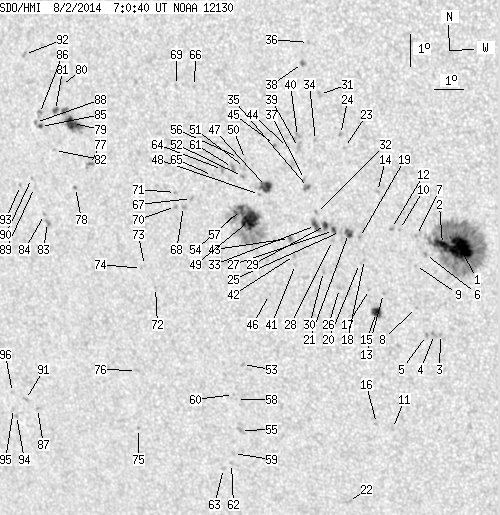

SDO HMI 2014-08-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.55 | 535.44 | 62.99 | 303.41 | -7.51 | 228.11 | -25.36 | 118.15 | 0.4819 | 420.1 | 273.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.04 | 224.64 | 19.66 | 122.56 | -7.85 | 232.82 | -20.66 | 123.42 | 0.4204 | 1315.6 | 492.8 | |
| 10.05 | -1.00 | 5.50 | -1.00 | -7.74 | 232.23 | -21.24 | 122.47 | 0.4273 | 956.5 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -10.59 | 231.98 | -21.50 | 127.49 | 0.4558 | 892.0 | 738.4 | |
| 0.00 | 2.35 | 0.00 | 1.31 | -10.60 | 231.78 | -21.70 | 127.24 | 0.4583 | 512.0 | 682.5 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -10.64 | 231.51 | -21.97 | 126.98 | 0.4621 | 690.0 | 599.0 | |
| 0.00 | 2.17 | 0.00 | 1.20 | -8.08 | 231.65 | -21.83 | 122.42 | 0.4378 | 835.0 | 620.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -7.49 | 231.38 | -22.09 | 120.96 | 0.4366 | 834.0 | 759.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -9.76 | 231.24 | -22.23 | 125.08 | 0.4576 | -637.0 | -479.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -8.44 | 231.30 | -22.18 | 122.69 | 0.4455 | 530.0 | 451.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -7.33 | 230.83 | -22.65 | 120.00 | 0.4428 | 778.0 | 679.7 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -13.67 | 230.08 | -23.39 | 130.22 | 0.5072 | -298.0 | -366.4 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -7.31 | 230.56 | -22.91 | 119.66 | 0.4462 | 861.0 | 670.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -9.36 | 230.16 | -23.31 | 123.09 | 0.4679 | 814.0 | 698.2 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -6.17 | 230.16 | -23.32 | 116.97 | 0.4434 | 819.0 | 666.2 | |
| 6.43 | 9.24 | 3.62 | 5.20 | -9.97 | 229.88 | -23.59 | 123.87 | 0.4767 | 988.7 | 660.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -13.53 | 229.55 | -23.93 | 129.37 | 0.5121 | -577.0 | -547.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.26 | 229.70 | -23.77 | 122.38 | 0.4731 | 689.0 | 556.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.32 | 229.60 | -23.88 | 120.55 | 0.4670 | 581.0 | 430.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.63 | 229.47 | -24.00 | 119.13 | 0.4634 | 1011.0 | 888.2 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -8.45 | 229.42 | -24.05 | 120.61 | 0.4703 | 506.0 | 474.3 | |
| 3.71 | 6.43 | 2.08 | 3.60 | -7.52 | 229.11 | -24.37 | 118.55 | 0.4675 | 1029.1 | 772.6 | |
| 0.00 | 3.44 | 0.00 | 2.04 | -16.12 | 228.26 | -25.21 | 131.73 | 0.5505 | -646.0 | -604.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -4.85 | 229.11 | -24.36 | 113.28 | 0.4493 | 842.0 | 613.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -4.45 | 228.99 | -24.48 | 112.36 | 0.4486 | -695.0 | -545.3 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -7.47 | 228.84 | -24.63 | 118.19 | 0.4708 | 749.0 | 606.5 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -9.27 | 228.68 | -24.79 | 121.32 | 0.4864 | 732.0 | 559.7 | |
| 1.36 | 8.60 | 0.76 | 4.84 | -7.45 | 228.61 | -24.87 | 117.92 | 0.4738 | 1010.7 | 690.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -7.77 | 228.55 | -24.92 | 118.46 | 0.4768 | 822.0 | 575.4 | |
| 2.44 | -27.00 | 1.38 | -27.00 | -7.31 | 228.34 | -25.13 | 117.40 | 0.4763 | 891.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -8.75 | 228.18 | -25.30 | 119.89 | 0.4891 | 699.0 | 580.1 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -3.25 | 228.32 | -25.15 | 109.31 | 0.4514 | -813.0 | -652.8 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -6.91 | 228.06 | -25.41 | 116.39 | 0.4775 | 628.0 | 492.4 | |
| 3.35 | 8.06 | 1.89 | 4.55 | -7.32 | 228.00 | -25.47 | 117.10 | 0.4811 | 940.6 | 669.9 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -4.67 | 228.14 | -25.33 | 112.10 | 0.4621 | 745.0 | 536.7 | |
| 0.72 | 3.71 | 0.41 | 2.09 | -6.15 | 227.83 | -25.64 | 114.72 | 0.4756 | 943.9 | 801.5 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -1.66 | 227.99 | -25.49 | 105.72 | 0.4487 | -845.0 | -695.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -5.90 | 227.71 | -25.76 | 114.15 | 0.4757 | 562.0 | 534.9 | |
| 0.00 | 2.99 | 0.00 | 1.66 | -2.32 | 227.77 | -25.70 | 106.97 | 0.4549 | -1021.0 | -850.6 | |
| 0.00 | 4.98 | 0.00 | 2.80 | -4.92 | 227.55 | -25.92 | 112.10 | 0.4720 | 123.0 | -2.8 | |
| 0.00 | 4.26 | 0.00 | 2.39 | -4.58 | 227.53 | -25.94 | 111.41 | 0.4703 | -693.0 | -655.9 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -8.58 | 227.23 | -26.24 | 118.66 | 0.5003 | 604.0 | 476.6 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -8.30 | 227.22 | -26.25 | 118.15 | 0.4984 | 781.0 | 613.5 | |
| 0.54 | 2.08 | 0.31 | 1.19 | -7.77 | 227.09 | -26.39 | 117.08 | 0.4966 | 852.8 | 717.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -4.93 | 227.18 | -26.30 | 111.84 | 0.4774 | 172.0 | 279.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -4.86 | 226.74 | -26.74 | 111.35 | 0.4832 | 834.0 | 657.5 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -9.57 | 226.25 | -27.22 | 119.48 | 0.5202 | -571.0 | -410.3 | |
| 8.15 | 12.22 | 4.64 | 6.97 | -6.18 | 226.40 | -27.08 | 113.58 | 0.4958 | 961.4 | 695.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.44 | 226.14 | -27.33 | 113.86 | 0.5009 | 677.0 | 544.3 | |
| 20.19 | 96.52 | 11.62 | 55.65 | -7.27 | 225.74 | -27.73 | 115.04 | 0.5115 | 1046.5 | 335.7 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -5.37 | 225.72 | -27.76 | 111.56 | 0.5006 | 662.0 | 571.0 | |
| 0.00 | 2.35 | 0.00 | 1.35 | -5.62 | 225.67 | -27.81 | 111.99 | 0.5027 | 547.0 | 574.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -5.91 | 225.58 | -27.89 | 112.45 | 0.5055 | 731.0 | 584.7 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -11.84 | 225.07 | -28.40 | 122.11 | 0.5517 | -817.0 | -722.8 | |
| 4.17 | -49.00 | 2.40 | -49.00 | -6.94 | 225.48 | -27.99 | 114.24 | 0.5129 | 768.6 | 999999 | |
| 0.00 | 3.62 | 0.00 | 2.18 | -13.98 | 224.73 | -28.74 | 125.04 | 0.5721 | -752.0 | -656.3 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -5.32 | 225.48 | -28.00 | 111.29 | 0.5037 | 433.0 | 351.9 | |
| 1.36 | -49.00 | 0.78 | -49.00 | -7.04 | 225.30 | -28.17 | 114.28 | 0.5160 | 571.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -12.98 | 224.72 | -28.75 | 123.54 | 0.5645 | -693.0 | -571.7 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -14.74 | 224.37 | -29.10 | 125.82 | 0.5822 | -676.0 | -508.3 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -12.82 | 224.64 | -28.84 | 123.23 | 0.5644 | -636.0 | -442.2 | |
| 0.00 | 3.17 | 0.00 | 1.82 | -5.64 | 225.25 | -28.22 | 111.72 | 0.5086 | 712.0 | 668.0 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -15.07 | 224.25 | -29.23 | 126.18 | 0.5863 | -730.0 | -504.9 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -15.25 | 223.93 | -29.54 | 126.14 | 0.5913 | -596.0 | -444.9 | |
| 0.00 | 2.90 | 0.00 | 1.67 | -5.72 | 224.90 | -28.58 | 111.61 | 0.5139 | 760.0 | 573.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -5.93 | 224.54 | -28.94 | 111.72 | 0.5201 | 593.0 | 406.6 | |
| 0.00 | 0.72 | 0.00 | 0.42 | -3.20 | 224.03 | -29.44 | 106.40 | 0.5136 | -751.0 | -695.5 | |
| 0.00 | 1.99 | 0.00 | 1.17 | -6.68 | 223.75 | -29.72 | 112.49 | 0.5351 | 881.0 | 711.3 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -6.95 | 223.45 | -30.03 | 112.74 | 0.5407 | 662.0 | 628.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -3.20 | 223.40 | -30.07 | 106.04 | 0.5227 | -597.0 | -509.9 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -6.96 | 223.16 | -30.31 | 112.56 | 0.5446 | 615.0 | 527.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -6.52 | 223.19 | -30.28 | 111.83 | 0.5418 | 640.0 | 514.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -9.55 | 222.22 | -31.26 | 116.15 | 0.5722 | -719.0 | -577.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -8.88 | 221.89 | -31.59 | 114.83 | 0.5724 | -651.0 | -519.2 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -8.98 | 221.77 | -31.71 | 114.91 | 0.5745 | -644.0 | -558.1 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -14.11 | 220.99 | -32.49 | 122.05 | 0.6168 | -677.0 | -584.8 | |
| 0.00 | 1.90 | 0.00 | 1.18 | -12.24 | 221.20 | -32.28 | 119.50 | 0.6019 | -675.0 | -580.2 | |
| 0.00 | 3.98 | 0.00 | 2.42 | -5.82 | 220.14 | -33.33 | 108.77 | 0.5796 | 787.0 | 625.6 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -6.57 | 219.57 | -33.91 | 109.66 | 0.5907 | 587.0 | 592.2 | |
| 10.23 | 26.44 | 6.22 | 16.07 | -4.58 | 219.59 | -33.88 | 106.44 | 0.5816 | -925.5 | -689.1 | |
| 0.00 | 2.44 | 0.00 | 1.49 | -3.43 | 219.24 | -34.23 | 104.36 | 0.5818 | -565.0 | -506.3 | |
| 1.72 | 3.35 | 1.05 | 2.05 | -4.21 | 218.98 | -34.49 | 105.54 | 0.5884 | -719.3 | -561.3 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -5.46 | 218.87 | -34.60 | 107.51 | 0.5950 | 583.0 | 367.8 | |
| 0.00 | 2.99 | 0.00 | 1.87 | -7.72 | 218.42 | -35.05 | 110.84 | 0.6112 | 766.0 | 663.8 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -7.48 | 218.33 | -35.14 | 110.41 | 0.6112 | 823.0 | 604.6 | |
| 1.09 | 2.35 | 0.67 | 1.45 | -4.74 | 218.39 | -35.08 | 106.13 | 0.5984 | -788.8 | -583.6 | |
| 0.00 | 3.62 | 0.00 | 2.23 | -4.34 | 218.38 | -35.09 | 105.47 | 0.5970 | -792.0 | -560.2 | |
| 0.00 | 1.27 | 0.00 | 0.83 | -13.69 | 217.21 | -36.26 | 118.77 | 0.6578 | -742.0 | -649.2 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -4.63 | 218.21 | -35.26 | 105.86 | 0.6004 | -468.0 | -412.8 | |
| 0.00 | 0.81 | 0.00 | 0.51 | -6.66 | 218.03 | -35.44 | 108.97 | 0.6113 | -653.0 | -551.9 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -6.38 | 217.94 | -35.53 | 108.50 | 0.6113 | -660.0 | -519.9 | |
| 0.00 | 1.99 | 0.00 | 1.31 | -13.43 | 216.79 | -36.68 | 118.14 | 0.6612 | -783.0 | -606.6 | |
| 0.00 | 2.35 | 0.00 | 1.45 | -2.55 | 217.90 | -35.58 | 102.36 | 0.5972 | -631.0 | -526.0 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -6.63 | 217.50 | -35.97 | 108.65 | 0.6180 | -668.0 | -579.1 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -13.97 | 216.34 | -37.14 | 118.59 | 0.6695 | -609.0 | -470.5 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -13.75 | 216.26 | -37.21 | 118.24 | 0.6691 | -623.0 | -490.3 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -13.23 | 216.32 | -37.16 | 117.57 | 0.6656 | -525.0 | -441.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
