SDO HMI 2014-08-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.69 | 103.86 | 17.40 | 58.72 | -18.85 | 238.55 | -14.92 | 149.74 | 0.4836 | 118.6 | 51.3 | |
|
previous
or next observation for the same group /

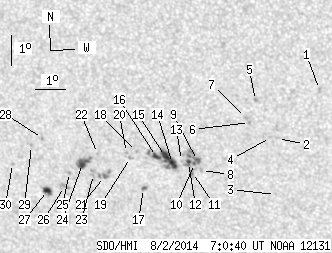

back to the solar disc SDO HMI 2014-08-02 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.08 | -16.28 | 244.49 | -8.99 | 158.25 | 0.4063 | 810.0 | 658.1 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -17.93 | 243.04 | -10.43 | 156.79 | 0.4390 | 602.0 | 458.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -19.81 | 242.85 | -10.62 | 158.11 | 0.4670 | 632.0 | 489.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.90 | 242.81 | -10.66 | 156.32 | 0.4400 | 629.0 | 469.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -16.68 | 242.40 | -11.07 | 154.26 | 0.4254 | 887.0 | 735.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -17.41 | 242.16 | -11.31 | 154.55 | 0.4374 | 1017.0 | 794.6 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -17.25 | 242.04 | -11.43 | 154.15 | 0.4359 | 829.0 | 643.9 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -19.05 | 240.47 | -13.00 | 153.08 | 0.4716 | -49.0 | 46.6 | |
| 1.54 | 16.48 | 0.86 | 9.23 | -18.72 | 240.36 | -13.11 | 152.55 | 0.4679 | 927.2 | 828.8 | |
| 0.63 | -9.00 | 0.36 | -9.00 | -18.82 | 240.26 | -13.22 | 152.46 | 0.4700 | 888.7 | 999999 | |
| 0.00 | 4.98 | 0.00 | 2.80 | -19.12 | 240.17 | -13.31 | 152.62 | 0.4748 | 626.0 | 497.4 | |
| 1.36 | -9.00 | 0.76 | -9.00 | -18.79 | 240.06 | -13.41 | 152.09 | 0.4710 | 947.5 | 999999 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -18.73 | 239.83 | -13.64 | 151.63 | 0.4719 | 803.0 | 678.5 | |
| 5.79 | 25.35 | 3.26 | 14.26 | -18.84 | 239.53 | -13.95 | 151.21 | 0.4755 | 960.7 | 592.2 | |
| 6.43 | -14.00 | 3.61 | -14.00 | -18.61 | 239.32 | -14.16 | 150.60 | 0.4741 | 1110.6 | 999999 | |
| 2.72 | -14.00 | 1.53 | -14.00 | -18.62 | 239.02 | -14.46 | 150.09 | 0.4765 | 877.1 | 999999 | |
| 0.81 | 2.54 | 0.46 | 1.44 | -19.71 | 238.48 | -14.99 | 150.38 | 0.4947 | -901.9 | -727.3 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.47 | 238.37 | -15.11 | 148.83 | 0.4796 | 673.0 | 550.9 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -18.67 | 238.15 | -15.33 | 148.70 | 0.4840 | -547.0 | -457.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -18.51 | 238.03 | -15.45 | 148.32 | 0.4828 | 624.0 | 383.8 | |
| 0.81 | 6.97 | 0.47 | 3.98 | -19.34 | 237.21 | -16.26 | 147.94 | 0.4999 | -1009.1 | -765.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -18.57 | 237.05 | -16.42 | 146.82 | 0.4915 | -736.0 | -629.3 | |
| 0.00 | 4.71 | 0.00 | 2.69 | -19.28 | 236.85 | -16.63 | 147.31 | 0.5021 | -695.0 | -677.7 | |
| 6.25 | 11.41 | 3.57 | 6.52 | -18.92 | 236.51 | -16.96 | 146.38 | 0.5004 | -984.8 | -826.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -19.24 | 236.04 | -17.43 | 146.03 | 0.5082 | -812.0 | -664.3 | |
| 0.00 | 4.44 | 0.00 | 2.56 | -19.72 | 235.82 | -17.66 | 146.25 | 0.5159 | -938.0 | -684.0 | |
| 4.35 | 6.43 | 2.52 | 3.73 | -19.87 | 235.22 | -18.25 | 145.55 | 0.5228 | -925.4 | -613.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -18.13 | 235.25 | -18.22 | 143.51 | 0.5017 | -773.0 | -665.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -18.37 | 234.85 | -18.62 | 143.23 | 0.5082 | -816.0 | -679.9 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -19.00 | 234.13 | -19.34 | 142.97 | 0.5219 | -535.0 | -417.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
