SDO HMI 2014-08-02 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.74 | 537.08 | 62.14 | 301.56 | -7.51 | 228.12 | -24.25 | 119.34 | 0.4673 | 304.1 | 274.5 | |
|
previous
or next observation for the same group /

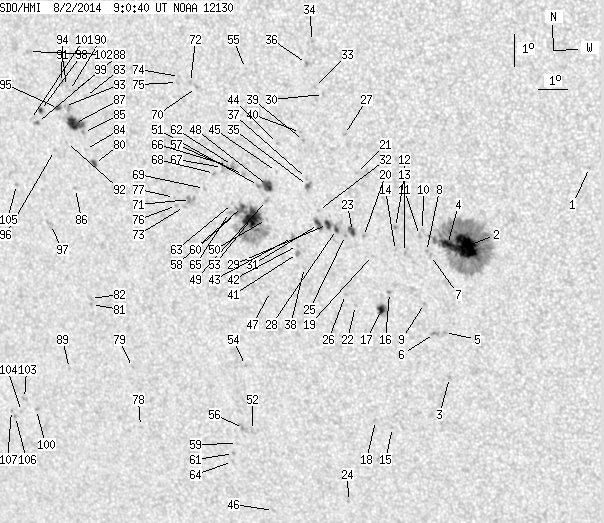

back to the solar disc SDO HMI 2014-08-02 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.26 | 236.95 | -15.43 | 125.54 | 0.3270 | -849.0 | -612.9 | |
| 37.94 | 229.16 | 20.54 | 124.08 | -7.84 | 232.87 | -19.51 | 124.94 | 0.4053 | 1291.8 | 477.1 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -12.01 | 232.07 | -20.31 | 131.53 | 0.4554 | -719.0 | -539.6 | |
| 8.60 | -2.00 | 4.67 | -2.00 | -7.80 | 232.28 | -20.10 | 124.05 | 0.4126 | 951.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -10.58 | 232.01 | -20.37 | 128.98 | 0.4419 | 892.0 | 709.5 | |
| 0.00 | 2.99 | 0.00 | 1.65 | -10.62 | 231.68 | -20.70 | 128.60 | 0.4464 | 834.0 | 721.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -8.16 | 231.70 | -20.68 | 124.02 | 0.4234 | 805.0 | 568.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -8.04 | 231.58 | -20.80 | 123.62 | 0.4240 | 779.0 | 723.6 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -9.68 | 231.41 | -20.97 | 126.54 | 0.4409 | -697.0 | -553.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.39 | 231.48 | -20.90 | 122.18 | 0.4197 | 662.0 | 499.8 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -7.55 | 231.37 | -21.00 | 122.37 | 0.4225 | 726.0 | 550.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.10 | 230.85 | -21.53 | 122.82 | 0.4341 | 705.0 | 621.6 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -7.33 | 230.59 | -21.78 | 120.98 | 0.4311 | 939.0 | 741.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -8.05 | 230.55 | -21.82 | 122.36 | 0.4376 | 736.0 | 610.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -13.69 | 230.00 | -22.38 | 131.51 | 0.4959 | -630.0 | -490.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.38 | 230.27 | -22.11 | 124.54 | 0.4526 | 833.0 | 714.9 | |
| 4.62 | 10.32 | 2.58 | 5.76 | -9.93 | 229.96 | -22.41 | 125.16 | 0.4613 | 1040.2 | 626.0 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -13.49 | 229.45 | -22.93 | 130.50 | 0.5002 | -727.0 | -581.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -8.24 | 229.78 | -22.60 | 121.81 | 0.4494 | 565.0 | 522.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.65 | 229.51 | -22.86 | 120.38 | 0.4482 | 898.0 | 746.7 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -5.69 | 229.38 | -23.00 | 116.32 | 0.4355 | 610.0 | 474.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -9.84 | 229.10 | -23.28 | 123.98 | 0.4715 | 616.0 | 496.0 | |
| 3.17 | 5.25 | 1.76 | 2.91 | -7.51 | 229.15 | -23.22 | 119.72 | 0.4520 | 1090.1 | 845.5 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -16.17 | 228.20 | -24.18 | 132.99 | 0.5398 | -636.0 | -529.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -7.64 | 228.91 | -23.47 | 119.72 | 0.4563 | 881.0 | 668.3 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -9.50 | 228.79 | -23.59 | 123.03 | 0.4727 | 676.0 | 600.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -4.50 | 229.03 | -23.35 | 113.48 | 0.4326 | -687.0 | -516.4 | |
| 1.45 | 12.68 | 0.81 | 7.06 | -7.47 | 228.62 | -23.76 | 119.07 | 0.4589 | 1008.3 | 563.8 | |
| 3.26 | -28.00 | 1.82 | -28.00 | -7.32 | 228.33 | -24.05 | 118.49 | 0.4618 | 937.6 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -3.29 | 228.37 | -24.01 | 110.31 | 0.4350 | -734.0 | -668.2 | |
| 3.35 | 6.61 | 1.87 | 3.70 | -7.34 | 228.02 | -24.35 | 118.21 | 0.4660 | 882.4 | 623.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.90 | 228.05 | -24.33 | 117.39 | 0.4625 | 806.0 | 660.3 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -3.06 | 228.07 | -24.31 | 109.57 | 0.4380 | -786.0 | -470.3 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -1.68 | 228.03 | -24.34 | 106.52 | 0.4316 | -887.0 | -769.2 | |
| 1.09 | 4.35 | 0.61 | 2.42 | -6.13 | 227.72 | -24.66 | 115.59 | 0.4618 | 940.5 | 736.9 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -2.36 | 227.82 | -24.56 | 107.87 | 0.4381 | -947.0 | -817.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -5.92 | 227.70 | -24.68 | 115.14 | 0.4607 | 759.0 | 601.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -8.71 | 227.46 | -24.92 | 120.18 | 0.4838 | 566.0 | 507.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.74 | 227.65 | -24.73 | 112.74 | 0.4539 | -667.0 | -575.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -4.50 | 227.56 | -24.82 | 112.17 | 0.4538 | -883.0 | -632.4 | |
| 0.00 | 2.72 | 0.00 | 1.54 | -8.28 | 227.25 | -25.13 | 119.20 | 0.4833 | 867.0 | 758.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -8.03 | 227.27 | -25.11 | 118.75 | 0.4812 | 765.0 | 620.2 | |
| 0.00 | 2.90 | 0.00 | 1.64 | -7.78 | 227.11 | -25.26 | 118.15 | 0.4815 | 877.0 | 701.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -4.87 | 226.76 | -25.61 | 112.26 | 0.4673 | 880.0 | 679.2 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -5.74 | 226.69 | -25.69 | 113.91 | 0.4737 | 653.0 | 576.1 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -16.59 | 225.50 | -26.87 | 130.61 | 0.5728 | -571.0 | -367.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -9.52 | 226.23 | -26.15 | 120.40 | 0.5059 | -636.0 | -354.9 | |
| 6.70 | 9.24 | 3.78 | 5.21 | -6.19 | 226.36 | -26.02 | 114.49 | 0.4811 | 981.3 | 744.0 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -6.66 | 226.30 | -26.08 | 115.32 | 0.4850 | 861.0 | 733.8 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -7.26 | 226.26 | -26.12 | 116.40 | 0.4894 | 814.0 | 706.7 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -6.21 | 226.05 | -26.33 | 114.26 | 0.4855 | 682.0 | 622.5 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -14.00 | 225.13 | -27.25 | 126.51 | 0.5549 | -654.0 | -537.4 | |
| 20.28 | 88.10 | 11.56 | 50.27 | -7.25 | 225.75 | -26.63 | 115.93 | 0.4964 | 1037.9 | 340.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -11.92 | 225.13 | -27.25 | 123.30 | 0.5381 | -891.0 | -735.7 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -2.60 | 225.75 | -26.63 | 106.96 | 0.4699 | -521.0 | -452.9 | |
| 0.00 | 5.70 | 0.00 | 3.40 | -13.95 | 224.81 | -27.56 | 126.13 | 0.5581 | -795.0 | -621.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -5.89 | 225.56 | -26.82 | 113.25 | 0.4905 | 744.0 | 550.6 | |
| 1.54 | -53.00 | 0.88 | -53.00 | -6.89 | 225.46 | -26.92 | 115.03 | 0.4979 | 764.9 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.45 | 224.53 | -27.84 | 126.59 | 0.5654 | -444.0 | -426.6 | |
| 0.36 | -53.00 | 0.21 | -53.00 | -7.12 | 225.21 | -27.17 | 115.23 | 0.5029 | 527.2 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -14.78 | 224.34 | -28.03 | 126.89 | 0.5703 | -838.0 | -748.1 | |
| 0.00 | 3.08 | 0.00 | 1.75 | -5.63 | 225.19 | -27.19 | 112.47 | 0.4940 | 667.0 | 627.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -6.81 | 225.12 | -27.25 | 114.60 | 0.5021 | 160.0 | 236.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -15.05 | 224.27 | -28.11 | 127.20 | 0.5733 | -639.0 | -406.8 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -7.10 | 225.00 | -27.38 | 115.02 | 0.5056 | -73.0 | -27.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -5.63 | 225.02 | -27.36 | 112.35 | 0.4965 | 552.0 | 574.8 | |
| 0.00 | 3.89 | 0.00 | 2.22 | -5.70 | 224.84 | -27.54 | 112.34 | 0.4993 | 651.0 | 526.2 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -5.90 | 224.56 | -27.82 | 112.50 | 0.5045 | 689.0 | 552.9 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -6.39 | 224.18 | -28.20 | 113.09 | 0.5125 | 694.0 | 554.6 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -3.27 | 224.05 | -28.33 | 107.19 | 0.4979 | -860.0 | -576.0 | |
| 0.00 | 4.07 | 0.00 | 2.36 | -6.76 | 223.67 | -28.71 | 113.36 | 0.5217 | 838.0 | 687.6 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -3.12 | 223.85 | -28.53 | 106.79 | 0.5002 | -679.0 | -565.3 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -6.99 | 223.44 | -28.94 | 113.60 | 0.5261 | 619.0 | 528.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -2.96 | 223.47 | -28.91 | 106.25 | 0.5049 | -523.0 | -427.7 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -3.15 | 223.39 | -28.99 | 106.56 | 0.5068 | -530.0 | -509.2 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -6.97 | 223.16 | -29.22 | 113.36 | 0.5298 | 569.0 | 446.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -6.72 | 223.11 | -29.27 | 112.89 | 0.5291 | 526.0 | 424.9 | |
| 0.00 | 1.45 | 0.00 | 0.90 | -14.08 | 221.08 | -31.30 | 122.96 | 0.6027 | -363.0 | -302.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -12.19 | 221.06 | -31.32 | 120.17 | 0.5899 | -640.0 | -552.5 | |
| 1.90 | 3.80 | 1.14 | 2.27 | -5.81 | 220.32 | -32.06 | 109.49 | 0.5623 | 747.2 | 544.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -10.25 | 219.80 | -32.58 | 116.30 | 0.5932 | -738.0 | -613.9 | |
| 0.00 | 2.17 | 0.00 | 1.33 | -10.07 | 219.79 | -32.59 | 116.00 | 0.5923 | -639.0 | -488.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -3.75 | 220.10 | -32.27 | 105.85 | 0.5560 | -736.0 | -573.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -5.39 | 220.02 | -32.36 | 108.61 | 0.5644 | 192.0 | 223.4 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -4.87 | 219.98 | -32.40 | 107.70 | 0.5626 | -744.0 | -699.2 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -6.63 | 219.57 | -32.81 | 110.40 | 0.5764 | 735.0 | 494.1 | |
| 12.86 | 22.91 | 7.71 | 13.74 | -4.61 | 219.66 | -32.71 | 107.09 | 0.5657 | -909.8 | -594.1 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -3.62 | 219.68 | -32.70 | 105.41 | 0.5614 | -851.0 | -593.7 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -12.35 | 218.71 | -33.67 | 118.65 | 0.6194 | -589.0 | -450.3 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -3.60 | 219.53 | -32.85 | 105.30 | 0.5634 | -888.0 | -670.6 | |
| 0.00 | 0.81 | 0.00 | 0.49 | -3.48 | 219.43 | -32.95 | 105.05 | 0.5643 | -787.0 | -663.6 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -5.21 | 219.34 | -33.04 | 107.93 | 0.5729 | 79.0 | 44.1 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -4.10 | 219.33 | -33.05 | 106.06 | 0.5682 | -747.0 | -673.2 | |
| 0.00 | 2.72 | 0.00 | 1.63 | -3.36 | 219.25 | -33.13 | 104.77 | 0.5664 | -668.0 | -609.6 | |
| 1.54 | 3.62 | 0.93 | 2.18 | -4.18 | 219.10 | -33.27 | 106.07 | 0.5716 | -697.4 | -556.3 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -5.49 | 218.88 | -33.50 | 108.14 | 0.5803 | 655.0 | 421.8 | |
| 0.00 | 4.62 | 0.00 | 2.84 | -7.81 | 218.55 | -33.83 | 111.68 | 0.5958 | 649.0 | 328.6 | |
| 1.54 | 3.08 | 0.94 | 1.87 | -4.27 | 218.44 | -33.94 | 105.91 | 0.5811 | -528.8 | -365.9 | |
| 0.54 | 2.63 | 0.33 | 1.60 | -4.65 | 218.31 | -34.07 | 106.47 | 0.5845 | -914.3 | -723.7 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -13.75 | 217.23 | -35.15 | 119.60 | 0.6454 | -722.0 | -633.5 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -4.57 | 218.05 | -34.33 | 106.22 | 0.5876 | -443.0 | -356.4 | |
| 0.00 | 2.81 | 0.00 | 1.70 | -2.48 | 218.07 | -34.31 | 102.74 | 0.5795 | -638.0 | -573.6 | |
| 0.00 | 2.17 | 0.00 | 1.41 | -13.42 | 216.82 | -35.56 | 118.87 | 0.6481 | -671.0 | -609.3 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -13.85 | 216.63 | -35.75 | 119.33 | 0.6529 | -603.0 | -468.0 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -6.63 | 217.39 | -34.99 | 109.17 | 0.6053 | -470.0 | -394.6 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -14.03 | 216.37 | -36.01 | 119.40 | 0.6570 | -578.0 | -504.3 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -13.84 | 216.24 | -36.13 | 119.06 | 0.6573 | -638.0 | -522.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
