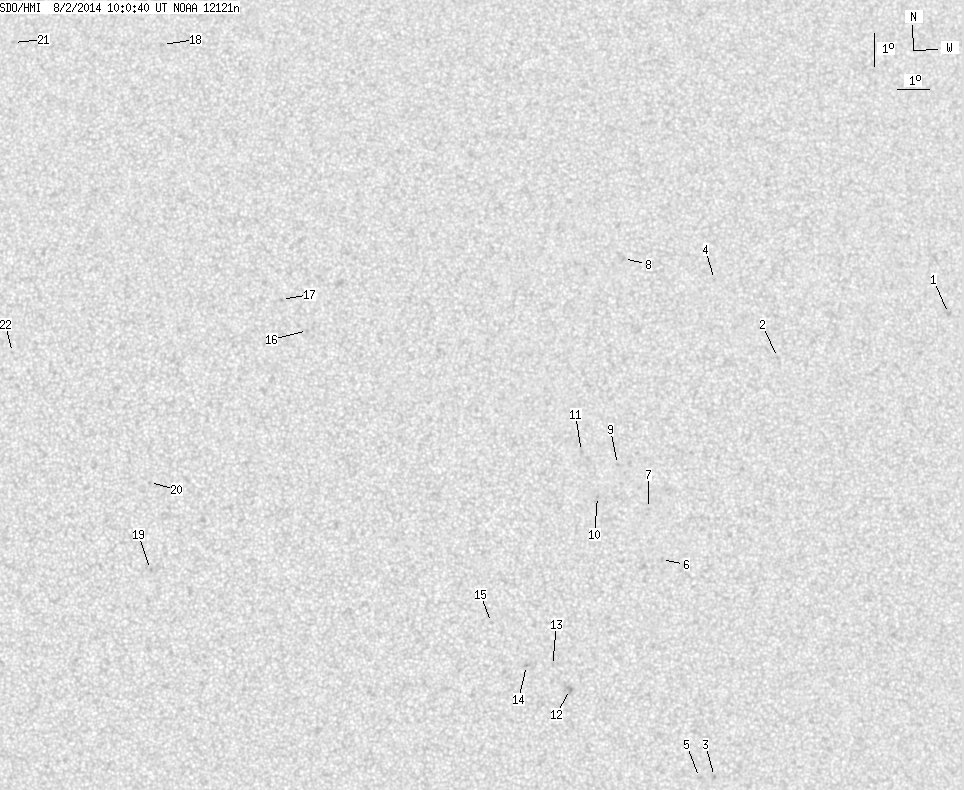

SDO HMI 2014-08-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 34.98 | 0.00 | 17.68 | 10.22 | 255.49 | 3.66 | 208.49 | 0.1855 | 612.0 | 471.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 1.52 | 14.53 | 269.39 | 17.56 | 297.99 | 0.3321 | -846.0 | -621.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.33 | 263.76 | 11.93 | 303.26 | 0.2417 | -784.0 | -537.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 0.59 | 261.47 | 9.64 | 241.62 | 0.1912 | 882.0 | 699.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.77 | 261.87 | 10.04 | 315.95 | 0.2424 | -796.0 | -621.0 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 0.57 | 261.01 | 9.18 | 240.29 | 0.1844 | 780.0 | 701.1 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 7.23 | 259.91 | 8.08 | 280.08 | 0.1423 | 723.0 | 607.7 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 8.79 | 259.54 | 7.71 | 291.37 | 0.1430 | 741.0 | 551.8 | |
| 0.00 | 1.90 | 0.00 | 0.97 | 16.46 | 258.98 | 7.16 | 327.10 | 0.2209 | 734.0 | 634.9 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 10.14 | 258.60 | 6.78 | 302.94 | 0.1390 | 869.0 | 694.3 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.17 | 257.96 | 6.13 | 298.92 | 0.1211 | 902.0 | 695.3 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 10.55 | 257.49 | 5.66 | 310.26 | 0.1277 | 816.0 | 695.7 | |
| 0.00 | 4.26 | 0.00 | 2.12 | 3.31 | 257.03 | 5.20 | 243.98 | 0.1012 | 995.0 | 787.0 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 4.05 | 256.51 | 4.69 | 248.91 | 0.0877 | 796.0 | 539.1 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 4.05 | 255.72 | 3.89 | 245.11 | 0.0750 | 1049.0 | 834.8 | |
| 0.00 | 1.18 | 0.00 | 0.58 | 5.37 | 254.66 | 2.83 | 260.12 | 0.0501 | 834.0 | 550.9 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 14.29 | 248.97 | -2.86 | 18.26 | 0.1551 | 787.0 | 571.5 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 15.24 | 248.14 | -3.69 | 20.86 | 0.1753 | 929.0 | 751.7 | |
| 0.00 | 2.35 | 0.00 | 1.23 | 23.19 | 244.00 | -7.83 | 22.75 | 0.3252 | 818.0 | 596.7 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 6.95 | 244.20 | -7.63 | 81.46 | 0.1340 | 942.0 | 789.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.60 | 244.12 | -7.71 | 63.50 | 0.1486 | 714.0 | 499.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 23.17 | 238.99 | -12.84 | 34.28 | 0.3643 | 686.0 | 600.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.50 | 239.66 | -12.17 | 56.61 | 0.2466 | 893.0 | 647.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
