SDO HMI 2014-08-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.64 | 116.38 | 12.20 | 65.45 | -18.90 | 238.11 | -13.72 | 151.81 | 0.4753 | 59.4 | -62.5 | |
|
previous
or next observation for the same group /

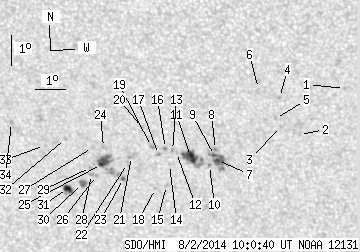

back to the solar disc SDO HMI 2014-08-02 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.54 | -16.36 | 244.51 | -7.32 | 162.05 | 0.3984 | 783.0 | 674.5 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -17.90 | 242.99 | -8.84 | 160.00 | 0.4294 | 678.0 | 544.6 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.64 | 242.39 | -9.44 | 158.54 | 0.4290 | 805.0 | 608.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.68 | 242.41 | -9.42 | 157.69 | 0.4149 | 954.0 | 783.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.38 | 242.24 | -9.59 | 157.99 | 0.4260 | 860.0 | 617.7 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -16.40 | 241.74 | -10.09 | 156.01 | 0.4148 | 530.0 | 537.6 | |
| 1.09 | 16.75 | 0.61 | 9.33 | -18.82 | 240.26 | -11.57 | 155.45 | 0.4588 | 1021.4 | 823.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.45 | 240.22 | -11.61 | 155.02 | 0.4539 | 1050.0 | 861.4 | |
| 1.09 | -7.00 | 0.60 | -7.00 | -18.65 | 240.17 | -11.66 | 155.13 | 0.4571 | 1105.6 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -18.99 | 239.98 | -11.84 | 155.11 | 0.4630 | 755.0 | 525.4 | |
| 10.32 | 22.27 | 5.76 | 12.44 | -18.70 | 239.38 | -12.45 | 153.72 | 0.4631 | 1013.0 | 648.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -18.58 | 238.93 | -12.90 | 152.78 | 0.4645 | 744.0 | 545.6 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -18.51 | 238.80 | -13.03 | 152.49 | 0.4645 | 814.0 | 639.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.99 | 238.67 | -13.16 | 152.73 | 0.4719 | 575.0 | 395.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -19.70 | 238.51 | -13.32 | 153.17 | 0.4826 | -699.0 | -622.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -18.45 | 238.58 | -13.25 | 152.02 | 0.4653 | 641.0 | 521.0 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -18.66 | 238.33 | -13.50 | 151.80 | 0.4699 | -825.0 | -610.8 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -19.81 | 238.13 | -13.70 | 152.64 | 0.4867 | -658.0 | -565.0 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -18.40 | 238.12 | -13.71 | 151.15 | 0.4679 | 700.0 | 569.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.77 | 237.87 | -13.95 | 150.02 | 0.4614 | 630.0 | 504.4 | |
| 0.00 | 3.08 | 0.00 | 1.73 | -18.75 | 237.43 | -14.40 | 150.34 | 0.4778 | -477.0 | -501.9 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -18.99 | 237.27 | -14.56 | 150.33 | 0.4821 | -829.0 | -702.5 | |
| 0.72 | 28.61 | 0.41 | 16.22 | -19.50 | 237.09 | -14.74 | 150.58 | 0.4901 | -902.1 | -788.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.47 | 236.52 | -15.31 | 148.51 | 0.4812 | -951.0 | -759.5 | |
| 1.90 | -23.00 | 1.08 | -23.00 | -19.04 | 236.40 | -15.43 | 148.95 | 0.4895 | -965.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -19.42 | 236.20 | -15.63 | 149.04 | 0.4959 | -622.0 | -496.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.48 | 236.16 | -15.67 | 147.91 | 0.4843 | -717.0 | -613.8 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -19.39 | 236.03 | -15.80 | 148.74 | 0.4969 | -827.0 | -618.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -19.16 | 236.02 | -15.81 | 148.47 | 0.4939 | -766.0 | -664.6 | |
| 2.17 | 4.98 | 1.24 | 2.85 | -19.70 | 235.70 | -16.13 | 148.56 | 0.5035 | -847.2 | -673.6 | |
| 4.35 | 7.88 | 2.50 | 4.53 | -19.89 | 235.17 | -16.66 | 147.95 | 0.5099 | -863.4 | -581.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -18.21 | 235.28 | -16.55 | 146.18 | 0.4881 | -764.0 | -573.4 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -18.46 | 234.55 | -17.28 | 145.35 | 0.4975 | -700.0 | -660.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -17.73 | 233.52 | -18.31 | 142.88 | 0.4978 | -896.0 | -677.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
