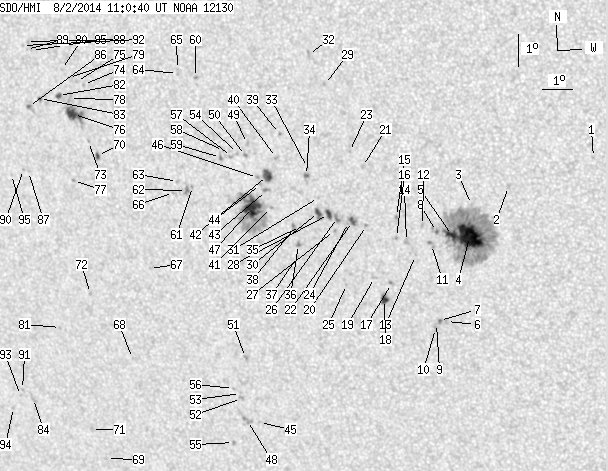

SDO HMI 2014-08-02 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.93 | 512.67 | 54.32 | 284.78 | -7.57 | 228.46 | -22.82 | 121.01 | 0.4485 | 377.4 | 313.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.29 | 236.99 | -14.29 | 127.75 | 0.3122 | -781.0 | -566.1 | |
| 0.00 | 2.17 | 0.00 | 1.15 | -6.26 | 234.26 | -17.02 | 125.25 | 0.3578 | 750.0 | 621.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.86 | 233.05 | -18.23 | 124.71 | 0.3795 | 409.0 | 302.9 | |
| 38.29 | 223.87 | 20.59 | 120.36 | -7.86 | 232.94 | -18.34 | 126.68 | 0.3903 | 1244.6 | 464.9 | |
| 7.06 | -4.00 | 3.81 | -4.00 | -7.85 | 232.39 | -18.89 | 125.84 | 0.3973 | 937.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -10.57 | 232.04 | -19.24 | 130.56 | 0.4282 | 744.0 | 725.4 | |
| 0.36 | 2.08 | 0.20 | 1.14 | -10.54 | 231.81 | -19.47 | 130.18 | 0.4307 | 811.0 | 724.3 | |
| 0.36 | 3.44 | 0.20 | 1.86 | -7.74 | 231.87 | -19.41 | 124.88 | 0.4030 | 829.0 | 658.4 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -10.64 | 231.70 | -19.58 | 130.21 | 0.4330 | 584.0 | 591.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -10.80 | 231.66 | -19.62 | 130.43 | 0.4351 | 806.0 | 587.4 | |
| 0.00 | 3.35 | 0.00 | 1.82 | -8.15 | 231.69 | -19.59 | 125.46 | 0.4092 | 761.0 | 715.5 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -7.57 | 231.43 | -19.85 | 123.91 | 0.4074 | 736.0 | 569.5 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -8.52 | 231.15 | -20.13 | 125.44 | 0.4195 | 651.0 | 526.6 | |
| 0.00 | 3.71 | 0.00 | 2.02 | -8.09 | 230.88 | -20.40 | 124.23 | 0.4192 | 762.0 | 616.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.32 | 230.59 | -20.69 | 122.30 | 0.4163 | 779.0 | 697.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.97 | 230.55 | -20.73 | 123.58 | 0.4224 | 813.0 | 683.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -9.43 | 230.30 | -20.98 | 126.05 | 0.4387 | 821.0 | 668.6 | |
| 3.98 | 6.52 | 2.20 | 3.61 | -9.94 | 230.03 | -21.25 | 126.66 | 0.4467 | 993.5 | 734.6 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -9.26 | 229.75 | -21.53 | 125.03 | 0.4442 | 760.0 | 607.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -7.63 | 229.58 | -21.70 | 121.70 | 0.4324 | 879.0 | 627.9 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -5.80 | 229.54 | -21.74 | 117.88 | 0.4186 | 906.0 | 682.4 | |
| 2.44 | 4.35 | 1.35 | 2.39 | -7.53 | 229.13 | -22.15 | 120.95 | 0.4377 | 1095.1 | 863.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -5.35 | 229.13 | -22.15 | 116.48 | 0.4211 | 812.0 | 623.5 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -7.56 | 228.99 | -22.29 | 120.86 | 0.4398 | 554.0 | 713.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.52 | 228.80 | -22.48 | 124.34 | 0.4586 | 649.0 | 535.6 | |
| 0.00 | 4.35 | 0.00 | 2.40 | -7.42 | 228.63 | -22.65 | 120.18 | 0.4435 | 727.0 | 772.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.83 | 228.51 | -22.77 | 120.84 | 0.4484 | 800.0 | 666.1 | |
| 3.17 | 4.53 | 1.75 | 2.50 | -7.34 | 228.34 | -22.94 | 119.69 | 0.4469 | 859.3 | 598.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -3.31 | 228.37 | -22.91 | 111.28 | 0.4188 | -775.0 | -630.4 | |
| 2.44 | 5.70 | 1.36 | 3.16 | -7.29 | 228.01 | -23.27 | 119.24 | 0.4510 | 846.2 | 711.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.82 | 228.03 | -23.25 | 118.34 | 0.4471 | 679.0 | 555.4 | |
| 0.00 | 3.17 | 0.00 | 1.73 | -2.40 | 227.86 | -23.42 | 108.83 | 0.4213 | -843.0 | -672.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -5.90 | 227.71 | -23.57 | 116.17 | 0.4450 | 594.0 | 529.5 | |
| 0.72 | 4.25 | 0.40 | 2.36 | -6.15 | 227.67 | -23.61 | 116.63 | 0.4474 | 923.6 | 676.9 | |
| 0.00 | 2.17 | 0.00 | 1.21 | -7.75 | 227.38 | -23.90 | 119.46 | 0.4630 | 733.0 | 572.8 | |
| 0.00 | 2.53 | 0.00 | 1.42 | -8.32 | 227.27 | -24.01 | 120.42 | 0.4687 | 868.0 | 759.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -8.70 | 227.21 | -24.07 | 121.05 | 0.4725 | 495.0 | 429.9 | |
| 0.00 | 3.53 | 0.00 | 1.98 | -7.79 | 227.17 | -24.11 | 119.32 | 0.4661 | 890.0 | 744.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -4.88 | 226.82 | -24.46 | 113.26 | 0.4509 | 679.0 | 579.9 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -5.63 | 226.68 | -24.60 | 114.66 | 0.4576 | 726.0 | 595.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -7.20 | 226.43 | -24.85 | 117.46 | 0.4718 | 842.0 | 651.7 | |
| 6.43 | 9.32 | 3.60 | 5.22 | -6.21 | 226.35 | -24.93 | 115.48 | 0.4660 | 984.0 | 747.9 | |
| 0.00 | 2.99 | 0.00 | 1.67 | -6.67 | 226.29 | -24.99 | 116.33 | 0.4700 | 917.0 | 799.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -6.50 | 226.10 | -25.18 | 115.81 | 0.4715 | 666.0 | 527.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.06 | 225.39 | -25.89 | 128.01 | 0.5395 | -705.0 | -536.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -6.28 | 226.01 | -25.27 | 115.32 | 0.4713 | 742.0 | 607.2 | |
| 18.20 | 88.17 | 10.27 | 49.82 | -7.23 | 225.79 | -25.49 | 116.91 | 0.4808 | 1026.5 | 398.3 | |
| 0.00 | 5.25 | 0.00 | 3.09 | -14.02 | 224.98 | -26.30 | 127.50 | 0.5439 | -847.0 | -645.2 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -5.24 | 225.72 | -25.56 | 113.04 | 0.4687 | 731.0 | 586.3 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -5.62 | 225.64 | -25.64 | 113.70 | 0.4723 | 800.0 | 664.3 | |
| 0.00 | 1.90 | 0.00 | 1.10 | -11.99 | 225.15 | -26.13 | 124.52 | 0.5250 | -861.0 | -772.1 | |
| 0.00 | 2.44 | 0.00 | 1.44 | -13.31 | 224.86 | -26.42 | 126.31 | 0.5394 | -763.0 | -651.3 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -13.15 | 224.84 | -26.44 | 126.04 | 0.5383 | -701.0 | -548.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -5.57 | 225.37 | -25.91 | 113.37 | 0.4757 | 577.0 | 499.8 | |
| 0.00 | 1.72 | 0.00 | 1.02 | -14.76 | 224.39 | -26.89 | 127.99 | 0.5570 | -820.0 | -652.5 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -13.00 | 224.61 | -26.67 | 125.58 | 0.5398 | -595.0 | -536.0 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -5.67 | 225.16 | -26.12 | 113.40 | 0.4793 | 847.0 | 657.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -5.49 | 224.89 | -26.39 | 112.85 | 0.4820 | 596.0 | 479.6 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -5.72 | 224.78 | -26.50 | 113.18 | 0.4849 | 725.0 | 574.7 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -3.28 | 224.03 | -27.25 | 107.89 | 0.4824 | -910.0 | -784.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -6.66 | 223.76 | -27.52 | 114.12 | 0.5048 | 650.0 | 584.7 | |
| 0.00 | 3.89 | 0.00 | 2.24 | -6.80 | 223.55 | -27.73 | 114.20 | 0.5086 | 830.0 | 692.8 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -6.53 | 223.25 | -28.03 | 113.48 | 0.5110 | 646.0 | 417.9 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -3.18 | 223.41 | -27.87 | 107.31 | 0.4909 | -731.0 | -657.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -3.06 | 223.41 | -27.87 | 107.07 | 0.4902 | -709.0 | -537.0 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -6.88 | 223.09 | -28.19 | 113.99 | 0.5154 | 451.0 | 456.4 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -9.32 | 222.05 | -29.23 | 117.33 | 0.5445 | -709.0 | -630.9 | |
| 0.00 | 0.54 | 0.00 | 0.33 | -12.22 | 221.12 | -30.16 | 121.16 | 0.5759 | -728.0 | -606.2 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -15.52 | 219.68 | -31.60 | 124.73 | 0.6166 | -557.0 | -472.7 | |
| 1.45 | 3.08 | 0.85 | 1.82 | -5.86 | 220.48 | -30.80 | 110.36 | 0.5454 | 568.8 | 462.7 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -14.60 | 219.28 | -32.00 | 123.12 | 0.6146 | -671.0 | -452.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.22 | 219.85 | -31.43 | 117.07 | 0.5786 | -811.0 | -706.1 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -5.45 | 220.18 | -31.10 | 109.45 | 0.5474 | 481.0 | 325.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -3.69 | 220.09 | -31.19 | 106.31 | 0.5405 | -689.0 | -626.8 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -3.61 | 219.85 | -31.43 | 106.04 | 0.5437 | -789.0 | -608.0 | |
| 9.96 | 20.64 | 5.90 | 12.22 | -4.64 | 219.69 | -31.59 | 107.76 | 0.5503 | -883.7 | -650.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -6.69 | 219.56 | -31.72 | 111.17 | 0.5621 | 673.0 | 505.3 | |
| 0.00 | 3.89 | 0.00 | 2.31 | -4.15 | 219.57 | -31.71 | 106.84 | 0.5498 | -826.0 | -670.2 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -3.50 | 219.56 | -31.72 | 105.70 | 0.5472 | -739.0 | -630.9 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -3.27 | 219.32 | -31.96 | 105.17 | 0.5496 | -758.0 | -653.3 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -11.37 | 218.61 | -32.67 | 117.91 | 0.6011 | -460.0 | -383.5 | |
| 1.63 | 2.99 | 0.97 | 1.78 | -4.08 | 219.18 | -32.10 | 106.51 | 0.5550 | -719.9 | -558.8 | |
| 0.72 | 1.90 | 0.43 | 1.14 | -4.21 | 218.48 | -32.80 | 106.37 | 0.5652 | -720.8 | -581.7 | |
| 0.00 | 3.80 | 0.00 | 2.43 | -13.71 | 217.25 | -34.03 | 120.33 | 0.6322 | -645.0 | -496.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -2.74 | 218.25 | -33.03 | 103.75 | 0.5626 | -803.0 | -667.3 | |
| 0.72 | 3.80 | 0.44 | 2.29 | -4.48 | 218.07 | -33.21 | 106.61 | 0.5720 | -668.0 | -599.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -6.50 | 217.94 | -33.34 | 109.88 | 0.5829 | -681.0 | -534.7 | |
| 0.00 | 0.72 | 0.00 | 0.43 | -2.47 | 218.08 | -33.20 | 103.21 | 0.5641 | -651.0 | -624.0 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -2.72 | 218.07 | -33.21 | 103.63 | 0.5651 | -582.0 | -492.7 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -6.45 | 217.76 | -33.52 | 109.69 | 0.5850 | -683.0 | -577.3 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -13.45 | 216.87 | -34.40 | 119.69 | 0.6349 | -801.0 | -628.9 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -2.61 | 217.93 | -33.35 | 103.37 | 0.5666 | -549.0 | -467.9 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -13.65 | 216.77 | -34.51 | 119.89 | 0.6374 | -517.0 | -399.5 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -14.05 | 216.43 | -34.85 | 120.22 | 0.6438 | -540.0 | -431.0 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -6.63 | 217.30 | -33.98 | 109.73 | 0.5920 | -552.0 | -429.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
