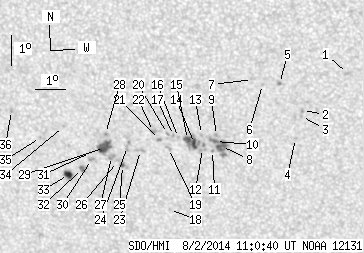

SDO HMI 2014-08-02 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.89 | 112.44 | 16.25 | 62.97 | -18.80 | 238.47 | -12.81 | 153.36 | 0.4676 | 71.9 | 116.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 1.51 | -16.35 | 244.56 | -6.72 | 163.44 | 0.3954 | 787.0 | 634.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -17.59 | 243.07 | -8.21 | 161.07 | 0.4215 | 846.0 | 731.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -17.79 | 243.03 | -8.25 | 161.15 | 0.4247 | 647.0 | 487.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.53 | 242.80 | -8.48 | 161.24 | 0.4368 | 802.0 | 687.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -16.71 | 242.37 | -8.91 | 158.81 | 0.4121 | 897.0 | 751.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.75 | 241.82 | -9.46 | 157.67 | 0.4160 | 722.0 | 542.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -16.59 | 241.51 | -9.77 | 156.86 | 0.4156 | 518.0 | 417.1 | |
| 5.43 | 17.38 | 3.02 | 9.66 | -18.83 | 240.37 | -10.91 | 156.70 | 0.4549 | 989.7 | 775.9 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -18.47 | 240.23 | -11.05 | 156.10 | 0.4506 | 1009.0 | 830.1 | |
| 0.91 | -8.00 | 0.50 | -8.00 | -18.67 | 240.18 | -11.10 | 156.20 | 0.4538 | 1086.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -18.97 | 240.06 | -11.22 | 156.26 | 0.4588 | 650.0 | 564.8 | |
| 0.00 | 5.16 | 0.00 | 2.88 | -18.91 | 239.74 | -11.54 | 155.60 | 0.4600 | 566.0 | 643.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -18.45 | 239.74 | -11.54 | 155.15 | 0.4534 | 781.0 | 646.4 | |
| 3.53 | 16.02 | 1.97 | 8.93 | -18.75 | 239.49 | -11.79 | 154.97 | 0.4594 | 1042.1 | 762.3 | |
| 3.26 | -14.00 | 1.82 | -14.00 | -18.62 | 239.27 | -12.01 | 154.44 | 0.4590 | 992.7 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.56 | 238.98 | -12.30 | 153.84 | 0.4601 | 573.0 | 445.6 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.50 | 238.82 | -12.46 | 153.49 | 0.4604 | 775.0 | 582.2 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.00 | 238.48 | -12.80 | 155.29 | 0.4969 | 642.0 | 442.3 | |
| 0.00 | 2.26 | 0.00 | 1.27 | -18.94 | 238.62 | -12.66 | 153.57 | 0.4678 | 575.0 | 409.4 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.44 | 238.62 | -12.66 | 153.07 | 0.4608 | 594.0 | 489.5 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -18.64 | 238.34 | -12.94 | 152.78 | 0.4656 | -642.0 | -546.1 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -18.38 | 238.17 | -13.11 | 152.19 | 0.4633 | 707.0 | 626.4 | |
| 0.00 | 3.80 | 0.00 | 2.14 | -19.03 | 237.68 | -13.60 | 152.02 | 0.4755 | -234.0 | -217.1 | |
| 0.00 | 4.16 | 0.00 | 2.34 | -18.90 | 237.26 | -14.02 | 151.16 | 0.4769 | -859.0 | -717.0 | |
| 1.00 | 3.62 | 0.56 | 2.05 | -19.55 | 237.04 | -14.24 | 151.46 | 0.4871 | -816.7 | -548.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -19.42 | 236.89 | -14.39 | 151.06 | 0.4865 | -702.0 | -646.1 | |
| 0.00 | 4.16 | 0.00 | 2.36 | -19.25 | 236.70 | -14.58 | 150.58 | 0.4857 | -817.0 | -744.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -18.49 | 236.57 | -14.71 | 149.52 | 0.4767 | -896.0 | -846.8 | |
| 9.14 | 14.67 | 5.17 | 8.29 | -18.96 | 236.50 | -14.78 | 149.92 | 0.4834 | -1005.1 | -769.6 | |
| 0.00 | 2.53 | 0.00 | 1.44 | -19.37 | 236.02 | -15.26 | 149.59 | 0.4924 | -748.0 | -600.4 | |
| 0.00 | 0.63 | 0.00 | 0.36 | -19.14 | 236.01 | -15.27 | 149.32 | 0.4895 | -806.0 | -651.6 | |
| 1.27 | 3.80 | 0.72 | 2.17 | -19.68 | 235.69 | -15.59 | 149.39 | 0.4990 | -847.4 | -723.2 | |
| 4.35 | 5.88 | 2.49 | 3.37 | -19.90 | 235.20 | -16.08 | 148.85 | 0.5056 | -849.4 | -611.3 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -18.29 | 235.19 | -16.09 | 147.02 | 0.4853 | -709.0 | -572.2 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -18.68 | 234.38 | -16.90 | 146.20 | 0.4969 | -659.0 | -584.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -17.81 | 233.50 | -17.78 | 143.78 | 0.4940 | -849.0 | -802.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
