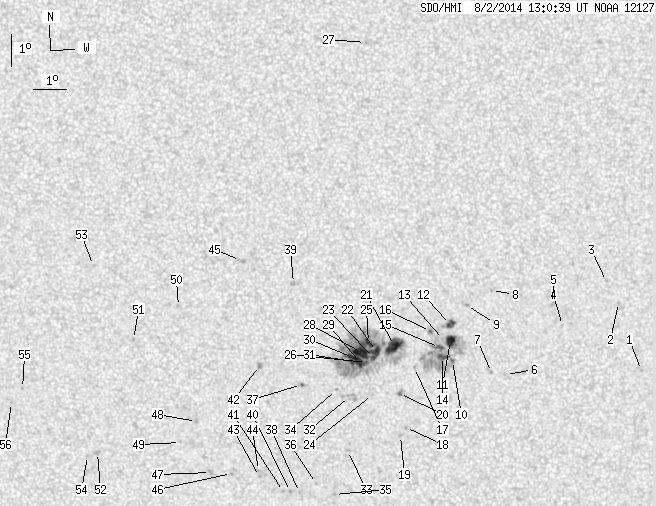

SDO HMI 2014-08-02 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.48 | 382.25 | 38.94 | 194.97 | -7.61 | 249.55 | -0.63 | 177.64 | 0.2373 | 555.4 | 369.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 13:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.11 | 257.57 | 7.40 | 207.90 | 0.2735 | 841.0 | 637.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.97 | 256.83 | 6.65 | 209.40 | 0.2358 | 689.0 | 545.6 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -5.32 | 256.46 | 6.28 | 209.39 | 0.2229 | 765.0 | 565.4 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -6.67 | 255.12 | 4.94 | 201.54 | 0.2340 | 830.0 | 550.3 | |
| 0.00 | 2.62 | 0.00 | 1.33 | -5.98 | 254.80 | 4.63 | 201.37 | 0.2211 | 795.0 | 760.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.19 | 253.38 | 3.20 | 192.82 | 0.2500 | -597.0 | -358.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.12 | 252.95 | 2.77 | 191.19 | 0.2474 | 970.0 | 724.5 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -5.56 | 252.93 | 2.76 | 193.58 | 0.2047 | 901.0 | 658.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.02 | 252.17 | 1.99 | 189.52 | 0.2098 | 957.0 | 811.1 | |
| 0.63 | 61.18 | 0.32 | 31.18 | -7.74 | 251.75 | 1.57 | 186.57 | 0.2378 | 618.9 | 337.1 | |
| 8.24 | 26.16 | 4.19 | 13.31 | -7.11 | 251.68 | 1.50 | 186.62 | 0.2271 | 1210.0 | 410.6 | |
| 4.16 | 6.88 | 2.11 | 3.49 | -6.61 | 251.68 | 1.50 | 186.88 | 0.2186 | 1241.0 | 875.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -7.08 | 251.47 | 1.29 | 185.69 | 0.2262 | 768.0 | 853.1 | |
| 4.62 | -10.00 | 2.35 | -10.00 | -7.61 | 251.44 | 1.26 | 185.34 | 0.2351 | 821.7 | 999999 | |
| 2.17 | -10.00 | 1.11 | -10.00 | -7.33 | 251.35 | 1.17 | 185.06 | 0.2302 | 1024.0 | 999999 | |
| 0.54 | 2.08 | 0.28 | 1.06 | -6.83 | 251.07 | 0.89 | 184.02 | 0.2213 | 1075.5 | 932.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -7.95 | 250.58 | 0.40 | 181.66 | 0.2401 | 596.0 | 465.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.84 | 250.30 | 0.12 | 180.45 | 0.2720 | -793.0 | -764.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -10.09 | 250.15 | -0.03 | 179.88 | 0.2762 | -794.0 | -645.5 | |
| 0.45 | 3.08 | 0.23 | 1.58 | -8.77 | 250.12 | -0.06 | 179.76 | 0.2538 | 850.8 | 762.3 | |
| 15.93 | 219.93 | 8.10 | 112.02 | -7.26 | 249.97 | -0.21 | 179.07 | 0.2282 | 1178.9 | 491.7 | |
| 6.24 | -21.00 | 3.18 | -21.00 | -7.45 | 249.41 | -0.77 | 176.71 | 0.2318 | 1244.6 | 999999 | |
| 1.90 | -21.00 | 0.97 | -21.00 | -7.64 | 249.32 | -0.86 | 176.36 | 0.2351 | 1022.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.80 | 249.29 | -0.89 | 176.52 | 0.2548 | 745.0 | 593.3 | |
| 4.53 | -21.00 | 2.30 | -21.00 | -7.17 | 249.17 | -1.01 | 175.57 | 0.2273 | 1265.8 | 999999 | |
| 0.27 | -21.00 | 0.14 | -21.00 | -7.80 | 249.10 | -1.07 | 175.51 | 0.2380 | 1031.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 2.06 | 249.10 | -1.08 | 164.11 | 0.0693 | 822.0 | 707.2 | |
| 12.04 | -21.00 | 6.13 | -21.00 | -7.48 | 248.95 | -1.23 | 174.75 | 0.2329 | 1427.1 | 999999 | |
| 4.53 | -21.00 | 2.31 | -21.00 | -7.80 | 248.92 | -1.26 | 174.74 | 0.2383 | 1042.6 | 999999 | |
| 6.70 | -21.00 | 3.41 | -21.00 | -7.67 | 248.74 | -1.44 | 173.92 | 0.2364 | 1137.5 | 999999 | |
| 3.17 | -21.00 | 1.62 | -21.00 | -7.76 | 248.68 | -1.50 | 173.71 | 0.2381 | 1021.3 | 999999 | |
| 0.00 | 6.34 | 0.00 | 3.25 | -8.86 | 248.58 | -1.60 | 173.80 | 0.2569 | 719.0 | 624.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.57 | 248.50 | -1.67 | 174.21 | 0.2856 | -863.0 | -600.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -8.64 | 248.18 | -2.00 | 172.16 | 0.2540 | 739.0 | 581.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.97 | 248.09 | -2.09 | 173.36 | 0.3097 | -833.0 | -600.7 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.62 | 247.53 | -2.64 | 171.45 | 0.3051 | -906.0 | -673.9 | |
| 0.36 | 1.54 | 0.19 | 0.79 | -8.49 | 247.10 | -3.08 | 167.91 | 0.2546 | 870.5 | 810.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -11.91 | 247.00 | -3.18 | 169.93 | 0.3113 | -935.0 | -777.2 | |
| 0.00 | 2.62 | 0.00 | 1.33 | -5.34 | 246.88 | -3.30 | 163.57 | 0.2034 | 901.0 | 743.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.88 | 246.72 | -3.46 | 169.04 | 0.3117 | -889.0 | -780.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.88 | 246.50 | -3.67 | 168.37 | 0.3124 | -744.0 | -630.0 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -7.90 | 245.81 | -4.36 | 162.41 | 0.2505 | 1119.0 | 848.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.41 | 245.76 | -4.41 | 165.73 | 0.3075 | -767.0 | -612.0 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -11.22 | 245.74 | -4.44 | 165.49 | 0.3045 | -760.0 | -621.8 | |
| 0.00 | 3.44 | 0.00 | 1.74 | -4.64 | 245.26 | -4.91 | 154.87 | 0.2019 | 547.0 | 580.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -11.32 | 244.89 | -5.28 | 162.98 | 0.3099 | -790.0 | -671.7 | |
| 0.00 | 2.62 | 0.00 | 1.37 | -11.29 | 244.24 | -5.94 | 160.99 | 0.3129 | -865.0 | -782.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.68 | 243.84 | -6.34 | 157.85 | 0.2900 | -877.0 | -777.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.35 | 243.33 | -6.85 | 157.16 | 0.3036 | -791.0 | -678.8 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -6.08 | 243.34 | -6.83 | 150.17 | 0.2389 | -823.0 | -635.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.13 | 241.94 | -8.24 | 147.57 | 0.2664 | -830.0 | -612.1 | |
| 0.00 | 2.90 | 0.00 | 1.52 | -10.70 | 240.72 | -9.46 | 150.37 | 0.3280 | -944.0 | -630.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -4.85 | 240.74 | -9.44 | 138.47 | 0.2476 | -834.0 | -641.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -10.80 | 240.40 | -9.77 | 149.71 | 0.3320 | -772.0 | -658.5 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -8.72 | 238.43 | -11.75 | 141.15 | 0.3222 | -823.0 | -692.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.17 | 238.07 | -12.11 | 141.17 | 0.3317 | -714.0 | -597.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
