SDO HMI 2014-08-02 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.68 | 522.82 | 56.91 | 287.17 | -7.65 | 228.43 | -21.20 | 123.21 | 0.4281 | 408.5 | 291.9 | |
|
previous
or next observation for the same group /

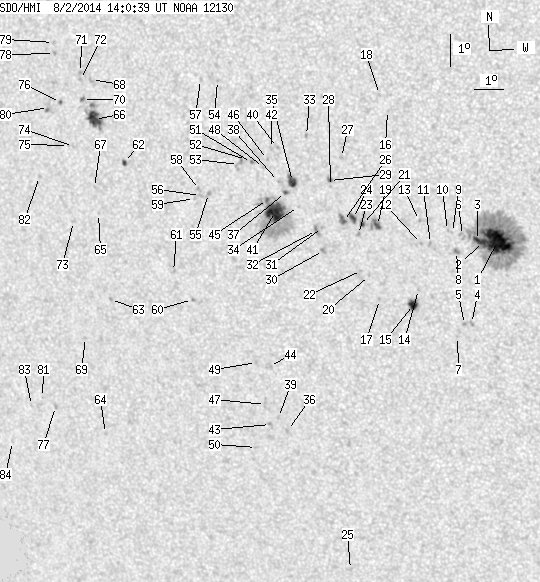

back to the solar disc SDO HMI 2014-08-02 14:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.47 | 232.84 | 19.42 | 123.98 | -7.90 | 233.03 | -16.60 | 129.57 | 0.3686 | 1247.3 | 460.7 | |
| 3.89 | -1.00 | 2.08 | -1.00 | -7.91 | 232.58 | -17.05 | 128.84 | 0.3744 | 898.4 | 999999 | |
| 1.72 | -1.00 | 0.92 | -1.00 | -7.89 | 232.39 | -17.24 | 128.47 | 0.3765 | 898.2 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.28 | -10.51 | 232.06 | -17.57 | 133.06 | 0.4079 | 950.0 | 703.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -10.55 | 231.83 | -17.80 | 132.76 | 0.4110 | 781.0 | 706.1 | |
| 0.00 | 3.98 | 0.00 | 2.13 | -7.75 | 231.91 | -17.72 | 127.41 | 0.3812 | 553.0 | 617.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.94 | 231.57 | -18.05 | 133.05 | 0.4181 | 504.0 | 450.2 | |
| 0.00 | 2.81 | 0.00 | 1.51 | -8.25 | 231.69 | -17.93 | 128.12 | 0.3890 | 1021.0 | 865.8 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -7.66 | 231.59 | -18.03 | 126.74 | 0.3845 | 547.0 | 403.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -7.60 | 231.43 | -18.19 | 126.37 | 0.3860 | 763.0 | 590.3 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -8.03 | 230.86 | -18.76 | 126.40 | 0.3974 | 904.0 | 750.3 | |
| 0.00 | 0.72 | 0.00 | 0.39 | -8.04 | 230.57 | -19.06 | 125.99 | 0.4013 | 782.0 | 680.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -7.32 | 230.54 | -19.09 | 124.46 | 0.3951 | 777.0 | 609.1 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -9.49 | 230.39 | -19.24 | 128.59 | 0.4174 | 691.0 | 625.7 | |
| 6.24 | 8.60 | 3.41 | 4.70 | -9.97 | 230.20 | -19.43 | 129.20 | 0.4245 | 949.7 | 630.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -3.94 | 229.62 | -20.00 | 115.69 | 0.3803 | -687.0 | -627.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -9.85 | 229.09 | -20.54 | 127.43 | 0.4371 | 707.0 | 593.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -3.45 | 229.38 | -20.25 | 114.26 | 0.3806 | -527.0 | -451.6 | |
| 2.44 | 9.23 | 1.33 | 5.02 | -7.52 | 229.16 | -20.47 | 123.01 | 0.4151 | 1069.7 | 751.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -9.11 | 228.81 | -20.82 | 125.66 | 0.4337 | 656.0 | 636.3 | |
| 1.18 | 5.88 | 0.64 | 3.21 | -7.51 | 228.67 | -20.96 | 122.36 | 0.4216 | 1001.2 | 519.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -8.96 | 228.55 | -21.08 | 125.05 | 0.4357 | 427.0 | 342.5 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -7.83 | 228.52 | -21.11 | 122.81 | 0.4263 | 753.0 | 553.2 | |
| 2.62 | 4.89 | 1.43 | 2.67 | -7.33 | 228.38 | -21.25 | 121.65 | 0.4240 | 943.0 | 724.4 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -18.67 | 227.20 | -22.42 | 138.47 | 0.5471 | -143.0 | -157.1 | |
| 1.18 | 5.79 | 0.64 | 3.17 | -7.44 | 228.04 | -21.58 | 121.45 | 0.4293 | 865.9 | 702.0 | |
| 0.00 | 1.99 | 0.00 | 1.08 | -5.45 | 228.07 | -21.55 | 117.34 | 0.4135 | 591.0 | 344.9 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -6.36 | 227.67 | -21.96 | 118.83 | 0.4259 | 749.0 | 588.7 | |
| 0.90 | 3.26 | 0.49 | 1.78 | -6.18 | 227.64 | -21.98 | 118.41 | 0.4249 | 928.9 | 732.0 | |
| 0.00 | 2.71 | 0.00 | 1.50 | -8.38 | 227.33 | -22.30 | 122.43 | 0.4466 | 918.0 | 767.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -7.66 | 227.34 | -22.29 | 121.05 | 0.4406 | 827.0 | 697.1 | |
| 0.00 | 3.98 | 0.00 | 2.20 | -7.76 | 227.13 | -22.49 | 121.01 | 0.4441 | 954.0 | 747.6 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -4.81 | 226.94 | -22.69 | 114.78 | 0.4251 | 573.0 | 480.1 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -7.03 | 226.57 | -23.05 | 118.97 | 0.4460 | 759.0 | 611.7 | |
| 6.06 | 8.51 | 3.35 | 4.70 | -6.26 | 226.41 | -23.21 | 117.26 | 0.4425 | 997.7 | 733.5 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -14.17 | 225.60 | -24.02 | 130.25 | 0.5192 | -805.0 | -650.0 | |
| 0.90 | 1.81 | 0.50 | 1.00 | -6.61 | 226.16 | -23.46 | 117.70 | 0.4486 | 938.1 | 795.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -6.28 | 225.95 | -23.68 | 116.82 | 0.4492 | 677.0 | 512.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -13.76 | 225.34 | -24.28 | 129.32 | 0.5184 | -734.0 | -629.7 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -5.22 | 225.96 | -23.67 | 114.69 | 0.4418 | 723.0 | 577.1 | |
| 23.71 | 93.93 | 13.20 | 52.36 | -7.22 | 225.79 | -23.83 | 118.51 | 0.4581 | 990.7 | 303.2 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -5.26 | 225.76 | -23.87 | 114.58 | 0.4449 | 727.0 | 545.3 | |
| 0.00 | 2.81 | 0.00 | 1.63 | -14.00 | 225.04 | -24.59 | 129.34 | 0.5241 | -752.0 | -586.2 | |
| 0.00 | 4.52 | 0.00 | 2.59 | -12.13 | 225.21 | -24.42 | 126.59 | 0.5054 | -955.0 | -560.0 | |
| 0.90 | -41.00 | 0.50 | -41.00 | -6.85 | 225.55 | -24.08 | 117.56 | 0.4588 | 824.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -5.61 | 225.61 | -24.02 | 115.15 | 0.4493 | 759.0 | 608.6 | |
| 0.00 | 4.80 | 0.00 | 2.78 | -13.36 | 224.94 | -24.69 | 128.25 | 0.5194 | -616.0 | -568.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -5.86 | 225.46 | -24.16 | 115.52 | 0.4531 | 506.0 | 495.7 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -12.02 | 224.77 | -24.85 | 125.94 | 0.5097 | -720.0 | -595.7 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -14.77 | 224.46 | -25.17 | 129.85 | 0.5376 | -765.0 | -538.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -5.72 | 225.07 | -24.56 | 114.87 | 0.4577 | 732.0 | 664.5 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -5.64 | 224.90 | -24.72 | 114.55 | 0.4595 | 532.0 | 469.8 | |
| 0.00 | 5.61 | 0.00 | 3.13 | -5.80 | 224.62 | -25.00 | 114.63 | 0.4645 | 457.0 | 523.0 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -3.23 | 224.02 | -25.61 | 108.95 | 0.4582 | -784.0 | -641.2 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -6.75 | 223.55 | -26.07 | 115.50 | 0.4855 | 815.0 | 701.6 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -6.83 | 223.28 | -26.35 | 115.40 | 0.4898 | 596.0 | 504.4 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -3.23 | 223.44 | -26.19 | 108.52 | 0.4666 | -760.0 | -581.3 | |
| 0.00 | 2.26 | 0.00 | 1.28 | -6.64 | 223.25 | -26.37 | 115.03 | 0.4889 | 568.0 | 577.0 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -6.93 | 223.06 | -26.56 | 115.41 | 0.4934 | 532.0 | 413.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -10.11 | 222.75 | -26.88 | 120.72 | 0.5197 | -660.0 | -655.4 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -9.26 | 222.17 | -27.46 | 118.74 | 0.5211 | -719.0 | -609.1 | |
| 1.45 | 2.81 | 0.84 | 1.62 | -5.92 | 220.70 | -28.92 | 111.72 | 0.5199 | 574.2 | 525.5 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -10.26 | 219.85 | -29.77 | 118.42 | 0.5578 | -830.0 | -638.1 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -14.58 | 219.11 | -30.52 | 124.33 | 0.5974 | -560.0 | -430.1 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -7.56 | 219.67 | -29.95 | 113.84 | 0.5432 | -656.0 | -472.0 | |
| 12.58 | 27.96 | 7.32 | 16.27 | -4.64 | 219.72 | -29.91 | 108.76 | 0.5269 | -891.7 | -587.4 | |
| 0.00 | 0.81 | 0.00 | 0.48 | -6.76 | 219.59 | -30.04 | 112.41 | 0.5397 | 689.0 | 499.7 | |
| 0.00 | 2.26 | 0.00 | 1.31 | -3.41 | 219.66 | -29.96 | 106.49 | 0.5220 | -517.0 | -644.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -11.52 | 218.81 | -30.82 | 119.55 | 0.5793 | -451.0 | -438.9 | |
| 0.81 | 2.53 | 0.47 | 1.48 | -4.04 | 219.32 | -30.31 | 107.45 | 0.5297 | -766.0 | -581.1 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -3.21 | 219.28 | -30.34 | 105.92 | 0.5266 | -752.0 | -645.8 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -3.43 | 219.27 | -30.35 | 106.31 | 0.5276 | -627.0 | -497.4 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -7.86 | 218.76 | -30.87 | 113.69 | 0.5572 | 687.0 | 583.2 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -5.52 | 218.93 | -30.70 | 109.82 | 0.5423 | 594.0 | 504.5 | |
| 0.00 | 0.90 | 0.00 | 0.53 | -5.50 | 218.75 | -30.88 | 109.67 | 0.5446 | 528.0 | 431.7 | |
| 0.63 | 1.36 | 0.37 | 0.80 | -4.18 | 218.53 | -31.09 | 107.24 | 0.5414 | -661.1 | -525.8 | |
| 0.00 | 2.26 | 0.00 | 1.41 | -13.80 | 217.39 | -32.24 | 121.81 | 0.6118 | -764.0 | -627.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -2.67 | 218.38 | -31.25 | 104.47 | 0.5373 | -741.0 | -679.4 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -2.34 | 218.35 | -31.28 | 103.85 | 0.5363 | -709.0 | -605.5 | |
| 0.00 | 3.35 | 0.00 | 1.98 | -4.35 | 218.09 | -31.53 | 107.30 | 0.5483 | -504.0 | -431.9 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -13.54 | 216.95 | -32.68 | 121.09 | 0.6152 | -761.0 | -738.7 | |
| 0.00 | 1.63 | 0.00 | 0.98 | -6.52 | 217.64 | -31.99 | 110.72 | 0.5648 | -786.0 | -577.8 | |
| 0.00 | 0.90 | 0.00 | 0.57 | -13.82 | 216.49 | -33.14 | 121.15 | 0.6224 | -429.0 | -388.5 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -15.04 | 215.56 | -34.07 | 122.14 | 0.6412 | -484.0 | -373.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
