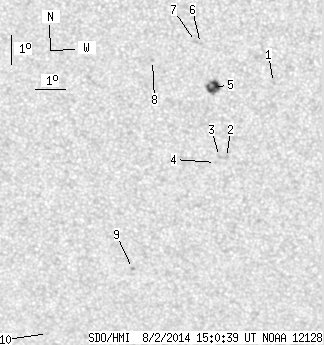

SDO HMI 2014-08-02 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.04 | 25.71 | 5.55 | 14.33 | -21.27 | 248.48 | -0.59 | 178.93 | 0.4581 | 609.5 | 457.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.28 | 250.81 | 1.74 | 183.70 | 0.4435 | 694.0 | 570.3 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -22.85 | 249.29 | 0.22 | 180.41 | 0.4826 | 671.0 | 656.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -22.82 | 249.06 | -0.02 | 179.97 | 0.4820 | 727.0 | 568.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -23.03 | 248.93 | -0.15 | 179.72 | 0.4852 | 645.0 | 534.0 | |
| 10.04 | 14.57 | 5.55 | 8.05 | -20.45 | 248.87 | -0.21 | 179.56 | 0.4452 | 961.8 | 755.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.96 | 248.45 | -0.62 | 178.60 | 0.4219 | 707.0 | 611.4 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -18.90 | 248.29 | -0.78 | 178.23 | 0.4209 | 581.0 | 513.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -19.54 | 246.90 | -2.17 | 175.24 | 0.4323 | 879.0 | 635.4 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -26.79 | 246.09 | -2.99 | 175.07 | 0.5437 | -778.0 | -668.9 | |
| 0.00 | 0.81 | 0.00 | 0.50 | -29.20 | 243.04 | -6.03 | 170.92 | 0.5836 | -596.0 | -515.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
