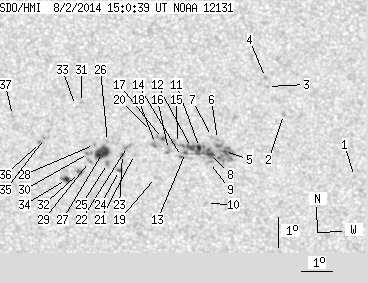

SDO HMI 2014-08-02 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.59 | 142.73 | 15.38 | 79.27 | -18.84 | 238.39 | -10.68 | 157.27 | 0.4545 | -149.3 | 179.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 15:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.65 | 244.63 | -4.44 | 170.39 | 0.4385 | 694.0 | 541.8 | |
| 0.00 | 2.17 | 0.00 | 1.18 | -17.60 | 242.41 | -6.66 | 164.46 | 0.4144 | 818.0 | 592.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -16.68 | 241.93 | -7.14 | 162.72 | 0.4025 | 789.0 | 624.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -16.38 | 241.88 | -7.19 | 162.37 | 0.3982 | 843.0 | 704.3 | |
| 1.09 | 56.19 | 0.60 | 31.06 | -18.86 | 240.45 | -8.63 | 161.21 | 0.4425 | 1073.7 | 697.3 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -18.46 | 240.24 | -8.83 | 160.48 | 0.4377 | 1011.0 | 831.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.36 | 240.05 | -9.02 | 160.02 | 0.4373 | 783.0 | 602.8 | |
| 4.16 | -5.00 | 2.30 | -5.00 | -18.93 | 239.95 | -9.12 | 160.28 | 0.4461 | 791.9 | 999999 | |
| 0.00 | 2.71 | 0.00 | 1.50 | -19.23 | 239.94 | -9.14 | 160.49 | 0.4507 | 143.0 | 47.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.62 | 239.76 | -9.32 | 161.19 | 0.4718 | 737.0 | 564.9 | |
| 2.08 | -5.00 | 1.15 | -5.00 | -18.73 | 239.64 | -9.43 | 159.50 | 0.4450 | 1031.1 | 999999 | |
| 2.99 | -5.00 | 1.65 | -5.00 | -18.74 | 239.38 | -9.69 | 158.98 | 0.4465 | 954.8 | 999999 | |
| 0.63 | -5.00 | 0.35 | -5.00 | -18.91 | 239.17 | -9.90 | 158.73 | 0.4501 | 531.1 | 999999 | |
| 0.54 | 3.80 | 0.30 | 2.11 | -19.05 | 239.03 | -10.04 | 158.57 | 0.4529 | -586.5 | -194.9 | |
| 0.00 | 5.70 | 0.00 | 3.15 | -18.61 | 238.93 | -10.14 | 157.99 | 0.4472 | 598.0 | 652.5 | |
| 0.00 | 5.25 | 0.00 | 2.91 | -18.82 | 238.62 | -10.45 | 157.58 | 0.4520 | 165.0 | 186.3 | |
| 0.54 | 3.62 | 0.30 | 2.00 | -18.45 | 238.45 | -10.62 | 156.92 | 0.4478 | 655.7 | 520.6 | |
| 0.00 | 6.97 | 0.00 | 3.86 | -18.63 | 238.21 | -10.86 | 156.61 | 0.4517 | 49.0 | -17.4 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.77 | 238.13 | -10.94 | 157.49 | 0.4684 | -756.0 | -662.4 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -18.23 | 238.11 | -10.97 | 156.04 | 0.4467 | 413.0 | 364.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -19.01 | 237.50 | -11.58 | 155.63 | 0.4616 | -534.0 | -460.9 | |
| 0.00 | 3.53 | 0.00 | 1.97 | -18.75 | 237.29 | -11.79 | 154.98 | 0.4593 | -813.0 | -702.2 | |
| 0.54 | 1.81 | 0.30 | 1.01 | -19.02 | 237.10 | -11.97 | 154.91 | 0.4643 | -881.7 | -727.1 | |
| 0.72 | 2.08 | 0.41 | 1.17 | -19.56 | 236.96 | -12.11 | 155.17 | 0.4727 | -778.5 | -662.7 | |
| 0.00 | 2.44 | 0.00 | 1.37 | -19.33 | 236.58 | -12.49 | 154.27 | 0.4720 | -869.0 | -705.9 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.59 | 236.64 | -12.43 | 153.64 | 0.4615 | -943.0 | -699.5 | |
| 10.95 | 14.39 | 6.13 | 8.06 | -18.96 | 236.45 | -12.63 | 153.67 | 0.4679 | -1038.4 | -803.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -18.70 | 236.20 | -12.87 | 152.97 | 0.4660 | -930.0 | -787.8 | |
| 0.00 | 2.35 | 0.00 | 1.32 | -19.28 | 235.99 | -13.08 | 153.17 | 0.4753 | -668.0 | -601.2 | |
| 0.00 | 3.08 | 0.00 | 1.73 | -19.01 | 235.98 | -13.09 | 152.88 | 0.4718 | -847.0 | -750.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -17.31 | 235.88 | -13.19 | 150.88 | 0.4495 | -819.0 | -619.1 | |
| 1.09 | 3.44 | 0.61 | 1.94 | -19.66 | 235.63 | -13.44 | 152.92 | 0.4830 | -876.6 | -715.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -17.42 | 235.68 | -13.39 | 150.63 | 0.4525 | -144.0 | -272.8 | |
| 2.26 | 4.80 | 1.28 | 2.72 | -19.90 | 235.17 | -13.90 | 152.40 | 0.4895 | -911.1 | -707.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -18.54 | 234.56 | -14.51 | 149.93 | 0.4759 | -807.0 | -588.9 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -18.68 | 234.42 | -14.65 | 149.84 | 0.4789 | -804.0 | -623.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -17.80 | 233.57 | -15.50 | 147.40 | 0.4743 | -606.0 | -576.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
