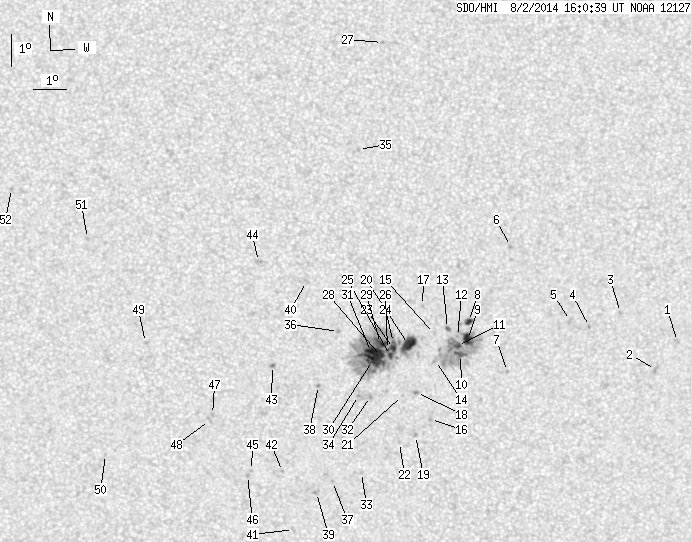

SDO HMI 2014-08-02 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.79 | 356.66 | 40.63 | 181.85 | -7.48 | 249.78 | 1.26 | 185.41 | 0.2364 | 683.3 | 399.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.89 | 0.00 | 1.49 | -7.26 | 258.23 | 9.71 | 216.53 | 0.2823 | 811.0 | 683.3 | |
| 0.00 | 3.35 | 0.00 | 1.73 | -8.13 | 257.56 | 9.04 | 212.88 | 0.2878 | 884.0 | 740.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.33 | 256.44 | 7.92 | 213.08 | 0.2522 | 776.0 | 605.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.75 | 255.49 | 6.97 | 208.97 | 0.2500 | 936.0 | 703.4 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -6.55 | 254.90 | 6.38 | 207.24 | 0.2424 | 915.0 | 617.3 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -4.24 | 253.04 | 4.52 | 204.17 | 0.1930 | 889.0 | 656.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.13 | 252.98 | 4.46 | 197.68 | 0.2547 | 853.0 | 661.4 | |
| 3.17 | 7.06 | 1.61 | 3.59 | -6.55 | 251.77 | 3.25 | 194.68 | 0.2233 | 1120.2 | 855.3 | |
| 8.14 | 82.51 | 4.15 | 42.06 | -7.11 | 251.74 | 3.22 | 193.95 | 0.2325 | 1192.1 | 415.1 | |
| 3.98 | -9.00 | 2.03 | -9.00 | -7.58 | 251.53 | 3.01 | 192.62 | 0.2394 | 867.7 | 999999 | |
| 3.08 | -9.00 | 1.57 | -9.00 | -7.30 | 251.44 | 2.92 | 192.50 | 0.2344 | 1029.3 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.41 | -7.02 | 251.44 | 2.92 | 192.76 | 0.2297 | 1068.0 | 929.6 | |
| 0.63 | 2.35 | 0.32 | 1.20 | -6.77 | 251.13 | 2.61 | 191.67 | 0.2244 | 1135.3 | 986.5 | |
| 0.00 | 2.89 | 0.00 | 1.48 | -7.77 | 250.76 | 2.24 | 189.35 | 0.2400 | 484.0 | 425.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.92 | 250.73 | 2.21 | 189.81 | 0.2257 | 797.0 | 686.1 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -9.62 | 250.62 | 2.10 | 187.70 | 0.2707 | -848.0 | -678.6 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.05 | 250.36 | 1.84 | 188.79 | 0.2099 | 769.0 | 635.6 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -8.77 | 250.18 | 1.66 | 186.48 | 0.2555 | 983.0 | 802.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.12 | 250.16 | 1.64 | 185.83 | 0.2782 | -948.0 | -730.4 | |
| 13.84 | 198.40 | 7.04 | 101.03 | -7.26 | 249.93 | 1.41 | 186.15 | 0.2296 | 1212.7 | 490.6 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.86 | 249.75 | 1.23 | 184.78 | 0.2563 | 663.0 | 481.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.34 | 249.66 | 1.14 | 184.02 | 0.2812 | -761.0 | -554.6 | |
| 3.26 | -20.00 | 1.66 | -20.00 | -7.38 | 249.47 | 0.95 | 184.12 | 0.2310 | 1278.2 | 999999 | |
| 0.27 | -20.00 | 0.14 | -20.00 | -7.20 | 249.47 | 0.95 | 184.18 | 0.2278 | 1092.7 | 999999 | |
| 2.44 | -20.00 | 1.24 | -20.00 | -7.60 | 249.38 | 0.86 | 183.66 | 0.2346 | 978.6 | 999999 | |
| 0.63 | -20.00 | 0.32 | -20.00 | -7.42 | 249.29 | 0.77 | 183.32 | 0.2313 | 1137.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 2.04 | 249.14 | 0.62 | 189.23 | 0.0681 | 975.0 | 729.1 | |
| 4.43 | -20.00 | 2.26 | -20.00 | -7.63 | 249.11 | 0.59 | 182.49 | 0.2348 | 1190.2 | 999999 | |
| 8.87 | -20.00 | 4.51 | -20.00 | -7.23 | 249.07 | 0.56 | 182.43 | 0.2279 | 995.5 | 999999 | |
| 11.67 | -20.00 | 5.95 | -20.00 | -7.76 | 248.83 | 0.31 | 181.30 | 0.2368 | 1095.5 | 999999 | |
| 15.38 | -20.00 | 7.83 | -20.00 | -7.51 | 248.80 | 0.28 | 181.20 | 0.2325 | 1326.6 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -8.89 | 248.77 | 0.25 | 180.96 | 0.2560 | 1061.0 | 818.2 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.29 | 248.49 | -0.03 | 179.89 | 0.2964 | -798.0 | -567.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -8.86 | 248.40 | -0.12 | 179.53 | 0.2554 | 709.0 | 658.5 | |
| 0.00 | 0.90 | 0.00 | 0.45 | -1.23 | 248.41 | -0.11 | 179.11 | 0.1243 | 867.0 | 694.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -6.85 | 247.79 | -0.73 | 176.71 | 0.2216 | 1059.0 | 825.8 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -11.58 | 247.59 | -0.93 | 176.96 | 0.3017 | -873.0 | -729.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.54 | 247.17 | -1.35 | 174.65 | 0.2511 | 1019.0 | 809.7 | |
| 0.00 | 3.08 | 0.00 | 1.60 | -11.93 | 247.09 | -1.43 | 175.43 | 0.3081 | -843.0 | -747.0 | |
| 0.00 | 2.26 | 0.00 | 1.14 | -5.30 | 246.81 | -1.70 | 171.31 | 0.1968 | 764.0 | 611.3 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -13.12 | 246.36 | -2.16 | 173.57 | 0.3289 | -660.0 | -616.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.26 | 246.04 | -2.48 | 171.79 | 0.2989 | -984.0 | -755.5 | |
| 0.00 | 2.35 | 0.00 | 1.20 | -7.92 | 245.76 | -2.76 | 168.68 | 0.2441 | 1024.0 | 823.0 | |
| 0.00 | 3.26 | 0.00 | 1.64 | -4.68 | 245.35 | -3.17 | 163.26 | 0.1920 | 652.0 | 620.9 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.24 | 245.07 | -3.44 | 168.67 | 0.3012 | -837.0 | -612.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -11.40 | 244.95 | -3.57 | 168.37 | 0.3042 | -817.0 | -676.1 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -9.47 | 243.89 | -4.63 | 163.24 | 0.2772 | -1015.0 | -756.8 | |
| 0.00 | 2.71 | 0.00 | 1.40 | -9.66 | 243.79 | -4.72 | 163.11 | 0.2807 | -739.0 | -747.2 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.23 | 241.86 | -6.66 | 153.01 | 0.2547 | -792.0 | -595.3 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.77 | 240.54 | -7.98 | 154.46 | 0.3177 | -878.0 | -632.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -4.02 | 240.11 | -8.41 | 139.50 | 0.2255 | -921.0 | -676.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -2.52 | 237.78 | -10.74 | 127.76 | 0.2365 | -800.0 | -640.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
