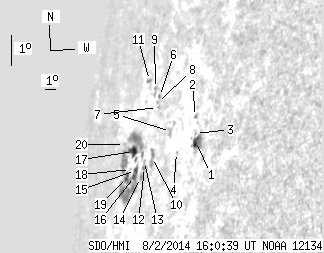

SDO HMI 2014-08-02 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.19 | 119.24 | 31.30 | 236.03 | 9.11 | 172.48 | -76.04 | 82.08 | 0.9680 | 155.5 | 84.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 16:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 11.40 | 5.34 | 16.27 | 10.14 | 177.95 | -70.57 | 81.33 | 0.9405 | -594.5 | -442.3 | |
| 0.00 | 1.27 | 0.00 | 1.86 | 10.88 | 177.56 | -70.96 | 80.52 | 0.9426 | -368.0 | -337.4 | |
| 0.00 | 0.81 | 0.00 | 1.18 | 10.38 | 177.83 | -70.69 | 81.07 | 0.9412 | -513.0 | -502.7 | |
| 0.00 | 0.54 | 0.00 | 0.85 | 9.65 | 176.34 | -72.18 | 81.77 | 0.9497 | -165.0 | -135.5 | |
| 0.00 | 3.89 | 0.00 | 6.39 | 10.20 | 175.40 | -73.12 | 81.13 | 0.9545 | 476.0 | 419.6 | |
| 0.00 | 1.18 | 0.00 | 2.14 | 11.11 | 173.53 | -74.98 | 80.09 | 0.9633 | 269.0 | 304.0 | |
| 0.00 | 0.36 | 0.00 | 0.66 | 10.77 | 173.54 | -74.98 | 80.44 | 0.9634 | 506.0 | 474.0 | |
| 0.00 | 1.00 | 0.00 | 1.82 | 10.91 | 173.43 | -75.08 | 80.28 | 0.9638 | 421.0 | 359.1 | |
| 0.00 | 1.00 | 0.00 | 1.88 | 11.30 | 172.89 | -75.62 | 79.86 | 0.9662 | -171.0 | -76.3 | |
| 0.00 | 7.42 | 0.00 | 13.29 | 9.26 | 173.93 | -74.59 | 82.03 | 0.9620 | 452.0 | 436.0 | |
| 0.00 | 2.26 | 0.00 | 4.55 | 11.45 | 171.97 | -76.54 | 79.64 | 0.9701 | 454.0 | 345.6 | |
| 0.00 | 2.89 | 0.00 | 5.43 | 8.88 | 173.19 | -75.33 | 82.38 | 0.9655 | 476.0 | 515.1 | |
| 0.00 | 0.27 | 0.00 | 0.51 | 9.05 | 173.08 | -75.44 | 82.19 | 0.9659 | 422.0 | 429.3 | |
| 0.00 | 2.17 | 0.00 | 4.14 | 8.54 | 172.89 | -75.63 | 82.71 | 0.9669 | 315.0 | 299.8 | |
| 1.90 | 81.42 | 3.79 | 171.98 | 8.68 | 172.15 | -76.37 | 82.51 | 0.9700 | 460.6 | 57.7 | |
| 2.08 | -15.00 | 4.19 | -15.00 | 8.49 | 172.14 | -76.38 | 82.70 | 0.9702 | 484.7 | 999999 | |
| 5.70 | -15.00 | 11.94 | -15.00 | 9.21 | 171.53 | -76.99 | 81.93 | 0.9725 | 347.0 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.57 | 8.65 | 171.49 | -77.03 | 82.50 | 0.9728 | 204.0 | 171.0 | |
| 2.80 | -15.00 | 6.04 | -15.00 | 8.36 | 171.11 | -77.41 | 82.77 | 0.9743 | 10.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 2.51 | 9.28 | 170.14 | -78.38 | 81.75 | 0.9777 | -383.0 | -336.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
