SDO HMI 2014-08-02 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.95 | 25.35 | 6.05 | 14.12 | -21.18 | 248.26 | 0.30 | 180.83 | 0.4569 | 615.5 | 397.3 | |
|
previous
or next observation for the same group /

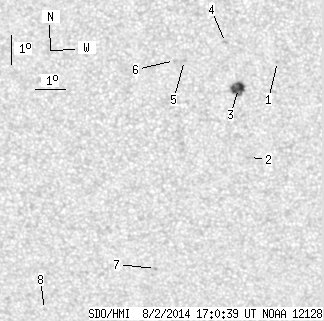

back to the solar disc SDO HMI 2014-08-02 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.53 | 250.12 | 2.15 | 184.72 | 0.4323 | 618.0 | 549.3 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -22.81 | 249.24 | 1.27 | 182.44 | 0.4824 | 502.0 | 480.9 | |
| 10.95 | 14.93 | 6.05 | 8.25 | -20.44 | 248.86 | 0.90 | 181.90 | 0.4454 | 1003.8 | 714.4 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -18.89 | 248.44 | 0.47 | 181.07 | 0.4207 | 784.0 | 578.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.49 | 247.12 | -0.85 | 178.13 | 0.4304 | 744.0 | 646.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -19.49 | 246.79 | -1.17 | 177.43 | 0.4306 | 746.0 | 699.0 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -26.74 | 246.07 | -1.89 | 176.87 | 0.5419 | -801.0 | -687.8 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -28.26 | 242.20 | -5.76 | 171.03 | 0.5698 | -634.0 | -425.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
