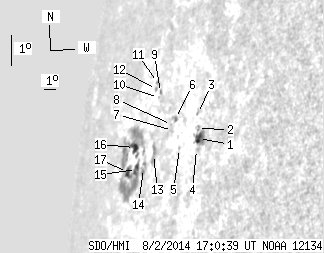

SDO HMI 2014-08-02 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.18 | 131.53 | 33.60 | 250.01 | 9.11 | 172.56 | -75.41 | 82.12 | 0.9652 | 133.7 | 82.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 17:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.52 | 11.85 | 6.34 | 16.53 | 10.11 | 177.98 | -69.98 | 81.39 | 0.9370 | -637.9 | -434.0 | |
| 0.00 | 2.08 | 0.00 | 2.94 | 10.39 | 177.75 | -70.22 | 81.07 | 0.9384 | -504.0 | -482.3 | |
| 0.00 | 1.27 | 0.00 | 1.81 | 10.84 | 177.52 | -70.45 | 80.59 | 0.9396 | -304.0 | -275.5 | |
| 0.00 | 0.81 | 0.00 | 1.15 | 9.76 | 177.97 | -70.00 | 81.76 | 0.9373 | -159.0 | -171.0 | |
| 0.00 | 0.63 | 0.00 | 0.96 | 9.65 | 176.41 | -71.56 | 81.80 | 0.9463 | -111.0 | -107.1 | |
| 0.00 | 2.62 | 0.00 | 4.14 | 10.49 | 175.54 | -72.43 | 80.87 | 0.9508 | 58.0 | 142.1 | |
| 0.00 | 1.90 | 0.00 | 3.02 | 10.11 | 175.45 | -72.52 | 81.26 | 0.9514 | 385.0 | 339.9 | |
| 0.00 | 0.81 | 0.00 | 1.31 | 10.28 | 175.24 | -72.72 | 81.08 | 0.9524 | 438.0 | 428.4 | |
| 0.00 | 1.27 | 0.00 | 2.23 | 11.10 | 173.49 | -74.48 | 80.13 | 0.9610 | 362.0 | 304.8 | |
| 0.00 | 0.27 | 0.00 | 0.48 | 10.93 | 173.37 | -74.60 | 80.29 | 0.9616 | 341.0 | 304.7 | |
| 0.00 | 1.18 | 0.00 | 2.15 | 11.36 | 172.94 | -75.03 | 79.83 | 0.9635 | -27.0 | -5.5 | |
| 0.00 | 1.09 | 0.00 | 1.98 | 11.14 | 172.98 | -74.99 | 80.05 | 0.9633 | -87.0 | -27.0 | |
| 0.00 | 8.23 | 0.00 | 14.27 | 9.22 | 173.88 | -74.08 | 82.11 | 0.9596 | 587.0 | 436.5 | |
| 0.00 | 5.16 | 0.00 | 9.42 | 8.70 | 173.00 | -74.96 | 82.59 | 0.9639 | 490.0 | 433.3 | |
| 4.52 | 44.96 | 8.72 | 90.75 | 8.59 | 172.20 | -75.77 | 82.65 | 0.9675 | 475.9 | 96.7 | |
| 5.52 | 47.40 | 11.07 | 96.87 | 9.20 | 171.54 | -76.42 | 81.97 | 0.9701 | 393.9 | 48.0 | |
| 3.62 | -15.00 | 7.47 | -15.00 | 8.39 | 171.13 | -76.84 | 82.78 | 0.9721 | 39.8 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
