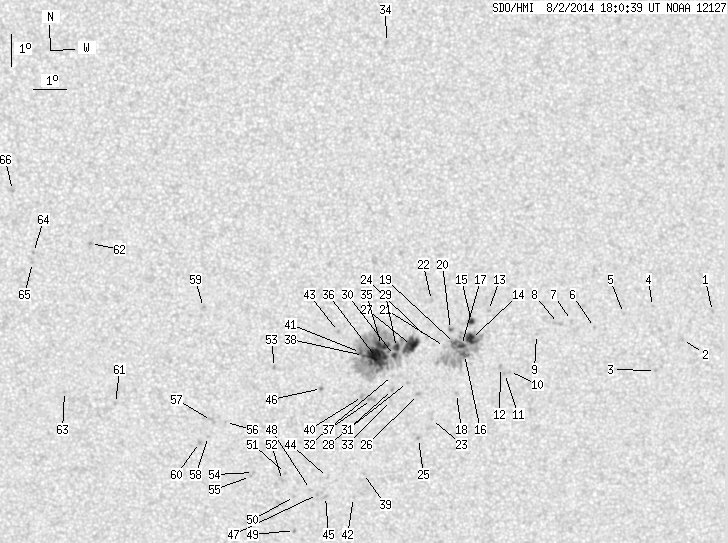

SDO HMI 2014-08-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.21 | 355.15 | 41.37 | 181.29 | -7.56 | 249.64 | 2.23 | 189.52 | 0.2410 | 497.3 | 368.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.33 | 259.25 | 11.84 | 224.24 | 0.2936 | 819.0 | 666.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.18 | 258.33 | 10.92 | 219.98 | 0.2939 | 817.0 | 687.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.14 | 257.51 | 10.10 | 215.81 | 0.2981 | 890.0 | 607.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.14 | 257.38 | 9.97 | 219.78 | 0.2701 | 789.0 | 537.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -6.34 | 256.48 | 9.07 | 216.68 | 0.2635 | 749.0 | 502.2 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -6.76 | 255.59 | 8.18 | 212.97 | 0.2608 | 843.0 | 658.4 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -6.53 | 254.88 | 7.47 | 211.09 | 0.2511 | 905.0 | 709.5 | |
| 0.00 | 3.98 | 0.00 | 2.04 | -6.62 | 254.48 | 7.07 | 209.54 | 0.2490 | 753.0 | 598.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -6.95 | 253.80 | 6.39 | 206.52 | 0.2486 | -726.0 | -527.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -8.10 | 252.98 | 5.57 | 201.74 | 0.2607 | 779.0 | 548.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.16 | 252.83 | 5.42 | 201.11 | 0.2607 | 791.0 | 656.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -7.97 | 252.70 | 5.29 | 200.93 | 0.2570 | 1033.0 | 833.6 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.19 | 252.32 | 4.91 | 202.17 | 0.2264 | 868.0 | 686.1 | |
| 8.77 | 81.77 | 4.47 | 41.73 | -7.05 | 251.80 | 4.39 | 198.78 | 0.2372 | 1223.5 | 440.7 | |
| 2.62 | 4.16 | 1.33 | 2.12 | -6.52 | 251.80 | 4.39 | 199.51 | 0.2286 | 1170.7 | 926.5 | |
| 2.98 | -14.00 | 1.52 | -14.00 | -7.55 | 251.59 | 4.18 | 197.30 | 0.2441 | 850.1 | 999999 | |
| 2.53 | -14.00 | 1.29 | -14.00 | -7.27 | 251.50 | 4.09 | 197.28 | 0.2391 | 1026.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -8.77 | 251.36 | 3.95 | 195.06 | 0.2629 | -965.0 | -579.9 | |
| 1.63 | -14.00 | 0.83 | -14.00 | -7.20 | 251.28 | 3.87 | 196.49 | 0.2369 | 1069.6 | 999999 | |
| 0.63 | 1.99 | 0.32 | 1.01 | -6.77 | 251.16 | 3.74 | 196.51 | 0.2292 | 1050.3 | 894.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -7.30 | 250.97 | 3.56 | 195.15 | 0.2370 | 645.0 | 453.7 | |
| 0.00 | 2.44 | 0.00 | 1.24 | -5.86 | 250.57 | 3.16 | 195.08 | 0.2115 | 828.0 | 698.7 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.58 | 250.59 | 3.18 | 191.60 | 0.2733 | -854.0 | -713.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -7.01 | 250.42 | 3.01 | 193.16 | 0.2300 | 770.0 | 624.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -10.18 | 250.19 | 2.78 | 189.81 | 0.2819 | -922.0 | -779.4 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -8.79 | 250.19 | 2.77 | 190.70 | 0.2589 | 984.0 | 795.3 | |
| 15.01 | 189.40 | 7.65 | 96.49 | -7.26 | 249.96 | 2.55 | 191.00 | 0.2325 | 1189.6 | 525.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.41 | 249.84 | 2.43 | 189.66 | 0.2515 | 796.0 | 644.2 | |
| 3.80 | -27.00 | 1.93 | -27.00 | -7.32 | 249.50 | 2.09 | 189.01 | 0.2322 | 1301.1 | 999999 | |
| 2.44 | -27.00 | 1.24 | -27.00 | -7.57 | 249.44 | 2.03 | 188.59 | 0.2362 | 1044.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.63 | 249.38 | 1.97 | 187.74 | 0.2540 | 715.0 | 519.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.19 | 249.38 | 1.97 | 187.97 | 0.2466 | 674.0 | 395.2 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -8.98 | 249.32 | 1.91 | 187.33 | 0.2597 | -755.0 | -537.7 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 2.07 | 249.19 | 1.78 | 205.08 | 0.0736 | 939.0 | 690.0 | |
| 8.86 | -27.00 | 4.51 | -27.00 | -7.25 | 249.04 | 1.63 | 187.08 | 0.2300 | 1028.6 | 999999 | |
| 29.31 | -27.00 | 14.94 | -27.00 | -7.63 | 248.89 | 1.48 | 186.25 | 0.2360 | 1270.6 | 999999 | |
| 0.00 | 3.35 | 0.00 | 1.72 | -8.94 | 248.74 | 1.33 | 185.11 | 0.2580 | 1058.0 | 826.1 | |
| 1.45 | -27.00 | 0.74 | -27.00 | -7.56 | 248.49 | 1.08 | 184.59 | 0.2343 | 921.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.28 | 248.50 | 1.09 | 183.61 | 0.2970 | -852.0 | -652.5 | |
| 0.00 | 2.62 | 0.00 | 1.34 | -8.85 | 248.46 | 1.05 | 184.08 | 0.2560 | 924.0 | 757.2 | |
| 1.18 | -27.00 | 0.60 | -27.00 | -7.47 | 248.40 | 0.99 | 184.23 | 0.2326 | 886.2 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.05 | 248.19 | 0.78 | 182.47 | 0.3095 | -666.0 | -550.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | -6.81 | 247.72 | 0.31 | 181.41 | 0.2208 | 1065.0 | 811.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -11.41 | 247.38 | -0.03 | 179.90 | 0.2985 | -797.0 | -539.1 | |
| 0.00 | 2.17 | 0.00 | 1.13 | -12.02 | 247.32 | -0.09 | 179.70 | 0.3087 | -790.0 | -627.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -8.59 | 247.20 | -0.21 | 179.17 | 0.2511 | 991.0 | 733.7 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.95 | 247.07 | -0.34 | 178.91 | 0.3077 | -992.0 | -802.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -11.79 | 246.85 | -0.56 | 178.20 | 0.3051 | -912.0 | -767.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -13.11 | 246.35 | -1.06 | 176.82 | 0.3273 | -868.0 | -753.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -12.02 | 246.35 | -1.06 | 176.64 | 0.3092 | -743.0 | -646.4 | |
| 0.00 | 0.99 | 0.00 | 0.52 | -11.28 | 246.08 | -1.33 | 175.58 | 0.2973 | -973.0 | -769.8 | |
| 0.00 | 2.62 | 0.00 | 1.36 | -11.51 | 245.98 | -1.43 | 175.33 | 0.3011 | -808.0 | -433.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -7.94 | 245.76 | -1.65 | 173.18 | 0.2416 | 1049.0 | 873.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.25 | 245.09 | -2.32 | 172.31 | 0.2985 | -878.0 | -646.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -11.38 | 244.99 | -2.42 | 172.06 | 0.3008 | -826.0 | -604.9 | |
| 0.00 | 0.99 | 0.00 | 0.51 | -9.67 | 244.24 | -3.18 | 168.48 | 0.2747 | -744.0 | -587.6 | |
| 0.00 | 3.62 | 0.00 | 1.86 | -9.61 | 243.80 | -3.61 | 166.92 | 0.2752 | -743.0 | -698.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.12 | 243.70 | -3.71 | 166.99 | 0.2839 | -809.0 | -639.5 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -6.07 | 243.59 | -3.82 | 162.26 | 0.2182 | -886.0 | -716.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -10.31 | 243.42 | -3.99 | 166.20 | 0.2881 | -1036.0 | -841.1 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -9.10 | 240.84 | -6.57 | 156.34 | 0.2827 | -799.0 | -599.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | -4.12 | 240.15 | -7.26 | 143.89 | 0.2150 | -1067.0 | -847.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.74 | 239.27 | -8.15 | 150.88 | 0.2891 | -711.0 | -572.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -4.42 | 238.39 | -9.02 | 138.64 | 0.2377 | -941.0 | -687.3 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -4.73 | 238.35 | -9.06 | 139.38 | 0.2421 | -825.0 | -679.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -2.52 | 237.76 | -9.65 | 130.83 | 0.2223 | -820.0 | -624.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
