SDO HMI 2014-08-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.78 | 498.02 | 60.43 | 269.21 | -7.45 | 228.58 | -18.83 | 126.24 | 0.3964 | 434.0 | 306.7 | |
|
previous
or next observation for the same group /

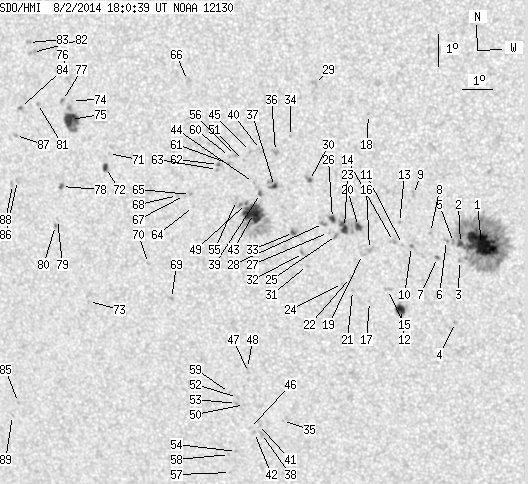

back to the solar disc SDO HMI 2014-08-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.23 | 215.27 | 23.30 | 113.34 | -7.95 | 233.11 | -14.30 | 133.97 | 0.3413 | 1255.0 | 475.8 | |
| 2.35 | -1.00 | 1.24 | -1.00 | -7.93 | 232.45 | -14.96 | 132.63 | 0.3491 | 796.2 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -8.47 | 232.39 | -15.02 | 133.64 | 0.3557 | 685.0 | 468.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -10.43 | 232.17 | -15.24 | 137.02 | 0.3807 | 785.0 | 624.9 | |
| 0.00 | 2.26 | 0.00 | 1.20 | -7.91 | 232.23 | -15.19 | 132.15 | 0.3515 | 829.0 | 659.6 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -7.85 | 232.00 | -15.41 | 131.62 | 0.3535 | 771.0 | 668.8 | |
| 0.36 | 1.99 | 0.19 | 1.06 | -8.39 | 231.70 | -15.72 | 132.18 | 0.3632 | 869.0 | 688.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -7.62 | 231.50 | -15.91 | 130.19 | 0.3572 | 789.0 | 598.7 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -6.44 | 231.00 | -16.41 | 126.72 | 0.3516 | 924.0 | 722.1 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -8.07 | 230.88 | -16.53 | 130.06 | 0.3697 | 977.0 | 848.8 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -8.02 | 230.59 | -16.82 | 129.46 | 0.3727 | 588.0 | 496.4 | |
| 6.33 | 8.59 | 3.41 | 4.63 | -10.07 | 230.42 | -16.99 | 133.23 | 0.3965 | 970.5 | 570.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.33 | 230.52 | -16.89 | 127.89 | 0.3666 | 749.0 | 553.1 | |
| 0.00 | 2.89 | 0.00 | 1.55 | -7.93 | 230.31 | -17.11 | 128.81 | 0.3754 | 867.0 | 665.2 | |
| 0.00 | 2.98 | 0.00 | 1.61 | -9.45 | 230.04 | -17.37 | 131.41 | 0.3944 | 771.0 | 630.6 | |
| 0.00 | 3.44 | 0.00 | 1.85 | -8.21 | 229.52 | -17.89 | 128.11 | 0.3881 | 671.0 | 570.9 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -9.85 | 229.43 | -17.98 | 131.19 | 0.4058 | 407.0 | 378.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -4.01 | 229.64 | -17.77 | 118.72 | 0.3487 | -748.0 | -617.7 | |
| 0.00 | 2.80 | 0.00 | 1.51 | -8.37 | 229.29 | -18.13 | 128.08 | 0.3927 | 743.0 | 601.2 | |
| 3.17 | 23.43 | 1.70 | 12.59 | -7.50 | 229.20 | -18.21 | 126.14 | 0.3854 | 1147.2 | 728.8 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.52 | 228.90 | -18.51 | 129.74 | 0.4089 | 733.0 | 557.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.11 | 228.86 | -18.55 | 128.89 | 0.4053 | 938.0 | 714.5 | |
| 5.43 | -20.00 | 2.92 | -20.00 | -7.54 | 228.74 | -18.67 | 125.56 | 0.3917 | 1042.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -9.30 | 228.59 | -18.82 | 128.86 | 0.4106 | 691.0 | 590.3 | |
| 0.00 | 2.17 | 0.00 | 1.17 | -7.80 | 228.47 | -18.94 | 125.70 | 0.3977 | 764.0 | 628.2 | |
| 2.53 | 4.25 | 1.36 | 2.29 | -7.27 | 228.37 | -19.05 | 124.45 | 0.3942 | 940.9 | 707.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -7.72 | 228.21 | -19.20 | 125.16 | 0.4002 | 620.0 | 604.8 | |
| 0.00 | 3.17 | 0.00 | 1.71 | -7.44 | 228.07 | -19.35 | 124.37 | 0.3997 | 876.0 | 775.4 | |
| 0.00 | 4.70 | 0.00 | 2.50 | -3.14 | 227.92 | -19.49 | 114.37 | 0.3673 | -690.0 | -709.6 | |
| 0.90 | 3.89 | 0.49 | 2.09 | -6.11 | 227.67 | -19.74 | 121.01 | 0.3935 | 1023.5 | 728.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -8.78 | 227.47 | -19.94 | 126.24 | 0.4196 | 600.0 | 453.9 | |
| 0.00 | 3.08 | 0.00 | 1.68 | -8.40 | 227.36 | -20.05 | 125.36 | 0.4176 | 701.0 | 667.6 | |
| 1.36 | 3.35 | 0.74 | 1.82 | -7.76 | 227.07 | -20.34 | 123.67 | 0.4156 | 880.5 | 707.7 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -4.77 | 227.10 | -20.31 | 117.29 | 0.3909 | 652.0 | 548.4 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -13.75 | 226.26 | -21.15 | 133.22 | 0.4828 | -735.0 | -694.5 | |
| 0.00 | 3.98 | 0.00 | 2.15 | -5.25 | 226.59 | -20.82 | 117.78 | 0.4017 | 855.0 | 758.9 | |
| 1.54 | 5.61 | 0.83 | 3.05 | -6.34 | 226.52 | -20.89 | 120.05 | 0.4112 | 1105.5 | 896.9 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -14.20 | 225.51 | -21.90 | 132.92 | 0.4957 | -832.0 | -602.3 | |
| 0.81 | 2.53 | 0.44 | 1.38 | -6.58 | 226.05 | -21.36 | 119.98 | 0.4195 | 964.4 | 780.3 | |
| 0.00 | 3.08 | 0.00 | 1.67 | -5.21 | 226.10 | -21.31 | 117.13 | 0.4083 | 550.0 | 582.3 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -13.91 | 225.44 | -21.97 | 132.38 | 0.4936 | -690.0 | -690.3 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -14.18 | 225.28 | -22.14 | 132.58 | 0.4981 | -699.0 | -578.5 | |
| 24.78 | 70.55 | 13.57 | 38.67 | -7.21 | 225.78 | -21.63 | 120.96 | 0.4282 | 1046.3 | 359.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.24 | 225.83 | -21.58 | 119.03 | 0.4199 | 725.0 | 594.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -5.28 | 225.77 | -21.64 | 116.92 | 0.4135 | 701.0 | 571.4 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -14.05 | 225.12 | -22.29 | 132.19 | 0.4986 | -754.0 | -592.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -12.25 | 225.26 | -22.15 | 129.51 | 0.4795 | -810.0 | -621.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -12.12 | 225.24 | -22.17 | 129.27 | 0.4785 | -763.0 | -640.4 | |
| 0.45 | -43.00 | 0.25 | -43.00 | -6.91 | 225.57 | -21.84 | 120.09 | 0.4287 | 849.4 | 999999 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -13.28 | 225.03 | -22.38 | 130.88 | 0.4921 | -517.0 | -538.7 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.57 | 225.53 | -21.88 | 117.27 | 0.4190 | 702.0 | 617.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -13.07 | 224.81 | -22.60 | 130.27 | 0.4925 | -735.0 | -550.2 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -13.26 | 224.76 | -22.65 | 130.51 | 0.4950 | -720.0 | -665.8 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -14.82 | 224.59 | -22.82 | 132.68 | 0.5120 | -734.0 | -580.2 | |
| 0.00 | 2.80 | 0.00 | 1.54 | -6.82 | 225.24 | -22.17 | 119.55 | 0.4325 | 388.0 | 443.8 | |
| 0.00 | 2.08 | 0.00 | 1.14 | -5.43 | 225.27 | -22.14 | 116.68 | 0.4216 | 711.0 | 559.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -15.52 | 224.31 | -23.10 | 133.35 | 0.5220 | -725.0 | -538.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -14.93 | 224.34 | -23.07 | 132.53 | 0.5158 | -575.0 | -478.3 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -12.92 | 224.56 | -22.85 | 129.71 | 0.4941 | -636.0 | -533.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.46 | 225.07 | -22.34 | 116.55 | 0.4247 | 605.0 | 489.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -5.68 | 225.03 | -22.38 | 116.97 | 0.4269 | 915.0 | 745.1 | |
| 0.45 | 1.81 | 0.25 | 0.99 | -5.73 | 224.70 | -22.71 | 116.71 | 0.4319 | 761.2 | 598.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -5.88 | 224.66 | -22.75 | 116.99 | 0.4336 | 664.0 | 543.7 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -7.07 | 223.80 | -23.61 | 118.48 | 0.4541 | 511.0 | 376.3 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -6.70 | 223.72 | -23.69 | 117.67 | 0.4525 | 858.0 | 681.8 | |
| 0.00 | 3.98 | 0.00 | 2.18 | -3.17 | 223.76 | -23.65 | 110.37 | 0.4291 | -651.0 | -585.8 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -6.74 | 223.51 | -23.90 | 117.54 | 0.4556 | 700.0 | 565.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -6.75 | 223.28 | -24.13 | 117.32 | 0.4589 | 711.0 | 617.5 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -10.00 | 222.85 | -24.56 | 122.87 | 0.4893 | -792.0 | -558.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -8.92 | 222.16 | -25.25 | 120.26 | 0.4899 | -778.0 | -651.9 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -5.54 | 221.01 | -26.41 | 112.95 | 0.4826 | -736.0 | -616.2 | |
| 2.62 | 4.52 | 1.49 | 2.56 | -5.98 | 220.88 | -26.53 | 113.68 | 0.4871 | 727.3 | 481.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -10.22 | 219.98 | -27.43 | 120.40 | 0.5277 | -772.0 | -653.7 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -3.96 | 219.81 | -27.60 | 109.01 | 0.4909 | -728.0 | -539.3 | |
| 12.75 | 27.68 | 7.26 | 15.75 | -4.55 | 219.75 | -27.66 | 110.10 | 0.4948 | -959.6 | -721.4 | |
| 0.00 | 2.44 | 0.00 | 1.39 | -3.35 | 219.72 | -27.69 | 107.77 | 0.4890 | -983.0 | -773.4 | |
| 0.00 | 2.08 | 0.00 | 1.19 | -3.97 | 219.50 | -27.92 | 108.83 | 0.4954 | -794.0 | -617.6 | |
| 1.18 | 2.80 | 0.68 | 1.62 | -6.65 | 219.32 | -28.09 | 113.66 | 0.5126 | 808.6 | 652.8 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -7.69 | 219.11 | -28.30 | 115.34 | 0.5219 | 346.0 | 291.1 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -7.88 | 219.03 | -28.38 | 115.60 | 0.5242 | 725.0 | 507.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -4.11 | 218.62 | -28.79 | 108.51 | 0.5086 | -844.0 | -762.5 | |
| 0.00 | 4.34 | 0.00 | 2.49 | -2.54 | 218.50 | -28.91 | 105.48 | 0.5031 | -687.0 | -704.4 | |
| 0.00 | 2.17 | 0.00 | 1.24 | -2.24 | 218.37 | -29.04 | 104.83 | 0.5038 | -743.0 | -640.2 | |
| 0.54 | 2.08 | 0.31 | 1.20 | -4.26 | 218.02 | -29.39 | 108.42 | 0.5178 | -835.0 | -630.8 | |
| 0.00 | 0.99 | 0.00 | 0.61 | -13.59 | 217.09 | -30.32 | 123.08 | 0.5879 | -694.0 | -578.9 | |
| 0.00 | 2.08 | 0.00 | 1.22 | -6.54 | 217.79 | -29.62 | 112.34 | 0.5329 | -842.0 | -718.0 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -5.14 | 217.80 | -29.61 | 109.87 | 0.5253 | -866.0 | -690.8 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -6.67 | 217.60 | -29.81 | 112.44 | 0.5362 | -555.0 | -481.6 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -14.02 | 216.81 | -30.60 | 123.47 | 0.5943 | -441.0 | -358.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
