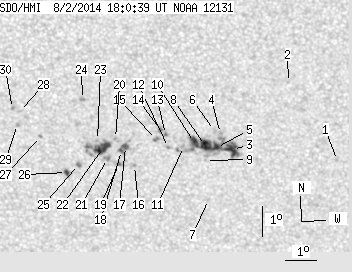

SDO HMI 2014-08-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.76 | 144.38 | 26.40 | 79.87 | -18.91 | 238.37 | -9.04 | 160.54 | 0.4465 | 71.2 | -62.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 18:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.35 | -19.32 | 244.02 | -3.39 | 172.52 | 0.4311 | 721.0 | 630.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.74 | 242.51 | -4.90 | 167.98 | 0.3945 | 756.0 | 641.2 | |
| 9.68 | 67.29 | 5.32 | 37.05 | -18.98 | 240.63 | -6.78 | 165.11 | 0.4362 | 951.4 | 447.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.45 | 240.27 | -7.14 | 164.00 | 0.4297 | 933.0 | 742.4 | |
| 5.16 | -3.00 | 2.84 | -3.00 | -18.92 | 240.12 | -7.29 | 164.00 | 0.4374 | 886.9 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.39 | -18.35 | 240.08 | -7.33 | 163.53 | 0.4290 | 750.0 | 522.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -20.68 | 239.77 | -7.64 | 164.43 | 0.4653 | 675.0 | 506.2 | |
| 9.59 | -3.00 | 5.28 | -3.00 | -18.86 | 239.76 | -7.65 | 163.22 | 0.4381 | 1015.3 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -19.36 | 239.74 | -7.67 | 163.52 | 0.4457 | 490.0 | 333.3 | |
| 5.52 | -3.00 | 3.04 | -3.00 | -18.76 | 239.41 | -8.00 | 162.43 | 0.4382 | 756.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.90 | 239.05 | -8.36 | 161.78 | 0.4421 | 165.0 | 200.6 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -18.94 | 238.56 | -8.85 | 160.83 | 0.4451 | 248.0 | 256.8 | |
| 0.36 | 1.99 | 0.20 | 1.10 | -18.51 | 238.48 | -8.93 | 160.33 | 0.4391 | 777.8 | 547.3 | |
| 0.63 | 2.53 | 0.35 | 1.39 | -18.35 | 238.33 | -9.08 | 159.89 | 0.4375 | 888.7 | 647.2 | |
| 0.00 | 2.98 | 0.00 | 1.65 | -18.68 | 238.18 | -9.23 | 159.87 | 0.4433 | 72.0 | -44.5 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -19.57 | 237.41 | -10.00 | 159.09 | 0.4603 | -727.0 | -633.0 | |
| 2.35 | 10.04 | 1.31 | 5.57 | -18.93 | 237.15 | -10.26 | 158.06 | 0.4527 | -862.2 | -637.3 | |
| 1.09 | -17.00 | 0.60 | -17.00 | -19.07 | 237.01 | -10.40 | 157.91 | 0.4554 | -868.8 | 999999 | |
| 0.54 | 5.34 | 0.30 | 2.98 | -19.54 | 236.88 | -10.53 | 158.08 | 0.4629 | -842.3 | -548.8 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -18.67 | 236.84 | -10.57 | 157.23 | 0.4507 | -897.0 | -762.8 | |
| 0.00 | 3.71 | 0.00 | 2.07 | -19.35 | 236.54 | -10.87 | 157.25 | 0.4622 | -853.0 | -723.9 | |
| 10.85 | 21.71 | 6.04 | 12.09 | -19.02 | 236.40 | -11.01 | 156.69 | 0.4583 | -1096.0 | -784.3 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.75 | 236.25 | -11.16 | 156.17 | 0.4555 | -989.0 | -858.1 | |
| 0.00 | 2.08 | 0.00 | 1.15 | -17.39 | 235.85 | -11.56 | 154.06 | 0.4390 | -832.0 | -723.2 | |
| 0.00 | 2.89 | 0.00 | 1.62 | -19.57 | 235.57 | -11.84 | 155.67 | 0.4713 | -945.0 | -796.1 | |
| 1.99 | 3.08 | 1.12 | 1.73 | -19.85 | 235.15 | -12.26 | 155.18 | 0.4778 | -959.3 | -702.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -18.66 | 234.38 | -13.03 | 152.65 | 0.4667 | -839.0 | -652.4 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -17.84 | 233.76 | -13.65 | 150.65 | 0.4602 | -615.0 | -461.5 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -18.27 | 233.66 | -13.75 | 150.95 | 0.4668 | -762.0 | -669.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -17.74 | 233.54 | -13.87 | 150.15 | 0.4607 | -839.0 | -746.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
