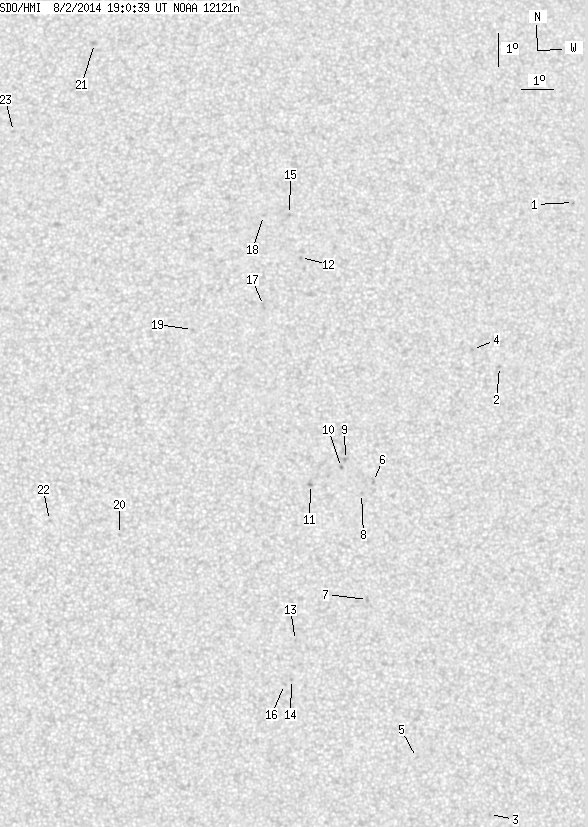

SDO HMI 2014-08-02 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 30.85 | 0.00 | 15.77 | 11.31 | 257.74 | 10.88 | 296.10 | 0.2375 | 625.9 | 517.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.49 | 17.60 | 267.27 | 20.41 | 302.19 | 0.3944 | -789.0 | -578.1 | |
| 0.00 | 0.99 | 0.00 | 0.52 | 12.64 | 264.33 | 17.47 | 292.64 | 0.3188 | -835.0 | -665.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -1.00 | 263.56 | 16.70 | 248.09 | 0.3111 | 816.0 | 618.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.19 | 263.49 | 16.63 | 295.22 | 0.3094 | -797.0 | -587.7 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 0.81 | 261.26 | 14.40 | 251.07 | 0.2640 | 788.0 | 578.4 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 9.24 | 260.09 | 13.24 | 285.16 | 0.2352 | 728.0 | 586.2 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 5.66 | 259.79 | 12.93 | 269.64 | 0.2237 | 832.0 | 680.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 8.89 | 259.70 | 12.84 | 284.03 | 0.2274 | 704.0 | 532.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 9.93 | 259.23 | 12.38 | 289.05 | 0.2244 | 918.0 | 789.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.69 | 259.10 | 12.24 | 288.19 | 0.2210 | 1102.0 | 944.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 9.20 | 258.11 | 11.25 | 287.22 | 0.2025 | 1044.0 | 840.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.16 | 258.11 | 11.25 | 313.87 | 0.2611 | 934.0 | 744.2 | |
| 0.00 | 0.72 | 0.00 | 0.36 | 4.46 | 257.52 | 10.66 | 262.86 | 0.1868 | 970.0 | 754.5 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 3.28 | 257.38 | 10.52 | 256.50 | 0.1884 | 912.0 | 655.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.49 | 257.83 | 10.98 | 318.18 | 0.2736 | 905.0 | 724.2 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 3.13 | 257.16 | 10.31 | 255.43 | 0.1854 | 798.0 | 701.1 | |
| 0.00 | 2.80 | 0.00 | 1.43 | 14.70 | 256.84 | 9.99 | 312.68 | 0.2292 | 609.0 | 542.7 | |
| 0.00 | 0.90 | 0.00 | 0.46 | 17.48 | 256.99 | 10.13 | 320.35 | 0.2641 | 744.0 | 587.5 | |
| 0.00 | 0.81 | 0.00 | 0.41 | 14.00 | 254.56 | 7.70 | 317.52 | 0.1934 | 701.0 | 473.9 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.77 | 252.14 | 5.28 | 290.05 | 0.0975 | 807.0 | 586.4 | |
| 0.00 | 2.44 | 0.00 | 1.27 | 22.96 | 251.73 | 4.87 | 345.09 | 0.3054 | 866.0 | 561.5 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 8.21 | 249.99 | 3.13 | 307.01 | 0.0680 | 832.0 | 564.0 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 20.20 | 249.01 | 2.15 | 351.90 | 0.2508 | 807.0 | 617.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
