SDO HMI 2014-08-02 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.16 | 132.59 | 33.06 | 234.71 | 9.03 | 172.65 | -74.20 | 82.28 | 0.9597 | 183.0 | 84.1 | |
|
previous
or next observation for the same group /

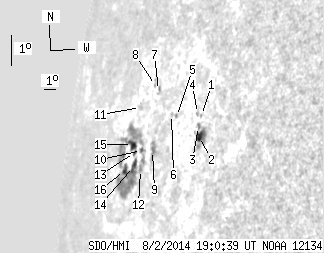

back to the solar disc SDO HMI 2014-08-02 19:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 1.21 | 10.72 | 177.84 | -69.02 | 80.77 | 0.9310 | -354.0 | -368.6 | |
| 4.43 | 14.11 | 5.92 | 18.73 | 10.09 | 177.97 | -68.89 | 81.47 | 0.9303 | -681.7 | -449.5 | |
| 0.00 | 2.26 | 0.00 | 3.05 | 10.37 | 177.75 | -69.11 | 81.15 | 0.9316 | -558.0 | -519.4 | |
| 0.00 | 1.27 | 0.00 | 1.73 | 10.75 | 177.47 | -69.38 | 80.73 | 0.9332 | -350.0 | -269.7 | |
| 0.00 | 1.54 | 0.00 | 2.28 | 10.49 | 175.66 | -71.20 | 80.93 | 0.9440 | -5.0 | 85.2 | |
| 0.00 | 1.09 | 0.00 | 1.65 | 10.50 | 175.16 | -71.70 | 80.90 | 0.9468 | 351.0 | 336.2 | |
| 0.00 | 2.08 | 0.00 | 3.45 | 11.08 | 173.44 | -73.42 | 80.20 | 0.9558 | 381.0 | 365.1 | |
| 0.00 | 0.90 | 0.00 | 1.54 | 11.19 | 173.02 | -73.83 | 80.06 | 0.9578 | 5.0 | -94.7 | |
| 0.00 | 8.32 | 0.00 | 13.54 | 9.26 | 173.87 | -72.99 | 82.13 | 0.9541 | 684.0 | 477.7 | |
| 0.99 | 6.24 | 1.73 | 10.74 | 9.15 | 172.71 | -74.14 | 82.18 | 0.9599 | 581.6 | 524.8 | |
| 0.00 | 2.35 | 0.00 | 4.29 | 10.39 | 171.81 | -75.04 | 80.83 | 0.9638 | 322.0 | 293.1 | |
| 0.00 | 2.98 | 0.00 | 5.15 | 8.58 | 172.91 | -73.94 | 82.78 | 0.9591 | 358.0 | 371.1 | |
| 1.18 | 27.59 | 2.13 | 51.36 | 9.01 | 171.97 | -74.89 | 82.27 | 0.9634 | 513.1 | 239.7 | |
| 4.88 | 60.96 | 8.82 | 115.99 | 8.59 | 172.09 | -74.76 | 82.71 | 0.9630 | 498.9 | -6.1 | |
| 4.88 | -13.00 | 9.08 | -13.00 | 9.22 | 171.60 | -75.26 | 82.03 | 0.9651 | 457.6 | 999999 | |
| 2.80 | -14.00 | 5.38 | -14.00 | 8.37 | 171.11 | -75.75 | 82.88 | 0.9675 | 79.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
