SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.61 | 0.00 | 13.66 | 10.28 | 258.59 | 12.29 | 286.94 | 0.2478 | 589.0 | 496.9 | |
|
previous
or next observation for the same group /

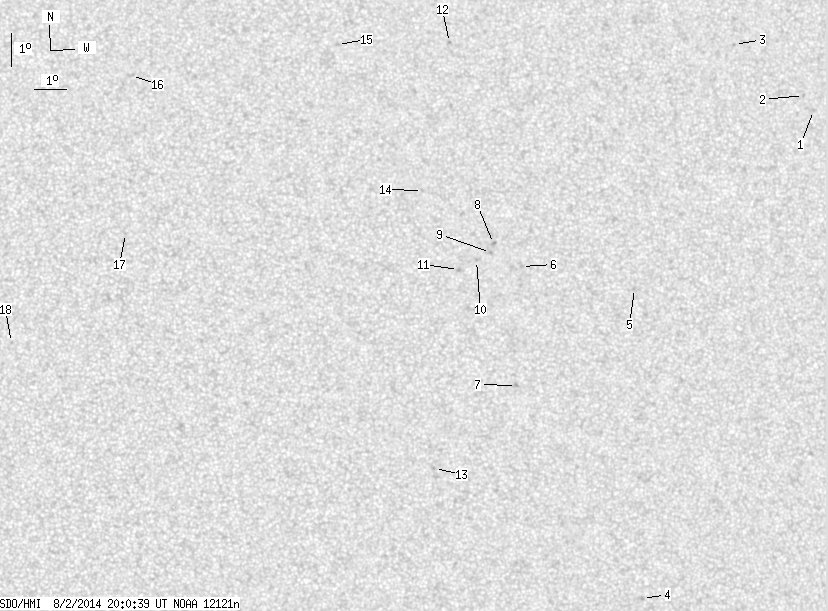

back to the solar disc SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.69 | 13.68 | 269.98 | 23.68 | 290.24 | 0.4176 | -645.0 | -563.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 14.15 | 269.69 | 23.39 | 291.53 | 0.4155 | -792.0 | -652.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 15.81 | 267.53 | 21.22 | 297.19 | 0.3933 | -789.0 | -606.6 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -0.98 | 263.71 | 17.41 | 248.96 | 0.3218 | 778.0 | 668.9 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 8.46 | 263.66 | 17.35 | 279.52 | 0.3005 | 778.0 | 500.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 9.24 | 260.08 | 13.78 | 284.60 | 0.2440 | 829.0 | 636.7 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 5.62 | 259.80 | 13.50 | 269.53 | 0.2334 | 893.0 | 743.7 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 9.96 | 259.22 | 12.92 | 288.45 | 0.2332 | 915.0 | 742.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.69 | 259.12 | 12.81 | 287.44 | 0.2302 | 1061.0 | 862.1 | |
| 0.00 | 0.99 | 0.00 | 0.51 | 9.45 | 258.66 | 12.36 | 286.97 | 0.2218 | 847.0 | 691.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 9.19 | 258.09 | 11.79 | 286.49 | 0.2112 | 941.0 | 850.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.15 | 258.14 | 11.84 | 312.44 | 0.2681 | 931.0 | 725.1 | |
| 0.00 | 0.99 | 0.00 | 0.50 | 3.16 | 257.20 | 10.90 | 256.33 | 0.1951 | 827.0 | 699.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.62 | 257.04 | 10.74 | 299.10 | 0.2099 | 712.0 | 574.1 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 16.15 | 254.54 | 8.23 | 322.48 | 0.2269 | 821.0 | 673.7 | |
| 0.00 | 2.98 | 0.00 | 1.50 | 15.26 | 247.98 | 1.68 | 350.17 | 0.1660 | 802.0 | 683.5 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 10.42 | 247.75 | 1.45 | 342.48 | 0.0832 | 827.0 | 562.8 | |
| 0.00 | 0.99 | 0.00 | 0.49 | 7.11 | 244.24 | -2.06 | 59.21 | 0.0417 | 866.0 | 621.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
