SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.77 | 17.83 | 4.85 | 9.86 | -20.57 | 248.92 | 2.62 | 185.46 | 0.4496 | 944.8 | 610.5 | |
|
previous
or next observation for the same group /

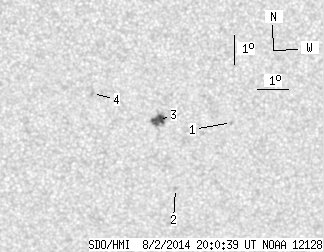

back to the solar disc SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.52 | 251.20 | 4.90 | 190.21 | 0.4535 | 685.0 | 539.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.77 | 249.43 | 3.13 | 185.99 | 0.4841 | 754.0 | 573.5 | |
| 8.77 | 13.66 | 4.85 | 7.55 | -20.43 | 248.83 | 2.53 | 185.32 | 0.4471 | 1043.2 | 629.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.51 | 246.68 | 0.38 | 180.84 | 0.4308 | 918.0 | 660.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
