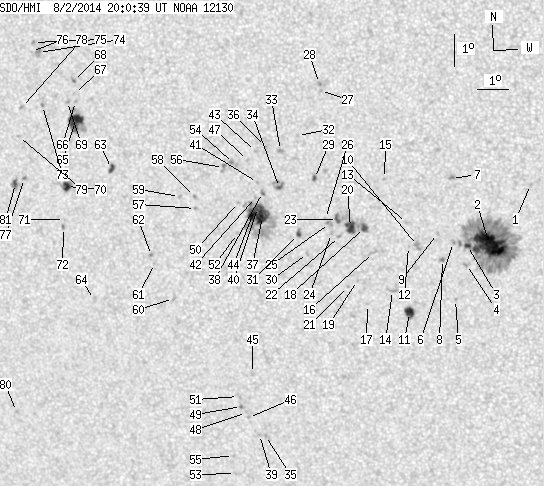

SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 127.79 | 517.84 | 68.84 | 278.44 | -7.45 | 228.39 | -17.91 | 127.83 | 0.3850 | 442.7 | 310.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | -6.04 | 234.52 | -11.78 | 135.22 | 0.2896 | 779.0 | 619.7 | |
| 50.29 | 217.34 | 26.36 | 113.89 | -7.94 | 233.18 | -13.12 | 136.44 | 0.3278 | 1247.7 | 468.7 | |
| 2.17 | -2.00 | 1.14 | -2.00 | -7.99 | 232.48 | -13.82 | 135.05 | 0.3363 | 873.1 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.57 | -8.59 | 232.43 | -13.88 | 136.18 | 0.3439 | 661.0 | 539.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.70 | 232.03 | -14.27 | 137.55 | 0.3616 | -913.0 | -686.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -7.91 | 232.04 | -14.26 | 133.97 | 0.3405 | 772.0 | 692.1 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -5.91 | 232.04 | -14.26 | 129.42 | 0.3186 | -855.0 | -721.4 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -8.45 | 231.67 | -14.63 | 134.37 | 0.3510 | 978.0 | 774.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -7.64 | 231.54 | -14.76 | 132.41 | 0.3434 | 901.0 | 596.8 | |
| 0.00 | 4.43 | 0.00 | 2.35 | -8.03 | 230.89 | -15.41 | 132.01 | 0.3556 | 1021.0 | 850.1 | |
| 6.78 | 9.32 | 3.64 | 4.99 | -10.15 | 230.54 | -15.76 | 135.54 | 0.3834 | 967.2 | 553.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -8.07 | 230.60 | -15.70 | 131.56 | 0.3595 | 771.0 | 575.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -7.32 | 230.57 | -15.73 | 129.88 | 0.3520 | 529.0 | 391.9 | |
| 0.00 | 3.98 | 0.00 | 2.13 | -9.47 | 230.03 | -16.28 | 133.34 | 0.3817 | 857.0 | 642.4 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -5.97 | 229.92 | -16.39 | 125.67 | 0.3469 | 829.0 | 668.2 | |
| 0.00 | 4.43 | 0.00 | 2.37 | -8.29 | 229.47 | -16.83 | 130.03 | 0.3758 | 756.0 | 582.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -9.93 | 229.20 | -17.11 | 132.80 | 0.3965 | 756.0 | 575.3 | |
| 2.98 | 36.45 | 1.59 | 19.47 | -7.51 | 229.22 | -17.08 | 127.98 | 0.3711 | 1158.0 | 613.8 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -9.19 | 228.91 | -17.39 | 130.90 | 0.3919 | 913.0 | 679.8 | |
| 7.33 | -18.00 | 3.92 | -18.00 | -7.53 | 228.77 | -17.53 | 127.28 | 0.3770 | 1077.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.38 | 228.61 | -17.69 | 130.79 | 0.3977 | 710.0 | 578.1 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -7.82 | 228.40 | -17.90 | 127.32 | 0.3846 | 798.0 | 615.5 | |
| 1.81 | -18.00 | 0.97 | -18.00 | -7.29 | 228.36 | -17.94 | 126.14 | 0.3800 | 950.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -7.74 | 228.15 | -18.16 | 126.75 | 0.3870 | 681.0 | 642.3 | |
| 0.00 | 3.44 | 0.00 | 1.84 | -7.42 | 228.09 | -18.21 | 126.02 | 0.3847 | 739.0 | 738.3 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -7.27 | 227.97 | -18.33 | 125.51 | 0.3848 | 474.0 | 411.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -3.31 | 227.94 | -18.36 | 116.18 | 0.3520 | -891.0 | -718.5 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -3.09 | 227.91 | -18.39 | 115.60 | 0.3508 | -885.0 | -778.2 | |
| 0.99 | 2.35 | 0.53 | 1.26 | -6.04 | 227.67 | -18.63 | 122.36 | 0.3778 | 976.6 | 830.5 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -8.39 | 227.34 | -18.97 | 126.87 | 0.4036 | 760.0 | 633.6 | |
| 1.54 | 4.07 | 0.83 | 2.20 | -7.80 | 227.07 | -19.23 | 125.30 | 0.4015 | 890.6 | 662.5 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -4.72 | 227.16 | -19.14 | 118.65 | 0.3739 | 747.0 | 532.1 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -5.20 | 226.60 | -19.71 | 119.04 | 0.3857 | 1008.0 | 885.7 | |
| 1.18 | 8.32 | 0.63 | 4.49 | -6.35 | 226.52 | -19.78 | 121.50 | 0.3961 | 1110.0 | 843.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -14.24 | 225.51 | -20.79 | 134.48 | 0.4841 | -835.0 | -677.0 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.10 | 226.11 | -20.19 | 118.20 | 0.3917 | 774.0 | 569.9 | |
| 14.47 | 74.98 | 7.86 | 40.78 | -7.28 | 225.92 | -20.38 | 122.67 | 0.4120 | 1128.1 | 331.1 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -6.53 | 225.96 | -20.34 | 121.15 | 0.4053 | 1063.0 | 882.4 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -14.22 | 225.31 | -20.99 | 134.17 | 0.4860 | -639.0 | -518.6 | |
| 3.80 | -37.00 | 2.06 | -37.00 | -7.00 | 225.77 | -20.53 | 121.91 | 0.4117 | 1021.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.22 | 225.81 | -20.49 | 120.31 | 0.4048 | 724.0 | 574.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -6.69 | 225.72 | -20.58 | 121.20 | 0.4098 | 642.0 | 512.7 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -5.26 | 225.78 | -20.52 | 118.18 | 0.3977 | 726.0 | 561.4 | |
| 8.05 | -37.00 | 4.38 | -37.00 | -7.23 | 225.60 | -20.70 | 122.15 | 0.4160 | 907.8 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -12.26 | 225.26 | -21.04 | 130.99 | 0.4667 | -817.0 | -636.8 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.68 | 225.00 | -21.31 | 132.92 | 0.4840 | -759.0 | -556.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -5.55 | 225.51 | -20.79 | 118.49 | 0.4037 | 809.0 | 640.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.52 | 224.94 | -21.36 | 132.60 | 0.4830 | -761.0 | -619.7 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.34 | 224.79 | -21.51 | 132.10 | 0.4828 | -810.0 | -678.8 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -6.87 | 225.16 | -21.15 | 120.87 | 0.4190 | 546.0 | 447.0 | |
| 0.00 | 2.80 | 0.00 | 1.58 | -13.02 | 224.72 | -21.58 | 131.51 | 0.4804 | -575.0 | -587.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.84 | 225.07 | -21.23 | 122.73 | 0.4282 | 281.0 | 200.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -15.52 | 224.36 | -21.94 | 134.84 | 0.5097 | -640.0 | -474.6 | |
| 0.00 | 3.98 | 0.00 | 2.16 | -5.66 | 225.05 | -21.26 | 118.19 | 0.4110 | 793.0 | 685.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -14.94 | 224.36 | -21.94 | 133.98 | 0.5037 | -643.0 | -523.8 | |
| 0.00 | 3.80 | 0.00 | 2.07 | -5.80 | 224.71 | -21.59 | 118.10 | 0.4167 | 735.0 | 605.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -7.11 | 223.72 | -22.58 | 119.69 | 0.4404 | 718.0 | 524.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -6.74 | 223.71 | -22.59 | 118.93 | 0.4377 | 865.0 | 672.3 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -6.76 | 223.21 | -23.09 | 118.43 | 0.4447 | 689.0 | 494.5 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -9.97 | 222.80 | -23.50 | 124.01 | 0.4757 | -744.0 | -635.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -8.89 | 222.24 | -24.06 | 121.45 | 0.4741 | -754.0 | -646.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -8.65 | 222.16 | -24.15 | 120.91 | 0.4733 | -766.0 | -613.8 | |
| 2.53 | 4.52 | 1.42 | 2.54 | -5.98 | 220.97 | -25.34 | 114.72 | 0.4704 | 755.6 | 527.8 | |
| 0.00 | 2.80 | 0.00 | 1.61 | -10.12 | 220.09 | -26.21 | 121.41 | 0.5114 | -802.0 | -593.7 | |
| 16.37 | 29.94 | 9.22 | 16.86 | -4.58 | 219.81 | -26.49 | 111.03 | 0.4783 | -948.3 | -538.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -3.96 | 219.83 | -26.47 | 109.83 | 0.4746 | -850.0 | -557.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -3.71 | 219.81 | -26.50 | 109.32 | 0.4737 | -410.0 | -437.6 | |
| 0.36 | 1.99 | 0.20 | 1.12 | -3.31 | 219.79 | -26.52 | 108.51 | 0.4719 | -977.5 | -765.0 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -3.97 | 219.56 | -26.74 | 109.66 | 0.4786 | -772.0 | -595.8 | |
| 4.97 | 9.13 | 2.83 | 5.21 | -6.61 | 219.40 | -26.91 | 114.57 | 0.4962 | 934.7 | 547.3 | |
| 0.00 | 0.90 | 0.00 | 0.52 | -7.65 | 219.26 | -27.04 | 116.33 | 0.5048 | 457.0 | 349.7 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -7.90 | 219.21 | -27.10 | 116.74 | 0.5072 | 763.0 | 575.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -4.13 | 218.69 | -27.61 | 109.37 | 0.4919 | -813.0 | -647.0 | |
| 0.00 | 4.88 | 0.00 | 2.76 | -2.51 | 218.61 | -27.69 | 106.14 | 0.4853 | -883.0 | -731.1 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -2.21 | 218.44 | -27.86 | 105.44 | 0.4864 | -789.0 | -638.8 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -2.49 | 218.37 | -27.93 | 105.95 | 0.4887 | -545.0 | -430.6 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -6.43 | 217.95 | -28.35 | 113.10 | 0.5150 | -924.0 | -719.0 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -4.23 | 217.96 | -28.34 | 109.06 | 0.5028 | -934.0 | -662.0 | |
| 0.00 | 0.99 | 0.00 | 0.57 | -5.14 | 217.82 | -28.48 | 110.64 | 0.5096 | -921.0 | -656.3 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -13.85 | 216.92 | -29.38 | 124.30 | 0.5788 | -747.0 | -637.8 | |
| 2.17 | 6.87 | 1.26 | 3.98 | -6.60 | 217.63 | -28.67 | 113.16 | 0.5204 | -944.2 | -660.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
