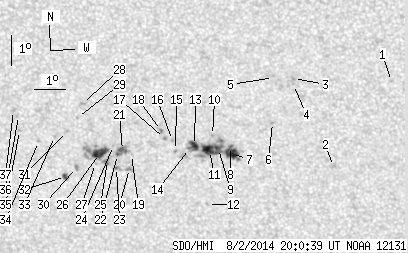

SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.94 | 141.73 | 25.32 | 78.15 | -18.87 | 238.47 | -7.83 | 163.00 | 0.4406 | 107.7 | -44.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 20:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.73 | -16.58 | 245.79 | -0.51 | 178.72 | 0.3839 | 883.0 | 659.5 | |
| 0.00 | 3.26 | 0.00 | 1.79 | -19.41 | 243.91 | -2.39 | 174.73 | 0.4309 | 719.0 | 472.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -16.49 | 242.68 | -3.62 | 170.96 | 0.3870 | 790.0 | 730.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -16.68 | 242.68 | -3.62 | 171.03 | 0.3901 | 682.0 | 521.0 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -16.46 | 242.05 | -4.26 | 169.39 | 0.3882 | 527.0 | 583.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -17.95 | 241.98 | -4.32 | 169.93 | 0.4119 | 794.0 | 649.9 | |
| 9.13 | 60.78 | 5.01 | 33.37 | -18.99 | 240.63 | -5.68 | 167.46 | 0.4324 | 1008.5 | 600.0 | |
| 0.27 | -7.00 | 0.15 | -7.00 | -18.76 | 240.60 | -5.70 | 167.28 | 0.4289 | 1083.0 | 999999 | |
| 3.53 | -7.00 | 1.93 | -7.00 | -18.83 | 240.21 | -6.09 | 166.48 | 0.4314 | 1138.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.40 | 240.03 | -6.27 | 165.85 | 0.4254 | 874.0 | 744.2 | |
| 11.12 | -7.00 | 6.11 | -7.00 | -18.90 | 239.92 | -6.38 | 165.90 | 0.4335 | 1007.5 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.73 | 239.78 | -6.53 | 166.64 | 0.4618 | 742.0 | 552.1 | |
| 5.25 | -7.00 | 2.88 | -7.00 | -18.74 | 239.44 | -6.86 | 164.79 | 0.4330 | 946.3 | 999999 | |
| 0.27 | -7.00 | 0.15 | -7.00 | -18.84 | 239.27 | -7.03 | 164.50 | 0.4352 | 700.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.91 | 238.82 | -7.49 | 163.60 | 0.4383 | -231.0 | -355.2 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -18.58 | 238.73 | -7.57 | 163.20 | 0.4336 | 797.0 | 634.4 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -18.52 | 238.48 | -7.82 | 162.62 | 0.4339 | 835.0 | 635.4 | |
| 0.00 | 1.99 | 0.00 | 1.09 | -18.25 | 238.39 | -7.91 | 162.25 | 0.4303 | 907.0 | 730.5 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -19.07 | 237.38 | -8.92 | 160.79 | 0.4475 | -417.0 | -364.8 | |
| 0.00 | 3.89 | 0.00 | 2.16 | -19.54 | 237.29 | -9.02 | 160.97 | 0.4549 | -721.0 | -569.7 | |
| 3.08 | 9.50 | 1.70 | 5.26 | -18.94 | 237.09 | -9.21 | 160.12 | 0.4471 | -893.8 | -699.8 | |
| 0.90 | -21.00 | 0.50 | -21.00 | -19.08 | 236.92 | -9.38 | 159.90 | 0.4500 | -930.0 | 999999 | |
| 0.45 | 2.62 | 0.25 | 1.46 | -19.51 | 236.86 | -9.44 | 160.13 | 0.4567 | -891.6 | -682.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -18.78 | 236.81 | -9.49 | 159.43 | 0.4462 | -869.0 | -738.0 | |
| 0.00 | 4.97 | 0.00 | 2.76 | -19.28 | 236.58 | -9.72 | 159.40 | 0.4548 | -882.0 | -696.9 | |
| 10.04 | 23.33 | 5.57 | 12.96 | -19.05 | 236.34 | -9.97 | 158.73 | 0.4528 | -1109.6 | -760.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -19.39 | 236.18 | -10.12 | 158.72 | 0.4586 | -408.0 | -343.3 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -17.39 | 235.88 | -10.42 | 156.33 | 0.4317 | -898.0 | -704.1 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -17.86 | 235.69 | -10.61 | 156.40 | 0.4396 | -692.0 | -578.5 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -19.54 | 235.55 | -10.75 | 157.65 | 0.4643 | -937.0 | -771.0 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -18.33 | 235.34 | -10.97 | 156.16 | 0.4485 | -887.0 | -628.8 | |
| 1.90 | 3.53 | 1.07 | 1.98 | -19.85 | 235.17 | -11.14 | 157.21 | 0.4710 | -958.9 | -700.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -18.51 | 234.90 | -11.40 | 155.49 | 0.4538 | -708.0 | -556.0 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.69 | 234.36 | -11.94 | 154.66 | 0.4598 | -858.0 | -628.4 | |
| 0.00 | 0.99 | 0.00 | 0.55 | -18.33 | 233.76 | -12.54 | 153.21 | 0.4590 | -876.0 | -707.4 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -17.83 | 233.77 | -12.53 | 152.69 | 0.4521 | -369.0 | -390.8 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -17.67 | 233.62 | -12.68 | 152.23 | 0.4510 | -825.0 | -583.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
