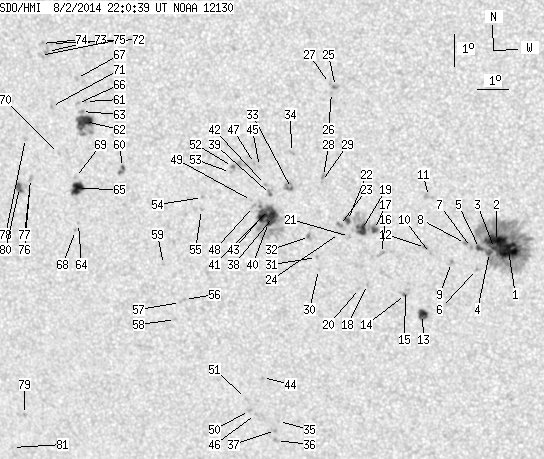

SDO HMI 2014-08-02 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.26 | 497.02 | 67.73 | 265.80 | -7.36 | 228.26 | -16.94 | 129.47 | 0.3728 | 459.1 | 319.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-02 22:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.15 | 212.83 | 12.60 | 111.00 | -8.09 | 233.45 | -11.75 | 139.94 | 0.3145 | 1278.2 | 487.3 | |
| 20.44 | -1.00 | 10.67 | -1.00 | -7.81 | 233.08 | -12.11 | 138.48 | 0.3151 | 1287.2 | 999999 | |
| 2.80 | -1.00 | 1.46 | -1.00 | -8.03 | 233.01 | -12.18 | 138.78 | 0.3186 | 939.2 | 999999 | |
| 2.44 | -1.00 | 1.28 | -1.00 | -8.16 | 232.85 | -12.35 | 138.68 | 0.3219 | 797.7 | 999999 | |
| 2.35 | -1.00 | 1.23 | -1.00 | -8.04 | 232.54 | -12.66 | 137.72 | 0.3239 | 851.5 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.71 | 232.42 | -12.77 | 138.81 | 0.3333 | 783.0 | 561.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.02 | 232.29 | -12.91 | 137.10 | 0.3264 | 833.0 | 704.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -7.90 | 232.10 | -13.09 | 136.44 | 0.3270 | 876.0 | 691.0 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.50 | 231.64 | -13.56 | 136.70 | 0.3395 | 1035.0 | 805.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -8.24 | 230.98 | -14.21 | 134.79 | 0.3439 | 878.0 | 717.8 | |
| 0.00 | 4.61 | 0.00 | 2.41 | -6.46 | 230.98 | -14.21 | 130.85 | 0.3239 | 768.0 | 673.8 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -8.05 | 230.83 | -14.36 | 134.10 | 0.3435 | 1088.0 | 812.4 | |
| 6.15 | 8.23 | 3.28 | 4.39 | -10.17 | 230.65 | -14.55 | 137.89 | 0.3704 | 954.6 | 689.0 | |
| 0.00 | 1.99 | 0.00 | 1.06 | -9.55 | 230.13 | -15.06 | 135.74 | 0.3688 | 960.0 | 755.0 | |
| 0.00 | 2.89 | 0.00 | 1.54 | -9.42 | 230.14 | -15.06 | 135.51 | 0.3672 | 818.0 | 606.6 | |
| 0.00 | 3.08 | 0.00 | 1.63 | -8.28 | 229.42 | -15.77 | 131.88 | 0.3628 | 744.0 | 619.1 | |
| 2.35 | 32.83 | 1.25 | 17.43 | -7.53 | 229.23 | -15.97 | 129.96 | 0.3573 | 1172.5 | 559.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.27 | 228.93 | -16.27 | 132.98 | 0.3795 | 971.0 | 715.6 | |
| 7.33 | -17.00 | 3.89 | -17.00 | -7.54 | 228.81 | -16.38 | 129.25 | 0.3626 | 1048.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.40 | 228.66 | -16.53 | 132.78 | 0.3841 | 830.0 | 637.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.78 | 228.42 | -16.78 | 129.07 | 0.3699 | 753.0 | 475.4 | |
| 2.26 | 4.07 | 1.20 | 2.16 | -7.28 | 228.38 | -16.82 | 127.93 | 0.3654 | 919.3 | 637.6 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -7.44 | 228.11 | -17.08 | 127.85 | 0.3704 | 910.0 | 766.4 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -7.69 | 228.10 | -17.09 | 128.36 | 0.3731 | 692.0 | 581.2 | |
| 0.00 | 2.44 | 0.00 | 1.28 | -3.13 | 228.11 | -17.08 | 117.48 | 0.3320 | -1035.0 | -930.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -3.32 | 227.98 | -17.21 | 117.79 | 0.3354 | -816.0 | -658.4 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -3.04 | 227.92 | -17.27 | 116.98 | 0.3341 | -681.0 | -624.3 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -5.93 | 227.66 | -17.54 | 123.75 | 0.3620 | 951.0 | 855.0 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -6.08 | 227.59 | -17.61 | 124.01 | 0.3644 | 854.0 | 741.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.84 | 227.37 | -17.82 | 129.54 | 0.3938 | 695.0 | 505.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.47 | 227.33 | -17.87 | 128.72 | 0.3906 | 783.0 | 668.9 | |
| 0.00 | 2.89 | 0.00 | 1.55 | -7.81 | 227.13 | -18.06 | 127.08 | 0.3867 | 912.0 | 798.1 | |
| 0.63 | 6.78 | 0.34 | 3.63 | -6.33 | 226.61 | -18.58 | 123.12 | 0.3798 | 1060.9 | 882.4 | |
| 0.00 | 2.62 | 0.00 | 1.40 | -5.21 | 226.65 | -18.54 | 120.63 | 0.3696 | 947.0 | 700.8 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -13.73 | 225.72 | -19.47 | 135.57 | 0.4645 | -694.0 | -466.9 | |
| 0.00 | 2.71 | 0.00 | 1.52 | -14.35 | 225.60 | -19.60 | 136.34 | 0.4725 | -800.0 | -698.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -14.03 | 225.60 | -19.60 | 135.84 | 0.4691 | -989.0 | -855.7 | |
| 8.23 | 65.21 | 4.44 | 35.22 | -7.23 | 225.99 | -19.20 | 124.17 | 0.3961 | 1214.9 | 401.0 | |
| 0.54 | 3.53 | 0.29 | 1.90 | -6.54 | 225.92 | -19.27 | 122.62 | 0.3909 | 951.0 | 785.1 | |
| 3.89 | -38.00 | 2.10 | -38.00 | -7.42 | 225.82 | -19.37 | 124.33 | 0.4001 | 953.8 | 999999 | |
| 3.17 | -38.00 | 1.71 | -38.00 | -7.01 | 225.84 | -19.36 | 123.51 | 0.3962 | 1081.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -6.24 | 225.77 | -19.42 | 121.75 | 0.3903 | 783.0 | 639.7 | |
| 9.50 | -38.00 | 5.13 | -38.00 | -7.21 | 225.63 | -19.56 | 123.63 | 0.4006 | 930.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -12.33 | 225.31 | -19.89 | 132.73 | 0.4543 | -794.0 | -623.9 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -5.68 | 225.60 | -19.59 | 120.29 | 0.3881 | 468.0 | 397.8 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -13.53 | 224.97 | -20.22 | 134.19 | 0.4705 | -791.0 | -593.1 | |
| 0.00 | 0.99 | 0.00 | 0.53 | -5.60 | 225.44 | -19.75 | 119.89 | 0.3896 | 820.0 | 619.8 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -6.94 | 225.35 | -19.84 | 122.69 | 0.4020 | 539.0 | 500.3 | |
| 0.00 | 0.90 | 0.00 | 0.49 | -6.75 | 225.30 | -19.90 | 122.22 | 0.4012 | 563.0 | 499.9 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -13.41 | 224.78 | -20.41 | 133.73 | 0.4714 | -853.0 | -700.1 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -13.03 | 224.69 | -20.51 | 132.99 | 0.4685 | -631.0 | -471.5 | |
| 0.36 | 6.96 | 0.20 | 3.76 | -5.71 | 224.72 | -20.47 | 119.25 | 0.4006 | 878.8 | 668.3 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -5.90 | 224.65 | -20.55 | 119.58 | 0.4031 | 613.0 | 449.1 | |
| 0.00 | 0.99 | 0.00 | 0.54 | -6.72 | 223.69 | -21.50 | 120.14 | 0.4227 | 842.0 | 577.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | -7.09 | 223.64 | -21.55 | 120.85 | 0.4264 | 667.0 | 599.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -9.94 | 222.90 | -22.29 | 125.40 | 0.4603 | -800.0 | -630.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -10.05 | 222.76 | -22.43 | 125.41 | 0.4629 | -655.0 | -555.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -10.59 | 222.55 | -22.64 | 126.12 | 0.4704 | -762.0 | -548.8 | |
| 0.00 | 0.90 | 0.00 | 0.50 | -8.87 | 222.28 | -22.92 | 122.69 | 0.4591 | -801.0 | -603.1 | |
| 1.18 | 5.16 | 0.65 | 2.86 | -5.89 | 221.08 | -24.12 | 115.68 | 0.4529 | 607.2 | 622.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -3.89 | 219.91 | -25.28 | 110.62 | 0.4571 | -753.0 | -571.5 | |
| 14.47 | 29.49 | 8.07 | 16.45 | -4.51 | 219.86 | -25.34 | 111.84 | 0.4615 | -994.8 | -577.8 | |
| 0.00 | 2.44 | 0.00 | 1.36 | -4.21 | 219.77 | -25.43 | 111.15 | 0.4610 | -896.0 | -704.3 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -7.70 | 219.48 | -25.71 | 117.64 | 0.4872 | 582.0 | 496.5 | |
| 10.31 | 13.12 | 5.81 | 7.39 | -6.61 | 219.52 | -25.68 | 115.64 | 0.4793 | 929.8 | 563.3 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -3.97 | 219.64 | -25.55 | 110.56 | 0.4615 | -825.0 | -584.3 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -3.20 | 219.63 | -25.56 | 108.98 | 0.4575 | -839.0 | -668.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -7.92 | 219.37 | -25.83 | 117.94 | 0.4904 | 651.0 | 512.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -6.27 | 219.47 | -25.73 | 114.95 | 0.4778 | 762.0 | 615.1 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -5.55 | 218.93 | -26.27 | 113.11 | 0.4808 | 674.0 | 541.2 | |
| 0.00 | 0.99 | 0.00 | 0.56 | -4.10 | 218.75 | -26.44 | 110.15 | 0.4750 | -784.0 | -651.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -2.16 | 218.81 | -26.39 | 106.26 | 0.4645 | -831.0 | -663.1 | |
| 0.00 | 3.80 | 0.00 | 2.13 | -2.41 | 218.67 | -26.53 | 106.69 | 0.4678 | -958.0 | -779.6 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -2.17 | 218.47 | -26.73 | 106.08 | 0.4696 | -712.0 | -517.6 | |
| 0.00 | 2.53 | 0.00 | 1.42 | -2.54 | 218.43 | -26.77 | 106.81 | 0.4719 | -545.0 | -496.8 | |
| 0.00 | 2.44 | 0.00 | 1.39 | -6.37 | 217.92 | -27.27 | 113.84 | 0.4998 | -908.0 | -622.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -6.75 | 217.87 | -27.33 | 114.48 | 0.5030 | -797.0 | -595.2 | |
| 0.00 | 2.08 | 0.00 | 1.18 | -5.13 | 217.82 | -27.38 | 111.45 | 0.4941 | -877.0 | -665.4 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -13.88 | 216.99 | -28.20 | 125.44 | 0.5653 | -795.0 | -661.0 | |
| 3.71 | 8.50 | 2.13 | 4.88 | -6.67 | 217.52 | -27.67 | 114.07 | 0.5072 | -898.9 | -600.4 | |
| 0.00 | 0.63 | 0.00 | 0.38 | -14.97 | 216.41 | -28.79 | 126.49 | 0.5808 | -583.0 | -497.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
