SDO HMI 2014-08-03 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.30 | 495.99 | 55.15 | 263.69 | -7.56 | 228.49 | -15.60 | 132.33 | 0.3586 | 364.0 | 347.8 | |
|
previous
or next observation for the same group /

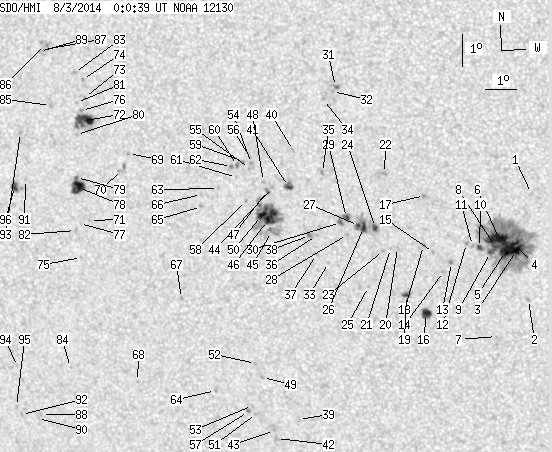

back to the solar disc SDO HMI 2014-08-03 00:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.37 | -6.35 | 234.20 | -9.90 | 141.01 | 0.2727 | 786.0 | 604.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.68 | 234.01 | -10.08 | 147.17 | 0.3195 | 813.0 | 648.1 | |
| 9.32 | 222.00 | 4.84 | 115.34 | -8.14 | 233.68 | -10.41 | 143.46 | 0.3016 | 1255.6 | 477.5 | |
| 4.34 | -3.00 | 2.25 | -3.00 | -7.93 | 233.60 | -10.49 | 142.79 | 0.2996 | 1435.0 | 999999 | |
| 8.05 | -3.00 | 4.19 | -3.00 | -8.18 | 233.34 | -10.75 | 142.63 | 0.3056 | 1136.9 | 999999 | |
| 18.09 | -3.00 | 9.40 | -3.00 | -7.81 | 233.16 | -10.93 | 141.42 | 0.3025 | 1367.4 | 999999 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -10.87 | 232.97 | -11.12 | 146.56 | 0.3453 | 607.0 | 539.1 | |
| 1.72 | -3.00 | 0.89 | -3.00 | -8.03 | 233.03 | -11.06 | 141.54 | 0.3067 | 961.2 | 999999 | |
| 1.09 | -3.00 | 0.57 | -3.00 | -8.22 | 232.87 | -11.22 | 141.52 | 0.3109 | 744.3 | 999999 | |
| 1.81 | -3.00 | 0.94 | -3.00 | -8.07 | 232.53 | -11.56 | 140.37 | 0.3125 | 852.2 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -8.01 | 232.31 | -11.78 | 139.73 | 0.3141 | 852.0 | 600.0 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -7.95 | 232.12 | -11.97 | 139.16 | 0.3153 | 987.0 | 729.4 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.56 | 231.63 | -12.46 | 139.25 | 0.3282 | 995.0 | 812.8 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -8.85 | 231.37 | -12.72 | 139.24 | 0.3347 | 605.0 | 543.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.26 | 231.08 | -13.01 | 137.39 | 0.3306 | 839.0 | 729.2 | |
| 6.24 | 8.78 | 3.31 | 4.65 | -10.19 | 230.78 | -13.31 | 140.47 | 0.3576 | 947.5 | 619.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -6.48 | 230.85 | -13.24 | 132.97 | 0.3124 | 964.0 | 865.9 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.05 | 230.77 | -13.32 | 136.28 | 0.3315 | 1064.0 | 734.2 | |
| 1.90 | 5.70 | 1.01 | 3.02 | -9.63 | 230.17 | -13.92 | 138.18 | 0.3573 | 894.3 | 704.4 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -8.13 | 229.94 | -14.15 | 134.72 | 0.3420 | 773.0 | 614.2 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -8.17 | 229.72 | -14.37 | 134.35 | 0.3450 | 786.0 | 611.2 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -5.83 | 229.61 | -14.48 | 128.84 | 0.3208 | 975.0 | 752.3 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -8.24 | 229.49 | -14.60 | 134.04 | 0.3485 | 847.0 | 664.4 | |
| 2.08 | 25.33 | 1.10 | 13.37 | -7.52 | 229.27 | -14.82 | 132.08 | 0.3432 | 1145.0 | 653.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -9.38 | 228.97 | -15.12 | 135.32 | 0.3676 | 860.0 | 673.5 | |
| 3.80 | -24.00 | 2.01 | -24.00 | -7.53 | 228.89 | -15.20 | 131.37 | 0.3480 | 1095.5 | 999999 | |
| 1.63 | -24.00 | 0.86 | -24.00 | -7.47 | 228.73 | -15.36 | 130.95 | 0.3493 | 974.3 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.76 | 228.37 | -15.72 | 130.91 | 0.3568 | 791.0 | 558.4 | |
| 2.08 | 3.71 | 1.10 | 1.96 | -7.23 | 228.36 | -15.73 | 129.74 | 0.3514 | 858.8 | 680.1 | |
| 0.90 | 3.35 | 0.48 | 1.77 | -7.39 | 228.16 | -15.93 | 129.74 | 0.3555 | 977.8 | 765.5 | |
| 0.00 | 3.53 | 0.00 | 1.84 | -3.18 | 228.12 | -15.97 | 119.29 | 0.3164 | -1056.0 | -868.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -3.34 | 228.02 | -16.07 | 119.56 | 0.3191 | -832.0 | -715.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.66 | 227.72 | -16.37 | 131.62 | 0.3743 | 689.0 | 528.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -3.59 | 227.73 | -16.36 | 119.80 | 0.3254 | -768.0 | -440.5 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -5.85 | 227.64 | -16.45 | 125.34 | 0.3469 | 708.0 | 676.3 | |
| 0.00 | 0.90 | 0.00 | 0.48 | -7.82 | 227.37 | -16.72 | 129.29 | 0.3698 | 848.0 | 680.6 | |
| 0.00 | 2.17 | 0.00 | 1.16 | -8.42 | 227.35 | -16.74 | 130.49 | 0.3763 | 821.0 | 548.7 | |
| 0.00 | 2.71 | 0.00 | 1.45 | -7.83 | 227.15 | -16.94 | 128.93 | 0.3727 | 888.0 | 734.9 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -13.69 | 226.43 | -17.66 | 138.31 | 0.4449 | -546.0 | -561.0 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -5.20 | 226.73 | -17.36 | 122.33 | 0.3531 | 668.0 | 543.2 | |
| 2.62 | 5.70 | 1.40 | 3.03 | -6.32 | 226.53 | -17.56 | 124.65 | 0.3660 | 1045.4 | 820.0 | |
| 0.00 | 2.62 | 0.00 | 1.46 | -14.33 | 225.65 | -18.44 | 138.06 | 0.4603 | -831.0 | -715.7 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -14.08 | 225.61 | -18.48 | 137.60 | 0.4579 | -974.0 | -842.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -6.37 | 226.02 | -18.07 | 123.97 | 0.3733 | 868.0 | 732.3 | |
| 0.00 | 15.83 | 0.00 | 8.50 | -7.74 | 225.93 | -18.16 | 126.80 | 0.3874 | 835.0 | 284.3 | |
| 3.71 | 49.57 | 1.99 | 26.59 | -7.40 | 225.81 | -18.28 | 125.91 | 0.3856 | 952.8 | 717.0 | |
| 0.00 | 2.99 | 0.00 | 1.60 | -6.47 | 225.85 | -18.24 | 123.94 | 0.3764 | 1030.0 | 809.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.19 | 225.74 | -18.36 | 123.15 | 0.3755 | 643.0 | 568.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -12.38 | 225.35 | -18.74 | 134.52 | 0.4419 | -847.0 | -628.6 | |
| 4.25 | -46.00 | 2.28 | -46.00 | -7.25 | 225.63 | -18.46 | 125.31 | 0.3866 | 971.7 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.16 | -13.55 | 225.06 | -19.03 | 135.95 | 0.4578 | -527.0 | -589.0 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -11.94 | 225.16 | -18.94 | 133.49 | 0.4394 | -664.0 | -575.2 | |
| 0.00 | 0.72 | 0.00 | 0.40 | -13.29 | 224.95 | -19.14 | 135.39 | 0.4562 | -706.0 | -489.6 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -5.64 | 225.37 | -18.72 | 121.39 | 0.3758 | 890.0 | 768.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.80 | 225.30 | -18.79 | 121.65 | 0.3781 | 611.0 | 451.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -5.43 | 225.31 | -18.78 | 120.82 | 0.3748 | 732.0 | 542.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -13.49 | 224.80 | -19.29 | 135.48 | 0.4600 | -788.0 | -701.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -6.80 | 225.16 | -18.93 | 123.67 | 0.3887 | 578.0 | 498.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -5.59 | 225.11 | -18.98 | 120.92 | 0.3789 | 746.0 | 720.5 | |
| 0.00 | 2.26 | 0.00 | 1.21 | -5.72 | 224.91 | -19.18 | 120.95 | 0.3827 | 901.0 | 722.1 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -6.09 | 224.87 | -19.22 | 121.72 | 0.3865 | 513.0 | 375.4 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -5.76 | 224.72 | -19.37 | 120.77 | 0.3858 | 857.0 | 727.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -6.46 | 224.27 | -19.82 | 121.71 | 0.3978 | 693.0 | 520.8 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -12.85 | 223.76 | -20.33 | 132.96 | 0.4648 | -655.0 | -571.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -7.04 | 223.69 | -20.41 | 122.18 | 0.4106 | 608.0 | 513.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.66 | 223.70 | -20.39 | 121.42 | 0.4072 | 640.0 | 512.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -9.96 | 222.86 | -21.23 | 126.77 | 0.4472 | -829.0 | -670.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -12.66 | 221.16 | -22.93 | 129.25 | 0.4929 | -675.0 | -529.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -5.48 | 221.35 | -22.74 | 116.23 | 0.4307 | -870.0 | -695.1 | |
| 0.00 | 4.79 | 0.00 | 2.64 | -5.98 | 221.13 | -22.96 | 117.05 | 0.4374 | 719.0 | 608.1 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -7.62 | 219.94 | -24.15 | 119.04 | 0.4657 | -672.0 | -568.6 | |
| 13.39 | 24.06 | 7.40 | 13.30 | -4.51 | 219.92 | -24.17 | 112.86 | 0.4447 | -1017.5 | -610.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -3.80 | 219.95 | -24.14 | 111.39 | 0.4401 | -845.0 | -647.9 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -3.25 | 219.90 | -24.19 | 110.17 | 0.4377 | -972.0 | -776.4 | |
| 0.00 | 0.81 | 0.00 | 0.46 | -8.80 | 219.59 | -24.50 | 120.85 | 0.4793 | -678.0 | -589.4 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -4.21 | 219.83 | -24.26 | 112.14 | 0.4441 | -929.0 | -706.9 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -7.73 | 219.59 | -24.50 | 118.89 | 0.4712 | 469.0 | 507.5 | |
| 11.85 | 17.10 | 6.62 | 9.54 | -6.60 | 219.63 | -24.46 | 116.78 | 0.4627 | 938.6 | 512.6 | |
| 0.54 | -78.00 | 0.30 | -78.00 | -6.30 | 219.58 | -24.51 | 116.13 | 0.4612 | 728.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -4.96 | 219.64 | -24.45 | 113.52 | 0.4516 | -666.0 | -541.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -3.97 | 219.68 | -24.41 | 111.50 | 0.4450 | -789.0 | -614.0 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -7.95 | 219.44 | -24.65 | 119.16 | 0.4749 | 694.0 | 443.6 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -3.05 | 219.64 | -24.45 | 109.52 | 0.4404 | -851.0 | -656.6 | |
| 0.00 | 0.63 | 0.00 | 0.37 | -12.31 | 218.90 | -25.19 | 126.10 | 0.5166 | -722.0 | -601.3 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -4.10 | 218.80 | -25.29 | 111.05 | 0.4585 | -795.0 | -540.6 | |
| 0.00 | 3.80 | 0.00 | 2.11 | -2.23 | 218.68 | -25.41 | 107.07 | 0.4504 | -832.0 | -711.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -2.38 | 218.61 | -25.48 | 107.35 | 0.4522 | -766.0 | -628.9 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -13.87 | 217.72 | -26.37 | 127.27 | 0.5440 | -483.0 | -468.6 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -2.45 | 218.47 | -25.62 | 107.40 | 0.4545 | -539.0 | -467.3 | |
| 0.00 | 0.54 | 0.00 | 0.32 | -14.01 | 217.56 | -26.53 | 127.31 | 0.5470 | -615.0 | -579.5 | |
| 0.00 | 0.90 | 0.00 | 0.51 | -6.43 | 217.84 | -26.25 | 114.83 | 0.4862 | -811.0 | -627.4 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -13.91 | 217.01 | -27.08 | 126.60 | 0.5525 | -717.0 | -632.3 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -4.98 | 217.74 | -26.35 | 111.97 | 0.4787 | -780.0 | -576.3 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -12.36 | 217.06 | -27.03 | 124.28 | 0.5394 | -371.0 | -373.2 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -13.66 | 216.87 | -27.22 | 126.08 | 0.5521 | -609.0 | -392.2 | |
| 3.89 | 6.06 | 2.21 | 3.45 | -6.67 | 217.45 | -26.64 | 114.93 | 0.4931 | -911.5 | -691.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
