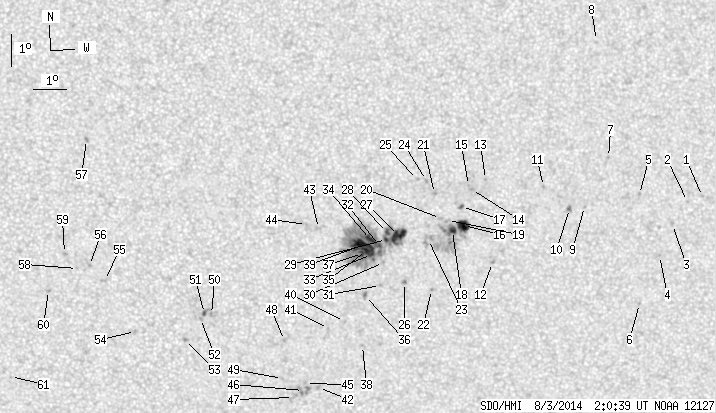

SDO HMI 2014-08-03 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.42 | 335.02 | 33.54 | 172.12 | -7.64 | 249.62 | 6.63 | 205.79 | 0.2664 | 504.3 | 336.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 02:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.20 | 259.47 | 16.48 | 233.88 | 0.3506 | 773.0 | 496.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.34 | 258.99 | 16.00 | 232.74 | 0.3458 | 735.0 | 552.9 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -7.04 | 258.54 | 15.55 | 230.33 | 0.3471 | 831.0 | 681.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.00 | 258.16 | 15.17 | 227.54 | 0.3527 | 607.0 | 435.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -6.08 | 257.46 | 14.47 | 230.53 | 0.3234 | 759.0 | 667.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -9.49 | 257.58 | 14.59 | 223.42 | 0.3630 | 726.0 | 519.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -4.90 | 256.46 | 13.47 | 231.44 | 0.2981 | 808.0 | 639.4 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -1.29 | 256.04 | 13.05 | 241.44 | 0.2582 | 377.0 | 497.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.40 | 255.74 | 12.75 | 226.11 | 0.3057 | 640.0 | 574.6 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -6.45 | 255.27 | 12.28 | 224.91 | 0.3007 | 981.0 | 796.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.75 | 254.44 | 11.45 | 224.60 | 0.2826 | 797.0 | 626.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -8.09 | 252.90 | 9.91 | 215.31 | 0.2962 | 790.0 | 722.5 | |
| 0.00 | 0.90 | 0.00 | 0.46 | -5.50 | 252.64 | 9.65 | 220.31 | 0.2590 | 852.0 | 674.5 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.80 | 252.21 | 9.22 | 218.28 | 0.2583 | 885.0 | 738.7 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -5.67 | 252.11 | 9.12 | 218.30 | 0.2557 | 921.0 | 761.1 | |
| 10.22 | 61.89 | 5.26 | 31.86 | -6.92 | 251.98 | 8.99 | 215.06 | 0.2712 | 1072.7 | 429.1 | |
| 0.63 | 2.44 | 0.33 | 1.25 | -6.32 | 251.90 | 8.91 | 216.14 | 0.2623 | 1044.4 | 819.2 | |
| 3.98 | -16.00 | 2.05 | -16.00 | -7.07 | 251.64 | 8.65 | 213.71 | 0.2701 | 1006.8 | 999999 | |
| 0.00 | 2.44 | 0.00 | 1.25 | -6.75 | 251.48 | 8.49 | 213.88 | 0.2641 | 796.0 | 649.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -6.69 | 251.26 | 8.27 | 213.33 | 0.2612 | 955.0 | 793.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.90 | 251.06 | 8.07 | 214.40 | 0.2483 | 881.0 | 778.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.90 | 251.02 | 8.03 | 208.43 | 0.2912 | -807.0 | -661.2 | |
| 0.00 | 9.32 | 0.00 | 4.79 | -7.34 | 250.90 | 7.91 | 210.86 | 0.2673 | 376.0 | 548.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -5.50 | 250.81 | 7.82 | 214.50 | 0.2402 | 807.0 | 676.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.46 | 250.53 | 7.54 | 213.62 | 0.2371 | 817.0 | 657.0 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -8.67 | 250.18 | 7.19 | 206.22 | 0.2813 | 926.0 | 774.3 | |
| 12.13 | 177.62 | 6.21 | 90.97 | -7.20 | 249.97 | 6.98 | 208.05 | 0.2575 | 1082.6 | 532.5 | |
| 1.99 | -27.00 | 1.02 | -27.00 | -7.10 | 249.63 | 6.64 | 207.05 | 0.2534 | 1193.4 | 999999 | |
| 1.81 | -27.00 | 0.93 | -27.00 | -7.32 | 249.60 | 6.61 | 206.56 | 0.2565 | 1103.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.03 | 249.52 | 6.53 | 205.08 | 0.2668 | 746.0 | 559.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.76 | 249.44 | 6.45 | 203.70 | 0.2773 | 756.0 | 580.7 | |
| 1.45 | -27.00 | 0.74 | -27.00 | -7.50 | 249.39 | 6.40 | 205.50 | 0.2577 | 1001.9 | 999999 | |
| 2.08 | -27.00 | 1.07 | -27.00 | -7.78 | 249.14 | 6.15 | 204.20 | 0.2603 | 985.3 | 999999 | |
| 6.06 | -27.00 | 3.10 | -27.00 | -7.31 | 249.11 | 6.12 | 204.84 | 0.2528 | 1197.0 | 999999 | |
| 4.89 | -27.00 | 2.50 | -27.00 | -7.65 | 248.99 | 6.00 | 203.85 | 0.2572 | 1219.8 | 999999 | |
| 0.00 | 3.26 | 0.00 | 1.68 | -9.06 | 248.98 | 5.99 | 201.76 | 0.2791 | 1014.0 | 759.7 | |
| 2.90 | -27.00 | 1.48 | -27.00 | -7.74 | 248.87 | 5.88 | 203.28 | 0.2578 | 1013.9 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.64 | 248.91 | 5.92 | 199.60 | 0.3035 | -822.0 | -723.4 | |
| 16.47 | -27.00 | 8.43 | -27.00 | -7.49 | 248.83 | 5.84 | 203.55 | 0.2537 | 1324.4 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.88 | 248.34 | 5.35 | 198.66 | 0.2883 | -732.0 | -547.6 | |
| 0.00 | 0.90 | 0.00 | 0.47 | -10.09 | 247.85 | 4.86 | 196.83 | 0.2892 | -595.0 | -460.7 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -11.97 | 247.56 | 4.57 | 194.26 | 0.3181 | -787.0 | -583.5 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -6.95 | 247.50 | 4.51 | 199.34 | 0.2369 | 598.0 | 446.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.82 | 247.13 | 4.14 | 198.03 | 0.2328 | 832.0 | 635.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -11.84 | 247.16 | 4.17 | 193.13 | 0.3143 | -1001.0 | -805.9 | |
| 0.00 | 8.42 | 0.00 | 4.39 | -12.06 | 247.10 | 4.11 | 192.79 | 0.3177 | -467.0 | -758.8 | |
| 0.00 | 4.89 | 0.00 | 2.55 | -12.28 | 246.79 | 3.80 | 191.71 | 0.3202 | -670.0 | -569.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -10.46 | 246.49 | 3.50 | 192.01 | 0.2895 | -917.0 | -688.0 | |
| 0.00 | 0.81 | 0.00 | 0.42 | -11.67 | 246.44 | 3.45 | 191.03 | 0.3092 | -738.0 | -598.0 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -9.63 | 244.22 | 1.23 | 184.53 | 0.2701 | -874.0 | -714.1 | |
| 0.81 | 3.89 | 0.42 | 2.00 | -9.59 | 244.01 | 1.02 | 183.75 | 0.2693 | -1088.9 | -805.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.75 | 243.89 | 0.90 | 183.26 | 0.2718 | -913.0 | -746.8 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -10.41 | 243.42 | 0.43 | 181.51 | 0.2827 | -976.0 | -767.0 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -10.16 | 241.88 | -1.11 | 176.06 | 0.2789 | -794.0 | -640.9 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -8.55 | 240.93 | -2.06 | 171.91 | 0.2536 | -700.0 | -568.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -8.08 | 240.47 | -2.52 | 169.81 | 0.2470 | -904.0 | -692.2 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -4.16 | 240.40 | -2.59 | 165.59 | 0.1816 | -1053.0 | -756.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -8.18 | 240.10 | -2.89 | 168.43 | 0.2497 | -517.0 | -475.4 | |
| 0.00 | 2.08 | 0.00 | 1.06 | -7.71 | 239.71 | -3.28 | 166.46 | 0.2434 | -974.0 | -716.1 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -8.87 | 239.20 | -3.79 | 165.66 | 0.2646 | -773.0 | -667.6 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -11.61 | 237.98 | -5.01 | 164.14 | 0.3142 | -583.0 | -640.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
