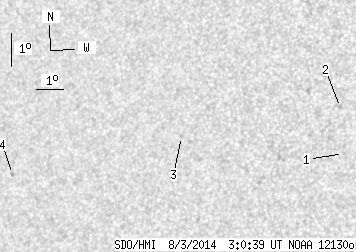

SDO HMI 2014-08-03 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.62 | 0.00 | 2.78 | 6.69 | 207.92 | -34.52 | 86.57 | 0.5639 | -67.8 | 74.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 03:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.72 | 0.00 | 0.41 | 6.81 | 213.97 | -28.47 | 86.65 | 0.4761 | -654.0 | -490.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 8.20 | 213.77 | -28.67 | 83.74 | 0.4797 | -854.0 | -731.2 | |
| 0.00 | 1.27 | 0.00 | 0.76 | 7.02 | 208.13 | -34.31 | 86.23 | 0.5629 | 651.0 | 514.9 | |
| 0.00 | 1.54 | 0.00 | 1.00 | 5.46 | 201.71 | -40.73 | 88.52 | 0.6520 | 586.0 | 464.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
