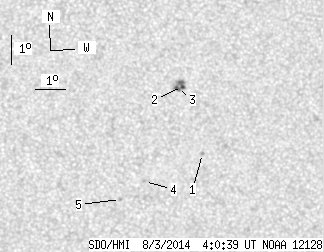

SDO HMI 2014-08-03 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.90 | 14.12 | 1.62 | 7.94 | -21.51 | 248.53 | 6.64 | 193.24 | 0.4746 | 770.0 | 753.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.76 | 249.62 | 7.73 | 194.51 | 0.4969 | 706.0 | 562.1 | |
| 1.27 | 9.59 | 0.71 | 5.34 | -20.44 | 248.84 | 6.95 | 194.34 | 0.4597 | 856.4 | 878.7 | |
| 1.63 | -2.00 | 0.91 | -2.00 | -20.51 | 248.68 | 6.79 | 193.99 | 0.4601 | 859.7 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -23.71 | 247.73 | 5.84 | 190.68 | 0.5047 | 703.0 | 564.3 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -24.33 | 246.95 | 5.06 | 189.07 | 0.5120 | 758.0 | 591.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
