SDO HMI 2014-08-03 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.01 | 126.45 | 20.81 | 69.19 | -18.85 | 238.48 | -3.41 | 172.43 | 0.4261 | -5.6 | -35.7 | |
|
previous
or next observation for the same group /

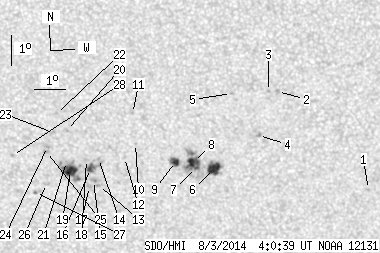

back to the solar disc SDO HMI 2014-08-03 04:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.65 | -19.76 | 245.82 | 3.93 | 188.47 | 0.4400 | 695.0 | 521.2 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -16.48 | 242.87 | 0.97 | 182.45 | 0.3832 | 773.0 | 693.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -16.48 | 242.58 | 0.69 | 181.73 | 0.3830 | 914.0 | 728.6 | |
| 0.00 | 2.08 | 0.00 | 1.13 | -17.93 | 242.26 | 0.37 | 180.87 | 0.4064 | 784.0 | 707.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -16.54 | 241.41 | -0.49 | 178.78 | 0.3840 | 865.0 | 705.7 | |
| 10.68 | 16.11 | 5.84 | 8.81 | -19.04 | 240.85 | -1.04 | 177.66 | 0.4242 | 967.9 | 664.2 | |
| 1.00 | 32.85 | 0.54 | 17.94 | -19.00 | 240.27 | -1.62 | 176.37 | 0.4242 | 870.8 | 585.1 | |
| 7.24 | -7.00 | 3.95 | -7.00 | -18.84 | 240.17 | -1.72 | 176.13 | 0.4216 | 1129.3 | 999999 | |
| 4.25 | 7.42 | 2.32 | 4.05 | -18.80 | 239.60 | -2.30 | 174.82 | 0.4218 | 979.0 | 748.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -18.21 | 238.32 | -3.57 | 171.77 | 0.4148 | 738.0 | 575.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -17.21 | 238.25 | -3.64 | 171.21 | 0.3992 | 751.0 | 483.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.68 | 237.96 | -3.93 | 171.12 | 0.4230 | 725.0 | 532.8 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -19.63 | 237.09 | -4.80 | 169.64 | 0.4400 | -638.0 | -509.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.72 | 237.12 | -4.77 | 169.29 | 0.4259 | -388.0 | -355.5 | |
| 0.00 | 2.44 | 0.00 | 1.35 | -19.46 | 236.93 | -4.96 | 169.23 | 0.4379 | -878.0 | -796.9 | |
| 3.80 | 9.87 | 2.09 | 5.41 | -19.06 | 236.85 | -5.04 | 168.87 | 0.4319 | -938.3 | -625.8 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -19.66 | 236.80 | -5.09 | 169.04 | 0.4415 | -704.0 | -610.6 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.75 | 236.73 | -5.16 | 168.46 | 0.4276 | -803.0 | -589.8 | |
| 11.04 | 24.44 | 6.07 | 13.43 | -19.13 | 236.20 | -5.69 | 167.51 | 0.4351 | -1057.2 | -734.7 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -17.79 | 236.12 | -5.77 | 166.59 | 0.4148 | -858.0 | -637.6 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.83 | 236.08 | -5.81 | 167.10 | 0.4309 | -753.0 | -660.2 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -17.23 | 235.82 | -6.07 | 165.57 | 0.4073 | -824.0 | -624.0 | |
| 0.00 | 2.53 | 0.00 | 1.38 | -17.86 | 235.67 | -6.23 | 165.63 | 0.4176 | -805.0 | -645.9 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -18.33 | 235.49 | -6.40 | 165.53 | 0.4255 | -872.0 | -792.9 | |
| 0.00 | 2.35 | 0.00 | 1.29 | -18.50 | 235.45 | -6.44 | 165.55 | 0.4283 | -976.0 | -761.3 | |
| 0.00 | 2.62 | 0.00 | 1.45 | -19.57 | 235.41 | -6.49 | 166.10 | 0.4448 | -656.0 | -556.9 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.88 | 235.03 | -6.86 | 165.52 | 0.4509 | -999.0 | -841.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -18.65 | 234.34 | -7.55 | 163.31 | 0.4352 | -806.0 | -584.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
