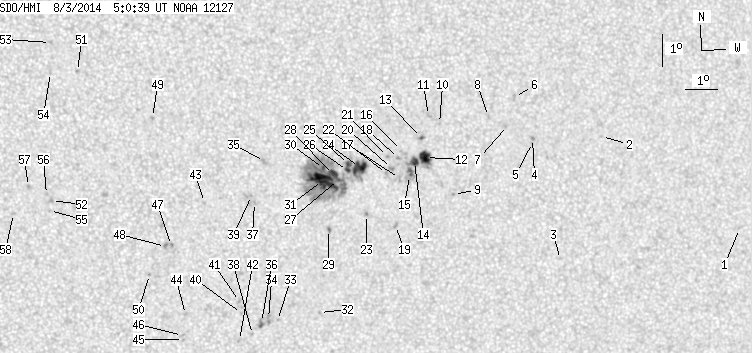

SDO HMI 2014-08-03 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.97 | 292.12 | 34.49 | 150.43 | -7.63 | 249.14 | 7.80 | 209.48 | 0.2746 | 457.4 | 302.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 05:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.54 | 0.00 | 0.30 | -9.41 | 262.18 | 20.84 | 233.68 | 0.4374 | 762.0 | 580.3 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -6.37 | 257.57 | 16.22 | 233.03 | 0.3490 | 611.0 | 489.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -10.19 | 256.41 | 15.07 | 223.00 | 0.3767 | 557.0 | 377.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -6.37 | 255.38 | 14.04 | 228.93 | 0.3211 | 1122.0 | 942.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -6.49 | 255.38 | 14.04 | 228.65 | 0.3225 | 731.0 | 646.8 | |
| 0.00 | 2.35 | 0.00 | 1.22 | -5.08 | 254.78 | 13.44 | 230.88 | 0.2997 | 760.0 | 704.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -5.94 | 254.58 | 13.24 | 228.28 | 0.3065 | 449.0 | 542.8 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.65 | 253.98 | 12.63 | 227.67 | 0.2957 | 766.0 | 623.9 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.06 | 252.94 | 11.60 | 219.71 | 0.3129 | 726.0 | 648.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.83 | 252.45 | 11.11 | 223.50 | 0.2797 | 714.0 | 576.6 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -5.57 | 252.10 | 10.76 | 223.22 | 0.2725 | 855.0 | 723.7 | |
| 9.87 | 24.26 | 5.10 | 12.54 | -6.88 | 252.04 | 10.69 | 219.93 | 0.2882 | 1076.8 | 587.2 | |
| 0.54 | 2.72 | 0.28 | 1.40 | -6.25 | 251.90 | 10.55 | 221.01 | 0.2787 | 944.8 | 752.1 | |
| 4.16 | -12.00 | 2.15 | -12.00 | -7.00 | 251.70 | 10.35 | 218.76 | 0.2861 | 1021.7 | 999999 | |
| 0.00 | 10.77 | 0.00 | 5.57 | -7.43 | 251.55 | 10.21 | 217.43 | 0.2904 | 713.0 | 479.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -6.65 | 251.28 | 9.94 | 218.40 | 0.2772 | 909.0 | 615.4 | |
| 0.00 | 2.53 | 0.00 | 1.31 | -7.52 | 251.24 | 9.90 | 216.39 | 0.2884 | 192.0 | 188.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -6.89 | 251.20 | 9.85 | 217.60 | 0.2796 | 963.0 | 854.1 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -8.99 | 251.15 | 9.81 | 213.30 | 0.3078 | -926.0 | -715.9 | |
| 0.00 | 2.35 | 0.00 | 1.21 | -7.20 | 250.98 | 9.64 | 216.34 | 0.2816 | 811.0 | 721.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.83 | 250.85 | 9.51 | 216.77 | 0.2752 | 906.0 | 829.9 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -7.36 | 250.83 | 9.49 | 215.58 | 0.2822 | 733.0 | 593.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.63 | 250.24 | 8.89 | 211.41 | 0.2945 | 953.0 | 805.8 | |
| 11.22 | 178.04 | 5.78 | 91.52 | -7.15 | 249.99 | 8.64 | 213.51 | 0.2714 | 1090.2 | 497.3 | |
| 2.26 | -24.00 | 1.16 | -24.00 | -7.05 | 249.65 | 8.30 | 212.65 | 0.2668 | 1203.7 | 999999 | |
| 1.63 | -24.00 | 0.84 | -24.00 | -7.24 | 249.62 | 8.27 | 212.18 | 0.2692 | 1197.0 | 999999 | |
| 1.18 | -24.00 | 0.61 | -24.00 | -7.52 | 249.34 | 8.00 | 210.78 | 0.2708 | 1066.5 | 999999 | |
| 5.52 | -24.00 | 2.84 | -24.00 | -7.36 | 249.19 | 7.84 | 210.58 | 0.2672 | 1094.2 | 999999 | |
| 0.36 | 2.17 | 0.19 | 1.12 | -9.08 | 249.06 | 7.72 | 207.19 | 0.2915 | 1027.2 | 801.8 | |
| 1.54 | -24.00 | 0.79 | -24.00 | -7.17 | 248.87 | 7.53 | 209.94 | 0.2617 | 1163.4 | 999999 | |
| 28.69 | -24.00 | 14.75 | -24.00 | -7.54 | 248.85 | 7.51 | 209.15 | 0.2670 | 1244.4 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -11.71 | 248.85 | 7.50 | 202.92 | 0.3296 | -734.0 | -560.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -11.95 | 247.54 | 6.19 | 199.00 | 0.3255 | -696.0 | -499.9 | |
| 0.00 | 3.35 | 0.00 | 1.75 | -11.88 | 247.25 | 5.91 | 198.26 | 0.3230 | -898.0 | -808.0 | |
| 0.00 | 3.62 | 0.00 | 1.85 | -6.92 | 247.05 | 5.71 | 203.97 | 0.2441 | 779.0 | 680.1 | |
| 0.00 | 4.34 | 0.00 | 2.27 | -12.01 | 247.04 | 5.69 | 197.51 | 0.3239 | -969.0 | -839.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -8.20 | 246.76 | 5.41 | 200.96 | 0.2622 | 935.0 | 722.4 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.39 | 246.76 | 5.42 | 196.37 | 0.3286 | -693.0 | -569.8 | |
| 0.00 | 0.63 | 0.00 | 0.32 | -7.98 | 246.66 | 5.32 | 200.92 | 0.2582 | 841.0 | 711.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -11.71 | 246.41 | 5.06 | 195.93 | 0.3162 | -712.0 | -539.1 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -11.33 | 246.34 | 4.99 | 196.07 | 0.3098 | -826.0 | -554.2 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.57 | 246.36 | 5.02 | 195.06 | 0.3298 | -792.0 | -601.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.19 | 245.22 | 3.87 | 195.33 | 0.2539 | -571.0 | -456.3 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -11.73 | 244.66 | 3.32 | 190.59 | 0.3098 | -772.0 | -664.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.53 | 244.61 | 3.26 | 189.96 | 0.3228 | -681.0 | -523.3 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -12.40 | 244.58 | 3.23 | 189.94 | 0.3206 | -793.0 | -492.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.53 | 244.21 | 2.86 | 190.47 | 0.2723 | -946.0 | -825.0 | |
| 0.00 | 2.53 | 0.00 | 1.30 | -9.56 | 244.02 | 2.68 | 189.79 | 0.2722 | -1171.0 | -933.6 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -5.52 | 243.61 | 2.26 | 191.19 | 0.2033 | -878.0 | -679.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -10.45 | 243.53 | 2.19 | 187.59 | 0.2857 | -941.0 | -766.9 | |
| 0.00 | 1.72 | 0.00 | 0.87 | -4.09 | 241.32 | -0.03 | 179.83 | 0.1749 | -869.0 | -631.3 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -8.11 | 240.51 | -0.83 | 176.60 | 0.2441 | -888.0 | -656.0 | |
| 0.00 | 1.36 | 0.00 | 0.68 | -3.20 | 240.49 | -0.85 | 174.66 | 0.1601 | -955.0 | -730.5 | |
| 0.00 | 1.54 | 0.00 | 0.77 | -4.12 | 240.49 | -0.85 | 175.14 | 0.1761 | -780.0 | -644.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.42 | 240.45 | -0.90 | 176.43 | 0.2495 | -405.0 | -373.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.92 | 240.36 | -0.99 | 175.93 | 0.2411 | -784.0 | -722.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -7.67 | 239.81 | -1.54 | 173.55 | 0.2377 | -995.0 | -764.1 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.52 | 239.34 | -2.00 | 172.11 | 0.2530 | -783.0 | -613.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
