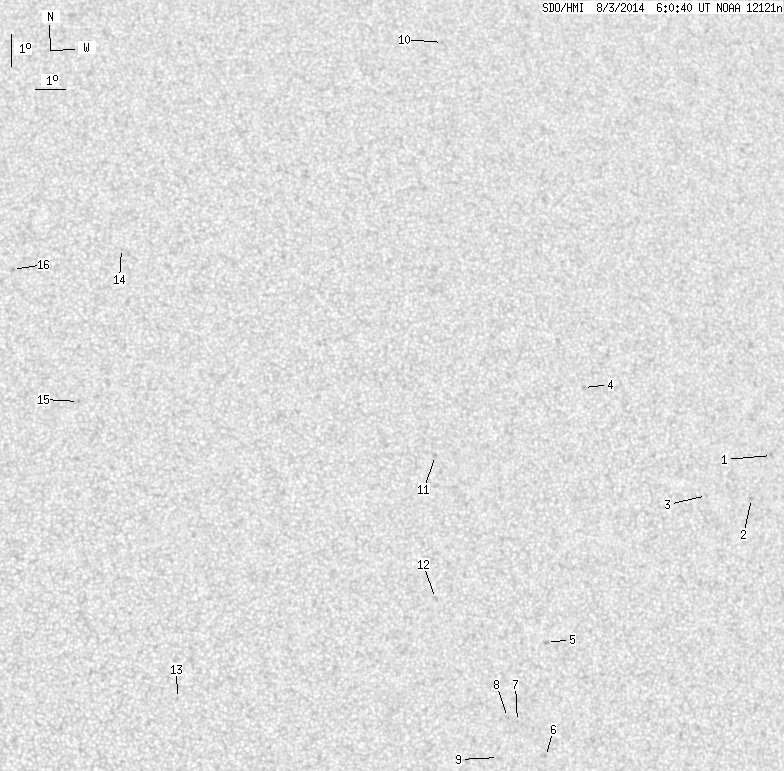

SDO HMI 2014-08-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.92 | 0.00 | 11.66 | 15.90 | 257.81 | 17.01 | 303.75 | 0.3564 | 403.7 | 312.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.24 | 17.16 | 268.56 | 27.76 | 294.85 | 0.4924 | -562.0 | -447.0 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 15.87 | 267.64 | 26.85 | 292.87 | 0.4734 | -849.0 | -697.8 | |
| 0.00 | 1.27 | 0.00 | 0.70 | 16.03 | 266.08 | 25.28 | 294.25 | 0.4520 | -649.0 | -450.3 | |
| 0.00 | 1.09 | 0.00 | 0.59 | 19.56 | 262.29 | 21.49 | 305.06 | 0.4235 | -728.0 | -578.6 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 11.74 | 260.20 | 19.41 | 288.19 | 0.3439 | 806.0 | 678.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 8.27 | 259.95 | 19.15 | 278.12 | 0.3294 | 719.0 | 524.0 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 9.36 | 259.10 | 18.30 | 281.84 | 0.3180 | 870.0 | 738.4 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 9.50 | 258.78 | 17.99 | 282.42 | 0.3132 | 877.0 | 681.1 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 8.29 | 258.43 | 17.63 | 278.70 | 0.3046 | 814.0 | 622.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 30.84 | 259.17 | 18.37 | 327.56 | 0.5064 | 681.0 | 452.3 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 17.61 | 257.03 | 16.24 | 307.73 | 0.3384 | 833.0 | 713.3 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 13.20 | 256.68 | 15.88 | 296.06 | 0.2979 | 729.0 | 633.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 10.32 | 248.35 | 7.55 | 300.89 | 0.1514 | 754.0 | 512.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | 24.34 | 247.09 | 6.30 | 342.47 | 0.3332 | 617.0 | 534.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 19.52 | 245.48 | 4.68 | 341.87 | 0.2485 | 768.0 | 612.0 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 23.70 | 243.43 | 2.63 | 352.16 | 0.3095 | 779.0 | 528.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
