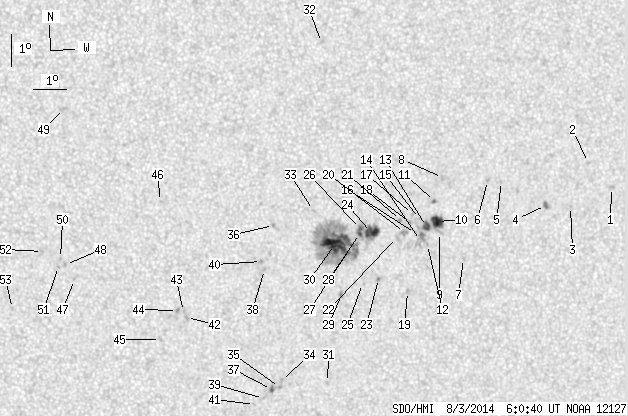

SDO HMI 2014-08-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.69 | 280.26 | 27.18 | 144.50 | -7.47 | 249.35 | 8.56 | 212.16 | 0.2785 | 455.5 | 403.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.05 | -5.95 | 257.52 | 16.72 | 234.84 | 0.3516 | 737.0 | 569.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -5.15 | 256.76 | 15.97 | 235.50 | 0.3339 | 767.0 | 514.4 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -6.50 | 256.23 | 15.43 | 231.33 | 0.3401 | 737.0 | 665.0 | |
| 0.91 | 3.26 | 0.47 | 1.71 | -6.45 | 255.44 | 14.64 | 229.95 | 0.3295 | 976.4 | 809.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.66 | 254.03 | 13.23 | 228.96 | 0.3033 | 813.0 | 607.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.62 | 253.59 | 12.79 | 228.09 | 0.2974 | 780.0 | 530.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.04 | 252.90 | 12.10 | 220.95 | 0.3180 | 795.0 | 615.4 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -5.49 | 252.18 | 11.38 | 225.04 | 0.2788 | 766.0 | 735.6 | |
| 0.00 | 2.53 | 0.00 | 1.32 | -7.20 | 252.12 | 11.32 | 220.84 | 0.2992 | 78.0 | 113.6 | |
| 9.78 | 13.31 | 5.07 | 6.89 | -6.86 | 252.05 | 11.25 | 221.44 | 0.2941 | 1083.9 | 662.8 | |
| 0.45 | 1.99 | 0.23 | 1.03 | -6.23 | 251.94 | 11.15 | 222.62 | 0.2851 | 975.2 | 757.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.57 | 251.75 | 10.96 | 219.12 | 0.3000 | 562.0 | 456.3 | |
| 3.98 | 5.97 | 2.06 | 3.09 | -7.01 | 251.71 | 10.91 | 220.23 | 0.2922 | 1025.0 | 875.0 | |
| 0.00 | 8.96 | 0.00 | 4.65 | -7.44 | 251.53 | 10.74 | 218.82 | 0.2960 | 447.0 | 392.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.75 | 251.49 | 10.69 | 220.21 | 0.2866 | 768.0 | 603.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.22 | 251.37 | 10.58 | 218.87 | 0.2914 | 508.0 | 459.6 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -6.62 | 251.27 | 10.47 | 219.91 | 0.2825 | 902.0 | 620.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -6.87 | 251.18 | 10.38 | 219.12 | 0.2848 | 943.0 | 805.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -9.03 | 251.17 | 10.37 | 214.71 | 0.3136 | -890.0 | -713.4 | |
| 0.00 | 4.07 | 0.00 | 2.11 | -7.18 | 251.03 | 10.23 | 218.03 | 0.2873 | 777.0 | 633.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -6.80 | 250.90 | 10.10 | 218.49 | 0.2810 | 966.0 | 749.3 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -7.33 | 250.78 | 9.99 | 217.03 | 0.2868 | 674.0 | 467.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.61 | 250.25 | 9.45 | 213.04 | 0.2992 | 912.0 | 765.2 | |
| 11.13 | 175.61 | 5.74 | 90.37 | -7.16 | 250.00 | 9.20 | 215.16 | 0.2768 | 1096.6 | 566.6 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -8.76 | 249.75 | 8.96 | 211.38 | 0.2969 | 516.0 | 571.7 | |
| 1.45 | -24.00 | 0.75 | -24.00 | -7.03 | 249.66 | 8.86 | 214.41 | 0.2717 | 1216.1 | 999999 | |
| 1.27 | -24.00 | 0.65 | -24.00 | -7.19 | 249.63 | 8.83 | 214.00 | 0.2736 | 1187.1 | 999999 | |
| 1.09 | -24.00 | 0.56 | -24.00 | -7.56 | 249.39 | 8.59 | 212.53 | 0.2766 | 1076.1 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.36 | -9.09 | 249.11 | 8.31 | 208.94 | 0.2963 | 1005.0 | 849.9 | |
| 21.72 | -24.00 | 11.18 | -24.00 | -7.52 | 248.86 | 8.06 | 210.98 | 0.2714 | 1306.8 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.19 | -11.88 | 248.74 | 7.94 | 203.92 | 0.3350 | -631.0 | -462.4 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -1.26 | 248.40 | 7.60 | 226.76 | 0.1824 | 330.0 | 368.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.45 | 248.19 | 7.40 | 210.92 | 0.2501 | -735.0 | -512.5 | |
| 0.00 | 2.35 | 0.00 | 1.23 | -11.79 | 247.30 | 6.50 | 200.04 | 0.3248 | -851.0 | -679.4 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -12.01 | 247.24 | 6.44 | 199.64 | 0.3280 | -978.0 | -797.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -6.90 | 246.97 | 6.17 | 205.72 | 0.2469 | 873.0 | 722.9 | |
| 0.91 | 2.63 | 0.47 | 1.38 | -12.07 | 246.99 | 6.19 | 198.88 | 0.3276 | -944.0 | -754.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.27 | 246.71 | 5.91 | 202.59 | 0.2664 | 872.0 | 743.1 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -12.36 | 246.75 | 5.95 | 197.91 | 0.3308 | -773.0 | -575.2 | |
| 0.00 | 2.17 | 0.00 | 1.11 | -8.02 | 246.61 | 5.81 | 202.63 | 0.2618 | 1059.0 | 833.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -12.55 | 246.47 | 5.67 | 196.95 | 0.3324 | -720.0 | -502.4 | |
| 0.00 | 2.08 | 0.00 | 1.07 | -9.76 | 244.31 | 3.52 | 192.60 | 0.2782 | -776.0 | -586.5 | |
| 0.00 | 0.54 | 0.00 | 0.28 | -9.57 | 244.22 | 3.42 | 192.42 | 0.2747 | -857.0 | -665.3 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -9.53 | 244.03 | 3.24 | 191.79 | 0.2735 | -1137.0 | -962.8 | |
| 0.00 | 2.26 | 0.00 | 1.17 | -10.45 | 243.51 | 2.72 | 189.39 | 0.2871 | -829.0 | -659.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -6.12 | 243.49 | 2.69 | 192.61 | 0.2148 | -882.0 | -634.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.54 | 240.85 | 0.06 | 180.23 | 0.2512 | -862.0 | -633.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.07 | 240.58 | -0.22 | 179.11 | 0.2432 | -954.0 | -816.1 | |
| 0.00 | 3.62 | 0.00 | 1.82 | -3.23 | 240.52 | -0.27 | 178.30 | 0.1600 | -999.0 | -723.4 | |
| 0.00 | 0.72 | 0.00 | 0.37 | -7.88 | 240.43 | -0.37 | 178.46 | 0.2400 | -926.0 | -829.1 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -8.14 | 240.36 | -0.43 | 178.23 | 0.2443 | -783.0 | -622.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -7.67 | 239.87 | -0.92 | 176.11 | 0.2367 | -955.0 | -718.7 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -9.46 | 238.94 | -1.86 | 173.14 | 0.2685 | -762.0 | -567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
