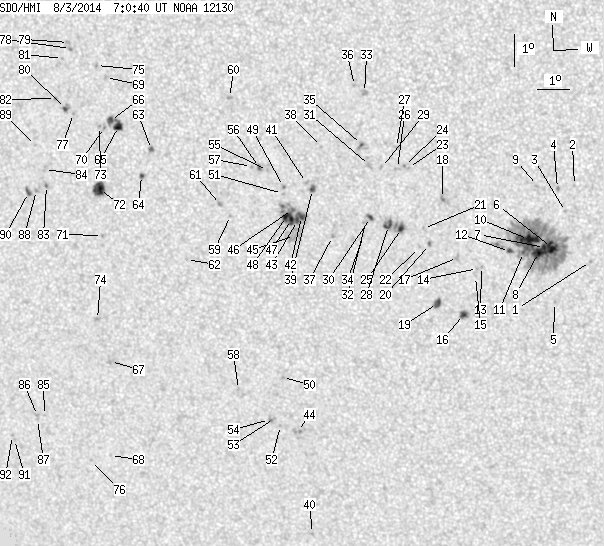

SDO HMI 2014-08-03 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.50 | 475.93 | 50.49 | 248.58 | -7.64 | 229.04 | -11.21 | 142.45 | 0.3118 | 352.5 | 305.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.50 | 235.17 | -5.08 | 160.61 | 0.2650 | -894.0 | -662.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.13 | 234.70 | -5.54 | 155.27 | 0.2306 | 747.0 | 527.4 | |
| 0.00 | 1.36 | 0.00 | 0.69 | -6.94 | 234.42 | -5.83 | 155.60 | 0.2452 | 835.0 | 573.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -6.23 | 234.18 | -6.07 | 153.43 | 0.2360 | 973.0 | 793.6 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.80 | 234.03 | -6.22 | 158.47 | 0.2922 | 802.0 | 648.5 | |
| 8.69 | 232.46 | 4.46 | 119.51 | -8.07 | 233.97 | -6.28 | 155.84 | 0.2658 | 1317.8 | 499.0 | |
| 2.53 | -6.00 | 1.30 | -6.00 | -8.07 | 233.75 | -6.50 | 155.11 | 0.2673 | 1392.9 | 999999 | |
| 11.13 | -6.00 | 5.73 | -6.00 | -8.23 | 233.56 | -6.69 | 154.73 | 0.2711 | 1142.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -6.14 | 233.57 | -6.68 | 150.97 | 0.2395 | 593.0 | 611.6 | |
| 17.29 | -6.00 | 8.89 | -6.00 | -7.83 | 233.26 | -6.99 | 153.06 | 0.2672 | 1279.4 | 999999 | |
| 0.81 | -6.00 | 0.42 | -6.00 | -8.24 | 233.10 | -7.15 | 153.22 | 0.2746 | 804.1 | 999999 | |
| 1.54 | -6.00 | 0.79 | -6.00 | -8.21 | 232.67 | -7.58 | 151.79 | 0.2776 | 932.2 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -8.69 | 231.78 | -8.46 | 149.95 | 0.2918 | 854.0 | 712.8 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.76 | 231.66 | -8.59 | 149.69 | 0.2938 | 1068.0 | 827.5 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -9.01 | 231.59 | -8.66 | 149.93 | 0.2980 | 637.0 | 492.0 | |
| 2.99 | 6.97 | 1.56 | 3.64 | -10.22 | 231.18 | -9.07 | 150.75 | 0.3188 | 1070.6 | 756.6 | |
| 0.00 | 3.08 | 0.00 | 1.59 | -8.42 | 231.04 | -9.20 | 147.32 | 0.2944 | 874.0 | 704.6 | |
| 0.00 | 2.17 | 0.00 | 1.12 | -6.58 | 230.62 | -9.63 | 142.35 | 0.2732 | 899.0 | 837.5 | |
| 3.35 | 6.06 | 1.75 | 3.17 | -9.88 | 230.38 | -9.87 | 148.08 | 0.3208 | 1018.9 | 724.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.03 | 230.18 | -10.07 | 144.17 | 0.2970 | 1001.0 | 840.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.53 | 230.01 | -10.24 | 142.69 | 0.2921 | 765.0 | 618.2 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -8.13 | 229.87 | -10.38 | 143.53 | 0.3015 | 873.0 | 696.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.64 | 229.58 | -10.67 | 137.20 | 0.2723 | 830.0 | 599.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.58 | 229.46 | -10.79 | 136.71 | 0.2729 | 1010.0 | 884.0 | |
| 2.99 | 18.10 | 1.55 | 9.40 | -7.54 | 229.32 | -10.93 | 140.90 | 0.2993 | 1111.8 | 812.2 | |
| 0.00 | 2.26 | 0.00 | 1.17 | -5.68 | 229.24 | -11.01 | 136.38 | 0.2767 | 693.0 | 599.2 | |
| 0.00 | 2.26 | 0.00 | 1.16 | -5.02 | 229.22 | -11.03 | 134.65 | 0.2690 | 412.0 | 314.0 | |
| 3.26 | -25.00 | 1.69 | -25.00 | -7.46 | 228.92 | -11.33 | 139.69 | 0.3025 | 1074.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -5.65 | 228.74 | -11.51 | 135.05 | 0.2822 | 582.0 | 523.7 | |
| 1.54 | 3.08 | 0.80 | 1.60 | -7.22 | 228.36 | -11.89 | 137.80 | 0.3056 | 1026.8 | 754.1 | |
| 0.00 | 3.80 | 0.00 | 1.97 | -5.60 | 228.37 | -11.88 | 133.99 | 0.2860 | -81.0 | 102.9 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -7.38 | 228.20 | -12.05 | 137.76 | 0.3094 | 922.0 | 737.2 | |
| 0.00 | 4.16 | 0.00 | 2.14 | -3.34 | 228.25 | -12.00 | 127.47 | 0.2626 | -1049.0 | -824.9 | |
| 0.00 | 0.72 | 0.00 | 0.38 | -7.79 | 228.12 | -12.13 | 138.46 | 0.3153 | 782.0 | 589.8 | |
| 0.54 | 2.90 | 0.28 | 1.50 | -4.95 | 228.13 | -12.12 | 131.75 | 0.2815 | -762.0 | -615.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -3.13 | 227.94 | -12.31 | 126.12 | 0.2646 | -895.0 | -706.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -7.84 | 227.15 | -13.10 | 136.35 | 0.3268 | 844.0 | 805.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -5.04 | 226.88 | -13.37 | 129.17 | 0.2984 | 795.0 | 639.1 | |
| 1.90 | 3.89 | 0.99 | 2.03 | -6.39 | 226.56 | -13.69 | 131.83 | 0.3170 | 1165.0 | 905.5 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -17.41 | 225.96 | -14.29 | 149.09 | 0.4602 | -785.0 | -610.5 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -6.17 | 226.38 | -13.87 | 130.94 | 0.3169 | 899.0 | 655.1 | |
| 3.17 | 37.66 | 1.66 | 19.79 | -7.24 | 226.19 | -14.06 | 133.01 | 0.3311 | 1137.2 | 763.8 | |
| 1.99 | -42.00 | 1.05 | -42.00 | -7.37 | 226.06 | -14.19 | 133.02 | 0.3341 | 982.1 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.63 | -14.08 | 225.72 | -14.53 | 144.33 | 0.4191 | -806.0 | -832.5 | |
| 0.00 | 20.46 | 0.00 | 10.77 | -7.84 | 225.94 | -14.31 | 133.82 | 0.3407 | 116.0 | 219.5 | |
| 0.54 | -42.00 | 0.29 | -42.00 | -7.03 | 225.91 | -14.34 | 131.97 | 0.3321 | 1189.7 | 999999 | |
| 4.07 | -42.00 | 2.14 | -42.00 | -7.34 | 225.87 | -14.38 | 132.59 | 0.3361 | 1070.4 | 999999 | |
| 4.35 | -42.00 | 2.29 | -42.00 | -7.25 | 225.71 | -14.54 | 132.08 | 0.3370 | 1024.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.32 | 225.65 | -14.60 | 129.82 | 0.3277 | 994.0 | 877.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.35 | 225.34 | -14.91 | 141.00 | 0.4010 | -879.0 | -710.9 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.53 | 225.61 | -14.64 | 130.25 | 0.3305 | 779.0 | 696.4 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -13.90 | 225.18 | -15.07 | 143.08 | 0.4219 | -836.0 | -767.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -13.68 | 225.00 | -15.25 | 142.42 | 0.4208 | -925.0 | -716.2 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -13.71 | 224.84 | -15.41 | 142.18 | 0.4229 | -769.0 | -722.7 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -5.83 | 225.15 | -15.09 | 127.72 | 0.3290 | 850.0 | 694.3 | |
| 0.63 | 2.35 | 0.33 | 1.24 | -5.74 | 224.90 | -15.35 | 127.05 | 0.3314 | 902.9 | 707.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -5.72 | 224.65 | -15.60 | 126.54 | 0.3345 | 752.0 | 614.4 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -12.77 | 223.89 | -16.36 | 139.07 | 0.4210 | -872.0 | -671.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.27 | 223.93 | -16.32 | 128.82 | 0.3593 | 694.0 | 590.9 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -3.60 | 224.00 | -16.25 | 120.06 | 0.3240 | -946.0 | -757.5 | |
| 0.00 | 2.53 | 0.00 | 1.35 | -6.93 | 223.62 | -16.63 | 127.56 | 0.3599 | 851.0 | 624.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.69 | 222.45 | -17.80 | 129.33 | 0.3923 | -856.0 | -674.5 | |
| 1.00 | 2.53 | 0.53 | 1.35 | -5.29 | 221.46 | -18.79 | 120.54 | 0.3739 | -1047.9 | -833.5 | |
| 1.18 | 2.35 | 0.63 | 1.26 | -6.11 | 221.11 | -19.14 | 121.91 | 0.3857 | 843.9 | 674.8 | |
| 4.98 | 15.21 | 2.67 | 8.15 | -4.61 | 220.42 | -19.83 | 117.62 | 0.3833 | -1141.9 | -842.4 | |
| 2.63 | -65.00 | 1.41 | -65.00 | -4.43 | 220.16 | -20.09 | 116.90 | 0.3856 | -966.3 | 999999 | |
| 0.00 | 2.26 | 0.00 | 1.26 | -12.01 | 219.74 | -20.51 | 131.37 | 0.4585 | -861.0 | -759.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.05 | 219.46 | -20.79 | 135.74 | 0.4931 | -687.0 | -484.5 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -3.11 | 220.03 | -20.22 | 113.62 | 0.3782 | -924.0 | -659.9 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -4.66 | 219.96 | -20.29 | 117.18 | 0.3902 | -831.0 | -709.2 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.03 | 219.75 | -20.50 | 124.11 | 0.4206 | 821.0 | 637.4 | |
| 10.59 | 13.76 | 5.74 | 7.46 | -6.59 | 219.72 | -20.53 | 121.13 | 0.4087 | 1024.3 | 669.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -4.63 | 219.80 | -20.45 | 116.93 | 0.3923 | -732.0 | -590.4 | |
| 0.00 | 2.53 | 0.00 | 1.40 | -10.69 | 219.41 | -20.84 | 128.64 | 0.4493 | -823.0 | -631.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -2.75 | 219.75 | -20.50 | 112.45 | 0.3801 | -858.0 | -684.5 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -15.24 | 218.80 | -21.45 | 135.13 | 0.5021 | -650.0 | -533.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -4.26 | 218.96 | -21.29 | 115.15 | 0.4017 | -772.0 | -612.6 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -2.26 | 218.91 | -21.34 | 110.44 | 0.3897 | -946.0 | -804.7 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -2.08 | 218.85 | -21.40 | 109.94 | 0.3896 | -844.0 | -674.5 | |
| 1.18 | 4.89 | 0.64 | 2.65 | -4.12 | 218.70 | -21.55 | 114.55 | 0.4045 | -919.5 | -734.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -2.58 | 218.64 | -21.61 | 110.94 | 0.3956 | -739.0 | -554.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -3.82 | 218.38 | -21.87 | 113.56 | 0.4071 | -478.0 | -343.1 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -6.53 | 217.98 | -22.27 | 118.95 | 0.4320 | -1030.0 | -867.7 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -6.04 | 217.94 | -22.31 | 117.88 | 0.4289 | -652.0 | -635.6 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -13.84 | 217.35 | -22.90 | 131.18 | 0.5039 | -844.0 | -705.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -13.85 | 217.11 | -23.14 | 130.90 | 0.5067 | -880.0 | -660.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -13.98 | 217.10 | -23.15 | 131.08 | 0.5081 | -547.0 | -435.5 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -6.70 | 217.64 | -22.61 | 118.92 | 0.4380 | -946.0 | -769.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -5.30 | 217.67 | -22.58 | 116.06 | 0.4274 | -852.0 | -631.8 | |
| 1.63 | 4.25 | 0.90 | 2.35 | -6.77 | 217.37 | -22.88 | 118.77 | 0.4422 | -915.3 | -742.3 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -14.66 | 216.23 | -24.02 | 131.08 | 0.5244 | -668.0 | -566.3 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -14.54 | 216.18 | -24.07 | 130.82 | 0.5238 | -720.0 | -570.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
