SDO HMI 2014-08-03 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.22 | 120.30 | 18.17 | 65.77 | -18.86 | 238.62 | -1.63 | 176.39 | 0.4239 | 82.0 | -42.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

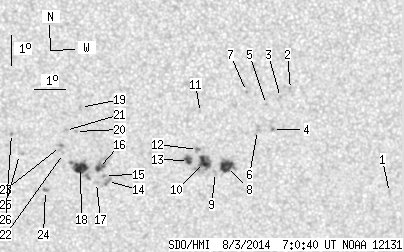

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.20 | -19.99 | 246.17 | 5.92 | 192.52 | 0.4492 | 689.0 | 487.2 | |
| 0.00 | 2.08 | 0.00 | 1.12 | -16.52 | 242.90 | 2.66 | 186.64 | 0.3861 | 837.0 | 716.3 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -16.78 | 242.59 | 2.34 | 185.78 | 0.3897 | 891.0 | 698.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.84 | 242.35 | 2.10 | 184.94 | 0.4063 | 931.0 | 821.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.01 | 242.15 | 1.90 | 184.64 | 0.3928 | 851.0 | 651.4 | |
| 0.00 | 5.07 | 0.00 | 2.75 | -17.87 | 241.87 | 1.62 | 183.81 | 0.4062 | 840.0 | 581.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -16.58 | 241.51 | 1.26 | 183.15 | 0.3851 | 795.0 | 719.1 | |
| 9.96 | 15.93 | 5.44 | 8.71 | -19.07 | 240.88 | 0.63 | 181.41 | 0.4246 | 935.6 | 664.8 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -19.27 | 240.52 | 0.28 | 180.61 | 0.4277 | 493.0 | 375.0 | |
| 7.24 | 19.73 | 3.95 | 10.78 | -18.94 | 240.17 | -0.08 | 179.82 | 0.4224 | 1072.1 | 639.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -17.27 | 240.05 | -0.20 | 179.51 | 0.3957 | 552.0 | 427.3 | |
| 0.00 | 2.72 | 0.00 | 1.48 | -18.50 | 239.95 | -0.30 | 179.31 | 0.4155 | 980.0 | 823.8 | |
| 3.53 | 8.24 | 1.93 | 4.50 | -18.87 | 239.66 | -0.59 | 178.66 | 0.4214 | 1014.9 | 719.5 | |
| 0.00 | 4.98 | 0.00 | 2.74 | -19.58 | 237.04 | -3.21 | 173.01 | 0.4357 | -607.0 | -580.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.38 | 236.94 | -3.31 | 172.75 | 0.4327 | -851.0 | -723.3 | |
| 1.99 | 13.58 | 1.09 | 7.43 | -19.14 | 236.75 | -3.49 | 172.26 | 0.4294 | -995.4 | -652.7 | |
| 0.00 | 2.26 | 0.00 | 1.25 | -19.62 | 236.68 | -3.57 | 172.25 | 0.4369 | -636.0 | -483.9 | |
| 10.50 | 22.18 | 5.76 | 12.16 | -19.11 | 236.17 | -4.08 | 170.98 | 0.4303 | -1080.5 | -726.5 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -17.11 | 236.22 | -4.03 | 170.27 | 0.3987 | -761.0 | -719.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.91 | 236.04 | -4.21 | 170.20 | 0.4117 | -900.0 | -683.1 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -17.88 | 235.72 | -4.53 | 169.46 | 0.4122 | -756.0 | -568.3 | |
| 0.00 | 0.63 | 0.00 | 0.35 | -18.65 | 235.64 | -4.61 | 169.62 | 0.4244 | -684.0 | -604.4 | |
| 0.00 | 3.08 | 0.00 | 1.68 | -18.41 | 235.55 | -4.70 | 169.31 | 0.4210 | -935.0 | -816.9 | |
| 0.00 | 2.35 | 0.00 | 1.30 | -19.90 | 235.02 | -5.23 | 168.86 | 0.4456 | -950.0 | -753.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -18.69 | 234.22 | -6.03 | 166.55 | 0.4298 | -624.0 | -491.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.00 | 233.99 | -6.26 | 165.63 | 0.4199 | -917.0 | -773.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
