SDO HMI 2014-08-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.11 | 471.15 | 54.82 | 245.74 | -7.55 | 228.78 | -10.92 | 143.05 | 0.3083 | 392.7 | 277.6 | |
|
previous
or next observation for the same group /

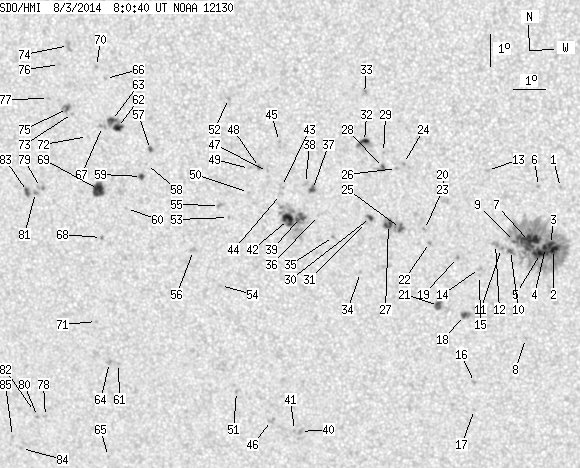

back to the solar disc SDO HMI 2014-08-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.19 | 234.28 | -5.43 | 155.85 | 0.2307 | 1046.0 | 786.4 | |
| 6.16 | 211.19 | 3.16 | 108.42 | -8.13 | 234.03 | -5.67 | 158.05 | 0.2626 | 1225.1 | 480.7 | |
| 3.89 | -2.00 | 2.00 | -2.00 | -7.97 | 233.94 | -5.76 | 157.50 | 0.2608 | 1320.0 | 999999 | |
| 2.81 | -2.00 | 1.44 | -2.00 | -8.07 | 233.79 | -5.91 | 157.10 | 0.2633 | 1344.7 | 999999 | |
| 10.68 | -2.00 | 5.49 | -2.00 | -8.26 | 233.63 | -6.07 | 156.84 | 0.2673 | 1130.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -6.16 | 233.60 | -6.10 | 153.18 | 0.2353 | 997.0 | 747.2 | |
| 21.27 | -2.00 | 10.92 | -2.00 | -7.88 | 233.30 | -6.40 | 155.12 | 0.2638 | 1238.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.95 | 233.11 | -6.59 | 158.75 | 0.3123 | 745.0 | 616.5 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -7.89 | 232.83 | -6.87 | 153.56 | 0.2672 | 880.0 | 999999 | |
| 1.09 | 4.80 | 0.56 | 2.47 | -8.17 | 232.70 | -7.00 | 153.61 | 0.2725 | 967.7 | 737.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -8.11 | 232.43 | -7.27 | 152.61 | 0.2737 | 942.0 | 761.6 | |
| 0.00 | 3.26 | 0.00 | 1.68 | -7.99 | 232.24 | -7.46 | 151.81 | 0.2733 | 972.0 | 744.7 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -5.68 | 232.04 | -7.67 | 146.50 | 0.2416 | -879.0 | -513.1 | |
| 0.00 | 2.53 | 0.00 | 1.31 | -8.75 | 231.73 | -7.97 | 151.51 | 0.2886 | 767.0 | 728.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -8.97 | 231.73 | -7.98 | 151.86 | 0.2919 | 782.0 | 583.6 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.37 | 231.47 | -8.23 | 155.94 | 0.3444 | -940.0 | -696.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.24 | 231.44 | -8.26 | 156.88 | 0.3576 | -532.0 | -487.8 | |
| 1.81 | 5.43 | 0.94 | 2.83 | -10.24 | 231.22 | -8.48 | 152.40 | 0.3145 | 1068.1 | 850.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.41 | 231.05 | -8.65 | 148.92 | 0.2893 | 952.0 | 788.3 | |
| 0.00 | 3.98 | 0.00 | 2.05 | -6.64 | 230.72 | -8.98 | 144.38 | 0.2674 | 771.0 | 772.4 | |
| 3.17 | 5.34 | 1.65 | 2.79 | -9.94 | 230.42 | -9.28 | 149.73 | 0.3165 | 1022.4 | 802.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.96 | 230.19 | -9.51 | 145.58 | 0.2907 | 1034.0 | 806.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -7.55 | 230.05 | -9.65 | 144.36 | 0.2865 | 869.0 | 711.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.51 | 229.44 | -10.26 | 137.97 | 0.2661 | 1036.0 | 867.2 | |
| 2.26 | 19.10 | 1.17 | 9.90 | -7.53 | 229.30 | -10.40 | 142.27 | 0.2937 | 1136.0 | 825.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.67 | 229.22 | -10.48 | 137.76 | 0.2705 | 924.0 | 767.0 | |
| 4.25 | -25.00 | 2.21 | -25.00 | -7.42 | 228.93 | -10.77 | 141.03 | 0.2960 | 1084.5 | 999999 | |
| 1.09 | 4.62 | 0.56 | 2.38 | -5.64 | 228.81 | -10.89 | 136.62 | 0.2749 | 1038.4 | 584.4 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.18 | 228.82 | -10.88 | 135.45 | 0.2691 | 851.0 | 651.1 | |
| 1.72 | 3.08 | 0.89 | 1.60 | -7.21 | 228.37 | -11.33 | 139.15 | 0.2993 | 1046.0 | 767.7 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -7.37 | 228.21 | -11.49 | 139.10 | 0.3031 | 909.0 | 685.7 | |
| 3.17 | 11.77 | 1.63 | 6.06 | -4.85 | 228.24 | -11.46 | 133.06 | 0.2722 | -956.1 | -423.2 | |
| 0.00 | 3.35 | 0.00 | 1.72 | -3.36 | 228.26 | -11.44 | 128.87 | 0.2554 | -891.0 | -798.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | -8.94 | 228.01 | -11.70 | 141.82 | 0.3253 | 727.0 | 622.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -7.83 | 227.19 | -12.51 | 137.66 | 0.3200 | 875.0 | 690.0 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -7.18 | 226.74 | -12.96 | 135.23 | 0.3173 | 844.0 | 671.6 | |
| 2.17 | 4.16 | 1.13 | 2.17 | -6.37 | 226.58 | -13.13 | 133.01 | 0.3100 | 1127.5 | 854.5 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -6.19 | 226.36 | -13.34 | 132.11 | 0.3106 | 780.0 | 643.8 | |
| 4.71 | 52.05 | 2.46 | 27.29 | -7.26 | 226.17 | -13.53 | 134.16 | 0.3249 | 1113.9 | 589.7 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -14.06 | 225.85 | -13.85 | 145.59 | 0.4127 | -1001.0 | -828.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -14.03 | 225.66 | -14.04 | 145.18 | 0.4141 | -814.0 | -714.8 | |
| 9.60 | -39.00 | 5.03 | -39.00 | -7.33 | 225.79 | -13.91 | 133.52 | 0.3303 | 1002.4 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.42 | -6.30 | 225.60 | -14.10 | 130.79 | 0.3212 | 779.0 | 704.8 | |
| 0.00 | 2.90 | 0.00 | 1.52 | -6.55 | 225.56 | -14.14 | 131.29 | 0.3244 | 761.0 | 473.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -4.91 | 225.57 | -14.13 | 127.27 | 0.3069 | 783.0 | 554.3 | |
| 0.00 | 4.16 | 0.00 | 2.27 | -13.73 | 224.93 | -14.77 | 143.38 | 0.4169 | -827.0 | -712.1 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -5.85 | 225.17 | -14.53 | 128.84 | 0.3218 | 870.0 | 714.0 | |
| 0.45 | 2.26 | 0.24 | 1.18 | -5.73 | 224.92 | -14.78 | 128.07 | 0.3238 | 925.4 | 784.4 | |
| 0.00 | 0.63 | 0.00 | 0.33 | -5.77 | 224.61 | -15.10 | 127.57 | 0.3283 | 645.0 | 504.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.52 | 224.55 | -15.15 | 129.24 | 0.3367 | 555.0 | 409.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -12.82 | 223.86 | -15.84 | 140.05 | 0.4163 | -866.0 | -717.9 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -3.62 | 223.99 | -15.71 | 120.97 | 0.3165 | -967.0 | -739.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.31 | 223.89 | -15.82 | 129.82 | 0.3534 | 734.0 | 552.5 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -9.46 | 223.54 | -16.17 | 133.59 | 0.3808 | -751.0 | -579.6 | |
| 0.00 | 2.44 | 0.00 | 1.29 | -6.95 | 223.61 | -16.09 | 128.52 | 0.3531 | 831.0 | 650.0 | |
| 0.00 | 3.17 | 0.00 | 1.69 | -8.38 | 222.72 | -16.98 | 130.05 | 0.3791 | -805.0 | -650.3 | |
| 1.00 | 2.35 | 0.53 | 1.25 | -5.27 | 221.46 | -18.24 | 121.26 | 0.3662 | -1013.2 | -848.6 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -5.74 | 221.32 | -18.39 | 122.14 | 0.3722 | 533.0 | 436.6 | |
| 1.90 | 3.53 | 1.02 | 1.89 | -6.12 | 221.14 | -18.56 | 122.74 | 0.3779 | 909.3 | 578.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -7.13 | 220.61 | -19.09 | 124.20 | 0.3940 | -571.0 | -422.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -12.05 | 220.05 | -19.65 | 132.64 | 0.4489 | -803.0 | -614.7 | |
| 4.35 | 16.38 | 2.32 | 8.75 | -4.62 | 220.42 | -19.29 | 118.33 | 0.3756 | -1117.5 | -818.6 | |
| 3.44 | -62.00 | 1.84 | -62.00 | -4.41 | 220.23 | -19.47 | 117.60 | 0.3767 | -1002.7 | 999999 | |
| 0.00 | 2.53 | 0.00 | 1.41 | -12.03 | 219.75 | -19.95 | 132.18 | 0.4521 | -914.0 | -775.4 | |
| 0.00 | 0.72 | 0.00 | 0.41 | -15.07 | 219.45 | -20.25 | 136.50 | 0.4876 | -657.0 | -529.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -3.12 | 220.07 | -19.64 | 114.29 | 0.3697 | -904.0 | -699.6 | |
| 0.00 | 3.17 | 0.00 | 1.70 | -4.61 | 219.93 | -19.77 | 117.69 | 0.3824 | -707.0 | -663.2 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.07 | 219.75 | -19.95 | 124.93 | 0.4138 | 800.0 | 617.2 | |
| 10.50 | 13.49 | 5.67 | 7.29 | -6.57 | 219.73 | -19.97 | 121.80 | 0.4010 | 1012.9 | 647.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -2.76 | 219.78 | -19.92 | 113.09 | 0.3715 | -839.0 | -686.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -10.73 | 219.42 | -20.28 | 129.48 | 0.4430 | -879.0 | -761.8 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -4.94 | 219.43 | -20.27 | 117.84 | 0.3920 | -644.0 | -422.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -4.24 | 218.96 | -20.74 | 115.71 | 0.3936 | -746.0 | -538.5 | |
| 0.00 | 5.07 | 0.00 | 2.71 | -2.15 | 218.88 | -20.82 | 110.66 | 0.3812 | -777.0 | -691.0 | |
| 1.36 | 6.16 | 0.73 | 3.32 | -4.09 | 218.81 | -20.90 | 115.20 | 0.3948 | -1028.5 | -789.8 | |
| 0.00 | 0.63 | 0.00 | 0.34 | -2.74 | 218.58 | -21.12 | 111.80 | 0.3894 | -786.0 | -642.3 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -3.81 | 218.19 | -21.51 | 113.89 | 0.4018 | -654.0 | -463.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -13.85 | 217.45 | -22.26 | 131.99 | 0.4967 | -811.0 | -664.0 | |
| 0.00 | 3.53 | 0.00 | 1.93 | -6.58 | 217.82 | -21.88 | 119.49 | 0.4270 | -704.0 | -793.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -13.86 | 217.17 | -22.53 | 131.66 | 0.4999 | -822.0 | -674.2 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -6.74 | 217.65 | -22.05 | 119.62 | 0.4307 | -875.0 | -706.9 | |
| 0.00 | 0.81 | 0.00 | 0.47 | -13.70 | 217.09 | -22.61 | 131.31 | 0.4993 | -622.0 | -583.3 | |
| 1.99 | 4.35 | 1.09 | 2.39 | -6.72 | 217.39 | -22.31 | 119.28 | 0.4341 | -932.4 | -714.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -14.92 | 216.51 | -23.19 | 132.44 | 0.5177 | -755.0 | -604.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -14.54 | 216.25 | -23.46 | 131.56 | 0.5170 | -724.0 | -619.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
