SDO HMI 2014-08-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.98 | 0.00 | 4.49 | 5.77 | 211.23 | -28.47 | 88.75 | 0.4759 | -409.8 | -353.5 | |
|
previous
or next observation for the same group /

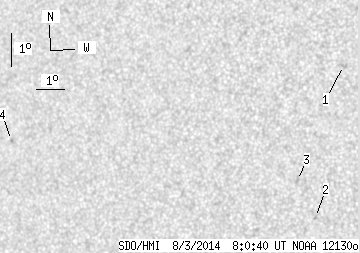

back to the solar disc SDO HMI 2014-08-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.49 | 8.24 | 213.75 | -25.95 | 83.36 | 0.4378 | -692.0 | -612.6 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 3.57 | 213.03 | -26.67 | 93.86 | 0.4509 | -798.0 | -537.2 | |
| 0.00 | 2.63 | 0.00 | 1.46 | 4.67 | 212.37 | -27.33 | 91.33 | 0.4596 | -714.0 | -379.1 | |
| 0.00 | 1.18 | 0.00 | 0.74 | 5.32 | 201.94 | -37.76 | 88.98 | 0.6120 | 565.0 | 424.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
