SDO HMI 2014-08-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.61 | 228.67 | 59.67 | 283.20 | 9.17 | 172.76 | -66.94 | 82.55 | 0.9170 | 181.1 | 89.4 | |
|
previous
or next observation for the same group /

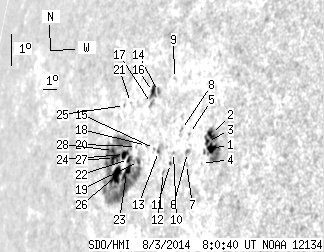

back to the solar disc SDO HMI 2014-08-03 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 40.10 | 5.98 | 41.35 | 9.93 | 177.85 | -61.85 | 81.91 | 0.8792 | -771.3 | -430.0 | |
| 4.62 | -1.00 | 4.79 | -1.00 | 10.35 | 177.71 | -61.99 | 81.43 | 0.8803 | -597.7 | 999999 | |
| 1.45 | -1.00 | 1.51 | -1.00 | 10.12 | 177.52 | -62.18 | 81.69 | 0.8818 | -548.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.28 | 9.42 | 177.34 | -62.36 | 82.47 | 0.8834 | -103.0 | -99.0 | |
| 0.00 | 0.72 | 0.00 | 0.79 | 10.25 | 176.24 | -63.46 | 81.51 | 0.8920 | -283.0 | -275.8 | |
| 0.00 | 2.35 | 0.00 | 2.56 | 9.67 | 176.31 | -63.39 | 82.16 | 0.8916 | -301.0 | -254.9 | |
| 0.00 | 1.18 | 0.00 | 1.27 | 9.30 | 176.36 | -63.34 | 82.57 | 0.8913 | -211.0 | -182.8 | |
| 0.00 | 1.36 | 0.00 | 1.51 | 10.32 | 175.65 | -64.05 | 81.41 | 0.8965 | -220.0 | -148.3 | |
| 0.00 | 0.63 | 0.00 | 0.73 | 11.79 | 174.53 | -65.17 | 79.74 | 0.9046 | -177.0 | -131.0 | |
| 0.00 | 1.00 | 0.00 | 1.12 | 9.58 | 175.35 | -64.35 | 82.23 | 0.8990 | -81.0 | -112.4 | |
| 0.36 | 1.09 | 0.41 | 1.22 | 9.23 | 175.25 | -64.45 | 82.61 | 0.8998 | 32.2 | -3.4 | |
| 0.00 | 1.45 | 0.00 | 1.66 | 8.92 | 174.85 | -64.85 | 82.94 | 0.9029 | -149.0 | -106.6 | |
| 0.54 | 4.53 | 0.63 | 5.27 | 9.51 | 174.27 | -65.43 | 82.26 | 0.9070 | 608.8 | 440.4 | |
| 0.00 | 2.63 | 0.00 | 3.14 | 11.30 | 173.54 | -66.16 | 80.27 | 0.9118 | 489.0 | 427.0 | |
| 0.00 | 1.27 | 0.00 | 1.50 | 9.57 | 173.94 | -65.76 | 82.18 | 0.9093 | 528.0 | 533.1 | |
| 3.35 | 6.61 | 4.07 | 8.02 | 11.25 | 173.09 | -66.61 | 80.30 | 0.9150 | 118.1 | 258.9 | |
| 0.00 | 3.35 | 0.00 | 4.06 | 10.89 | 173.17 | -66.53 | 80.70 | 0.9144 | 528.0 | 489.7 | |
| 0.00 | 0.91 | 0.00 | 1.09 | 9.61 | 173.32 | -66.39 | 82.12 | 0.9137 | 301.0 | 283.9 | |
| 1.18 | 156.87 | 1.45 | 204.61 | 9.07 | 172.89 | -66.81 | 82.68 | 0.9169 | 647.5 | 159.4 | |
| 0.00 | 0.81 | 0.00 | 1.01 | 9.50 | 172.56 | -67.14 | 82.19 | 0.9190 | 192.0 | 270.3 | |
| 0.00 | 0.63 | 0.00 | 0.82 | 10.77 | 171.52 | -68.18 | 80.78 | 0.9256 | 577.0 | 543.7 | |
| 1.72 | -19.00 | 2.18 | -19.00 | 9.06 | 172.09 | -67.61 | 82.66 | 0.9223 | 658.3 | 999999 | |
| 6.61 | -19.00 | 8.39 | -19.00 | 8.66 | 172.08 | -67.62 | 83.09 | 0.9225 | 657.6 | 999999 | |
| 4.07 | -19.00 | 5.25 | -19.00 | 9.18 | 171.71 | -67.99 | 82.51 | 0.9247 | 614.5 | 999999 | |
| 0.00 | 0.91 | 0.00 | 1.19 | 10.63 | 171.07 | -68.63 | 80.91 | 0.9285 | 100.0 | 119.6 | |
| 12.04 | -19.00 | 15.83 | -19.00 | 8.49 | 171.31 | -68.39 | 83.23 | 0.9276 | 410.5 | 999999 | |
| 5.43 | -19.00 | 7.23 | -19.00 | 8.98 | 170.95 | -68.76 | 82.68 | 0.9298 | 263.0 | 999999 | |
| 1.45 | -19.00 | 1.95 | -19.00 | 9.21 | 170.76 | -68.94 | 82.42 | 0.9308 | 200.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
