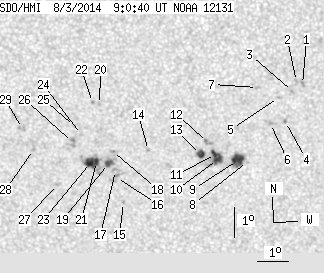

SDO HMI 2014-08-03 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.03 | 116.34 | 19.70 | 63.50 | -18.79 | 238.30 | -0.86 | 178.14 | 0.4221 | 98.9 | -128.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.08 | 0.00 | 1.12 | -16.56 | 242.92 | 3.77 | 189.35 | 0.3892 | 876.0 | 696.0 | |
| 0.00 | 1.90 | 0.00 | 1.02 | -16.46 | 242.73 | 3.57 | 188.92 | 0.3871 | 920.0 | 699.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -16.79 | 242.61 | 3.45 | 188.49 | 0.3921 | 916.0 | 776.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -17.78 | 242.40 | 3.25 | 187.64 | 0.4074 | 928.0 | 802.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -16.98 | 242.16 | 3.01 | 187.35 | 0.3942 | 806.0 | 608.0 | |
| 0.00 | 1.90 | 0.00 | 1.03 | -17.84 | 241.92 | 2.77 | 186.50 | 0.4074 | 886.0 | 705.0 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -16.65 | 241.49 | 2.34 | 185.81 | 0.3876 | 841.0 | 612.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.11 | 241.20 | 2.04 | 184.55 | 0.4264 | 541.0 | 511.7 | |
| 10.32 | 13.85 | 5.64 | 7.57 | -19.07 | 240.87 | 1.72 | 183.84 | 0.4255 | 958.5 | 694.0 | |
| 4.89 | 16.84 | 2.67 | 9.20 | -19.04 | 240.23 | 1.08 | 182.41 | 0.4243 | 977.0 | 675.7 | |
| 3.53 | -10.00 | 1.93 | -10.00 | -18.87 | 240.17 | 1.01 | 182.28 | 0.4216 | 1218.6 | 999999 | |
| 0.00 | 4.25 | 0.00 | 2.31 | -18.47 | 239.91 | 0.75 | 181.73 | 0.4151 | 905.0 | 808.3 | |
| 3.98 | 5.97 | 2.17 | 3.26 | -18.87 | 239.68 | 0.53 | 181.19 | 0.4214 | 1011.8 | 710.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.73 | 238.01 | -1.14 | 177.41 | 0.4196 | 695.0 | 439.9 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.49 | 237.18 | -1.97 | 175.86 | 0.4480 | -664.0 | -503.3 | |
| 0.00 | 7.24 | 0.00 | 3.98 | -19.64 | 236.97 | -2.18 | 175.25 | 0.4350 | -631.0 | -463.8 | |
| 0.00 | 3.35 | 0.00 | 1.84 | -19.41 | 236.94 | -2.21 | 175.14 | 0.4313 | -693.0 | -580.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.77 | 236.85 | -2.30 | 174.81 | 0.4214 | -826.0 | -739.1 | |
| 3.17 | 33.22 | 1.73 | 18.20 | -19.17 | 236.72 | -2.43 | 174.60 | 0.4279 | -924.6 | -699.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.20 | 236.46 | -2.69 | 173.49 | 0.3971 | -929.0 | -784.0 | |
| 2.99 | -19.00 | 1.64 | -19.00 | -19.11 | 236.33 | -2.82 | 173.73 | 0.4275 | -1086.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.14 | 236.24 | -2.91 | 172.93 | 0.3965 | -952.0 | -830.5 | |
| 7.15 | -19.00 | 3.92 | -19.00 | -19.14 | 236.14 | -3.01 | 173.31 | 0.4284 | -1062.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.20 | 235.87 | -3.28 | 172.42 | 0.4142 | -634.0 | -501.2 | |
| 0.00 | 0.81 | 0.00 | 0.44 | -17.94 | 235.65 | -3.50 | 171.82 | 0.4105 | -782.0 | -592.3 | |
| 0.00 | 4.62 | 0.00 | 2.52 | -18.47 | 235.57 | -3.58 | 171.84 | 0.4191 | -654.0 | -814.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -19.89 | 235.05 | -4.10 | 171.22 | 0.4424 | -864.0 | -669.7 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.72 | 234.31 | -4.84 | 169.14 | 0.4261 | -823.0 | -621.8 | |
| 0.00 | 3.26 | 0.00 | 1.77 | -18.02 | 233.98 | -5.17 | 168.06 | 0.4163 | -756.0 | -750.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
