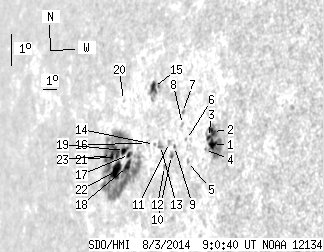

SDO HMI 2014-08-03 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.92 | 226.41 | 49.09 | 275.33 | 9.13 | 172.70 | -66.45 | 82.62 | 0.9137 | 175.2 | 105.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.98 | 34.49 | 5.05 | 34.95 | 9.92 | 177.83 | -61.32 | 81.94 | 0.8748 | -776.9 | -472.4 | |
| 3.71 | -1.00 | 3.78 | -1.00 | 10.30 | 177.70 | -61.45 | 81.49 | 0.8758 | -616.4 | 999999 | |
| 1.27 | -1.00 | 1.30 | -1.00 | 10.10 | 177.51 | -61.65 | 81.72 | 0.8774 | -613.2 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.93 | 9.72 | 177.37 | -61.78 | 82.15 | 0.8787 | -243.0 | -207.8 | |
| 0.00 | 1.72 | 0.00 | 1.83 | 9.26 | 176.38 | -62.78 | 82.64 | 0.8868 | -217.0 | -183.3 | |
| 0.00 | 1.00 | 0.00 | 1.07 | 9.91 | 176.09 | -63.06 | 81.89 | 0.8889 | -266.0 | -215.9 | |
| 0.00 | 1.09 | 0.00 | 1.19 | 10.70 | 175.53 | -63.62 | 81.00 | 0.8931 | -90.0 | -82.2 | |
| 0.00 | 1.54 | 0.00 | 1.67 | 10.34 | 175.66 | -63.49 | 81.41 | 0.8922 | -184.0 | -153.1 | |
| 0.00 | 1.09 | 0.00 | 1.19 | 9.63 | 175.35 | -63.80 | 82.19 | 0.8947 | -105.0 | -116.8 | |
| 0.00 | 2.26 | 0.00 | 2.50 | 9.34 | 175.24 | -63.91 | 82.51 | 0.8957 | -10.0 | 64.1 | |
| 0.00 | 2.26 | 0.00 | 2.52 | 9.72 | 174.97 | -64.19 | 82.08 | 0.8977 | 40.0 | 147.2 | |
| 0.00 | 1.27 | 0.00 | 1.42 | 8.97 | 174.86 | -64.29 | 82.91 | 0.8987 | -148.0 | -93.3 | |
| 0.00 | 3.89 | 0.00 | 4.44 | 9.57 | 174.37 | -64.78 | 82.22 | 0.9022 | 503.0 | 498.9 | |
| 0.00 | 1.00 | 0.00 | 1.15 | 9.56 | 173.93 | -65.22 | 82.21 | 0.9054 | 516.0 | 527.4 | |
| 4.34 | 12.49 | 5.16 | 14.81 | 11.25 | 173.17 | -65.99 | 80.32 | 0.9106 | 217.9 | 388.8 | |
| 0.00 | 1.09 | 0.00 | 1.28 | 9.54 | 173.34 | -65.82 | 82.22 | 0.9097 | 160.0 | 247.5 | |
| 2.08 | 160.04 | 2.58 | 204.03 | 9.09 | 172.18 | -66.97 | 82.65 | 0.9180 | 637.3 | 172.8 | |
| 5.25 | -17.00 | 6.51 | -17.00 | 8.72 | 172.16 | -67.00 | 83.06 | 0.9182 | 682.5 | 999999 | |
| 3.71 | -17.00 | 4.67 | -17.00 | 9.17 | 171.75 | -67.41 | 82.54 | 0.9209 | 598.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.35 | 10.65 | 171.03 | -68.12 | 80.91 | 0.9252 | 160.0 | 122.7 | |
| 1.09 | -17.00 | 1.40 | -17.00 | 8.94 | 171.26 | -67.89 | 82.77 | 0.9242 | 435.8 | 999999 | |
| 11.77 | -17.00 | 15.09 | -17.00 | 8.52 | 171.34 | -67.81 | 83.23 | 0.9238 | 449.1 | 999999 | |
| 2.72 | -17.00 | 3.55 | -17.00 | 8.92 | 170.76 | -68.39 | 82.76 | 0.9274 | 116.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
