group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12130	95.88	464.33	49.85	241.14	-7.61	229.09	-9.52	146.95	0.2956	335.3	303.8

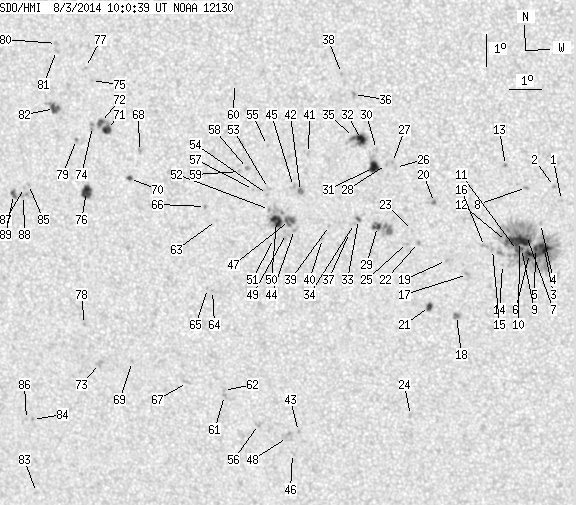

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-08-03 10:00:39 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.36	0.00	0.18	-6.55	234.65	-3.96	162.40	0.2276	831.0	833.8
2	0.00	1.45	0.00	0.74	-6.12	234.44	-4.17	160.90	0.2217	857.0	692.2
3	7.51	220.76	3.85	113.12	-8.06	234.11	-4.49	162.19	0.2548	1305.0	510.9
4	0.00	1.54	0.00	0.79	-7.27	234.00	-4.61	160.75	0.2428	779.0	560.0
5	1.99	-3.00	1.02	-3.00	-8.06	233.83	-4.77	161.16	0.2563	1305.3	999999
6	2.90	-3.00	1.49	-3.00	-8.22	233.65	-4.96	160.69	0.2598	1273.8	999999
7	1.63	-3.00	0.83	-3.00	-7.65	233.56	-5.04	159.62	0.2513	1214.8	999999
8	0.00	1.63	0.00	0.83	-6.15	233.58	-5.03	157.38	0.2275	1033.0	843.2
9	1.27	-3.00	0.65	-3.00	-8.06	233.40	-5.20	159.60	0.2588	1113.6	999999
10	16.56	-3.00	8.49	-3.00	-7.84	233.34	-5.26	159.08	0.2556	1281.7	999999
11	1.45	-3.00	0.74	-3.00	-8.12	233.28	-5.33	159.24	0.2605	913.9	999999
12	0.91	-3.00	0.46	-3.00	-7.85	232.94	-5.66	157.65	0.2582	970.2	999999
13	0.00	1.36	0.00	0.69	-5.48	232.94	-5.66	153.54	0.2215	-978.0	-819.9
14	0.00	0.81	0.00	0.42	-8.57	232.81	-5.80	158.21	0.2704	572.0	477.4
15	0.00	2.08	0.00	1.07	-8.10	232.50	-6.10	156.50	0.2650	971.0	703.3
16	0.00	2.90	0.00	1.49	-8.01	232.26	-6.35	155.52	0.2653	777.0	668.1
17	0.00	2.72	0.00	1.40	-8.89	231.72	-6.89	155.10	0.2826	1050.0	725.0
18	0.91	3.44	0.47	1.79	-10.19	231.35	-7.26	155.82	0.3050	1113.2	880.0
19	0.00	1.27	0.00	0.65	-8.46	231.07	-7.53	152.38	0.2809	918.0	776.4
20	0.00	2.17	0.00	1.11	-6.65	230.74	-7.87	147.93	0.2572	1090.0	905.1
21	2.90	4.25	1.51	2.21	-9.92	230.51	-8.09	153.00	0.3068	1011.9	764.5
22	0.00	1.81	0.00	0.93	-7.91	230.22	-8.39	148.76	0.2798	995.0	752.2
23	0.00	0.91	0.00	0.47	-7.54	230.04	-8.57	147.51	0.2761	835.0	655.4
24	0.00	2.08	0.00	1.11	-13.41	229.80	-8.80	155.73	0.3637	-779.0	-578.2
25	0.00	0.45	0.00	0.23	-7.91	229.87	-8.73	147.75	0.2829	471.0	537.8
26	0.00	1.72	0.00	0.88	-5.58	229.55	-9.06	141.71	0.2539	804.0	563.6
27	0.00	0.91	0.00	0.46	-5.43	229.46	-9.15	141.05	0.2528	1086.0	919.2
28	0.00	1.36	0.00	0.70	-5.49	229.27	-9.33	140.64	0.2556	934.0	728.7
29	3.17	17.74	1.64	9.16	-7.43	228.95	-9.65	144.11	0.2848	1078.7	928.2
30	0.00	1.27	0.00	0.65	-5.03	228.97	-9.63	138.56	0.2530	574.0	458.6
31	7.60	12.76	3.90	6.55	-5.59	228.87	-9.74	139.68	0.2613	1093.3	603.5
32	6.25	12.13	3.20	6.21	-4.73	228.51	-10.09	136.41	0.2545	-1058.0	-579.3
33	0.91	1.99	0.47	1.03	-7.22	228.37	-10.24	142.04	0.2879	1050.9	913.6
34	0.00	1.45	0.00	0.75	-7.35	228.24	-10.37	141.96	0.2909	915.0	707.9
35	1.45	-32.00	0.74	-32.00	-4.67	228.26	-10.34	135.56	0.2567	-893.9	999999
36	0.00	2.35	0.00	1.20	-3.34	228.28	-10.32	131.74	0.2408	-909.0	-793.1
37	0.00	0.91	0.00	0.47	-7.63	228.08	-10.53	142.13	0.2963	767.0	573.4
38	0.00	1.09	0.00	0.55	-2.70	227.92	-10.69	128.71	0.2384	-943.0	-776.5
39	0.00	1.18	0.00	0.61	-7.42	227.46	-11.15	140.08	0.3001	766.0	631.2
40	0.00	1.36	0.00	0.71	-7.83	227.23	-11.38	140.37	0.3078	889.0	674.5
41	0.00	1.99	0.00	1.03	-5.19	226.85	-11.75	133.26	0.2798	799.0	654.8
42	1.18	3.35	0.61	1.74	-6.38	226.58	-12.03	135.54	0.2970	1173.2	935.1
43	0.00	1.27	0.00	0.68	-13.99	226.20	-12.40	148.39	0.3992	-883.0	-770.8
44	0.00	1.63	0.00	0.85	-7.57	226.35	-12.25	137.71	0.3140	633.0	700.1
45	0.00	2.99	0.00	1.55	-6.23	226.36	-12.24	134.67	0.2977	844.0	656.8
46	0.00	1.36	0.00	0.74	-14.71	225.97	-12.63	148.87	0.4109	-760.0	-609.0
47	4.71	30.77	2.45	16.06	-7.29	226.21	-12.40	136.76	0.3122	1051.9	743.6
48	0.00	8.42	0.00	4.56	-14.20	225.84	-12.76	147.92	0.4050	-539.0	-727.5
49	0.00	2.62	0.00	1.37	-7.70	226.10	-12.50	137.40	0.3184	617.0	464.6
50	7.87	-47.00	4.11	-47.00	-7.30	225.80	-12.81	135.85	0.3170	1049.3	999999
51	0.00	1.00	0.00	0.52	-7.87	225.68	-12.92	136.82	0.3251	141.0	110.6
52	0.00	1.54	0.00	0.80	-6.96	225.59	-13.02	134.62	0.3155	779.0	708.6
53	0.00	2.72	0.00	1.41	-6.31	225.57	-13.03	133.07	0.3081	826.0	578.2
54	0.00	1.36	0.00	0.71	-6.50	225.54	-13.07	133.43	0.3107	629.0	506.2
55	0.00	1.00	0.00	0.52	-4.97	225.58	-13.03	129.73	0.2933	856.0	595.5
56	0.00	3.08	0.00	1.67	-13.80	224.93	-13.68	145.56	0.4077	-846.0	-757.4
57	0.00	0.81	0.00	0.42	-6.35	225.10	-13.50	132.14	0.3143	774.0	647.3
58	0.00	1.99	0.00	1.04	-5.70	224.93	-13.67	130.21	0.3094	993.0	840.1
59	0.00	1.18	0.00	0.61	-5.80	224.68	-13.93	129.93	0.3136	799.0	667.2
60	0.00	0.63	0.00	0.33	-3.08	224.57	-14.03	122.41	0.2880	-700.0	-559.4
61	0.00	2.08	0.00	1.13	-12.89	223.89	-14.72	142.21	0.4058	-816.0	-690.0
62	0.00	0.91	0.00	0.49	-12.73	223.87	-14.74	141.92	0.4041	-845.0	-642.4
63	0.00	1.09	0.00	0.57	-7.35	223.90	-14.70	131.97	0.3401	751.0	494.9
64	0.00	1.00	0.00	0.53	-9.55	223.68	-14.92	136.07	0.3676	-755.0	-610.6
65	0.00	0.91	0.00	0.48	-9.49	223.53	-15.08	135.66	0.3687	-704.0	-621.1
66	0.00	1.36	0.00	0.71	-6.92	223.57	-15.04	130.37	0.3395	847.0	692.1
67	0.00	3.08	0.00	1.67	-12.50	222.72	-15.89	139.46	0.4129	-854.0	-602.8
68	0.00	2.35	0.00	1.24	-5.27	221.52	-17.09	122.96	0.3502	-1000.0	-805.2
69	0.00	1.54	0.00	0.84	-11.88	220.97	-17.64	135.46	0.4245	-791.0	-657.4
70	1.54	2.81	0.82	1.49	-6.12	221.17	-17.43	124.41	0.3627	900.6	687.3
71	4.98	13.85	2.64	7.35	-4.62	220.48	-18.13	119.86	0.3591	-1076.6	-810.0
72	2.44	-71.00	1.30	-71.00	-4.41	220.29	-18.31	119.09	0.3600	-982.8	999999
73	0.00	4.53	0.00	2.49	-11.98	219.88	-18.72	133.91	0.4377	-901.0	-744.0
74	0.00	3.35	0.00	1.78	-4.54	220.03	-18.57	119.06	0.3648	-872.0	-652.9
75	0.00	0.91	0.00	0.48	-3.12	220.03	-18.57	115.55	0.3540	-568.0	-521.7
76	8.96	11.77	4.81	6.31	-6.56	219.77	-18.84	123.33	0.3856	1031.8	683.4
77	0.00	1.09	0.00	0.58	-2.72	219.85	-18.76	114.31	0.3540	-820.0	-611.2
78	0.00	1.00	0.00	0.55	-10.75	219.48	-19.13	131.18	0.4295	-857.0	-730.5
79	0.00	1.72	0.00	0.92	-4.96	219.50	-19.10	119.35	0.3756	-649.0	-405.9
80	0.00	2.17	0.00	1.15	-2.02	218.92	-19.68	111.47	0.3632	-856.0	-695.1
81	0.00	2.26	0.00	1.20	-2.23	218.92	-19.68	112.01	0.3646	-789.0	-579.0
82	4.89	9.87	2.61	5.28	-4.02	218.82	-19.79	116.30	0.3783	-985.9	-700.1
83	0.00	1.72	0.00	0.99	-16.25	217.38	-21.23	136.85	0.5103	-701.0	-550.9
84	0.00	1.00	0.00	0.56	-13.87	217.49	-21.11	133.52	0.4842	-824.0	-716.5
85	0.00	1.63	0.00	0.88	-6.41	217.89	-20.72	120.52	0.4098	-942.0	-723.8
86	0.00	1.09	0.00	0.62	-13.87	217.29	-21.31	133.26	0.4865	-761.0	-627.7
87	0.00	1.09	0.00	0.59	-6.51	217.75	-20.85	120.56	0.4125	-701.0	-651.6
88	0.00	3.89	0.00	2.12	-6.76	217.71	-20.90	121.02	0.4151	-690.0	-749.2
89	1.90	4.34	1.04	2.37	-6.74	217.38	-21.23	120.59	0.4194	-885.2	-675.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
