SDO HMI 2014-08-03 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.12 | 103.04 | 18.10 | 56.28 | -18.85 | 238.59 | -0.01 | 179.98 | 0.4229 | 125.3 | -113.0 | |
|
previous
or next observation for the same group /

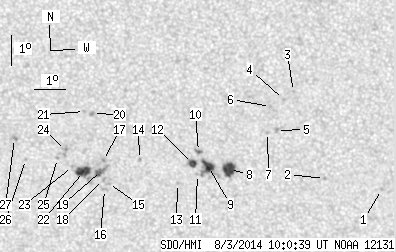

back to the solar disc SDO HMI 2014-08-03 10:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.55 | -19.80 | 245.85 | 7.24 | 195.31 | 0.4513 | 822.0 | 695.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -19.41 | 243.98 | 5.38 | 191.68 | 0.4385 | 800.0 | 613.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -16.50 | 242.91 | 4.30 | 190.69 | 0.3897 | 941.0 | 744.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -16.76 | 242.60 | 3.99 | 189.81 | 0.3930 | 879.0 | 775.2 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -17.78 | 242.39 | 3.79 | 188.89 | 0.4087 | 942.0 | 678.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -16.99 | 242.19 | 3.58 | 188.72 | 0.3955 | 775.0 | 608.9 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -17.85 | 242.11 | 3.50 | 188.21 | 0.4090 | 685.0 | 577.6 | |
| 11.31 | 15.39 | 6.19 | 8.42 | -19.08 | 240.90 | 2.30 | 185.13 | 0.4262 | 953.9 | 604.9 | |
| 8.06 | 18.01 | 4.40 | 9.85 | -18.97 | 240.23 | 1.62 | 183.64 | 0.4238 | 1112.2 | 686.5 | |
| 0.72 | 3.26 | 0.39 | 1.77 | -18.47 | 239.90 | 1.30 | 182.98 | 0.4155 | 1003.6 | 783.1 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -19.24 | 239.87 | 1.27 | 182.82 | 0.4277 | 603.0 | 422.6 | |
| 3.89 | 5.97 | 2.12 | 3.26 | -18.87 | 239.71 | 1.11 | 182.50 | 0.4217 | 973.2 | 717.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -19.54 | 239.23 | 0.63 | 181.37 | 0.4321 | -688.0 | -392.7 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -18.73 | 238.01 | -0.60 | 178.65 | 0.4193 | 732.0 | 468.5 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -19.54 | 237.00 | -1.60 | 176.50 | 0.4327 | -665.0 | -566.8 | |
| 0.00 | 2.90 | 0.00 | 1.59 | -19.74 | 236.87 | -1.73 | 176.24 | 0.4361 | -653.0 | -523.8 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -18.77 | 236.85 | -1.75 | 176.03 | 0.4207 | -894.0 | -647.2 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -19.41 | 236.84 | -1.76 | 176.13 | 0.4308 | -851.0 | -687.0 | |
| 0.00 | 8.60 | 0.00 | 4.71 | -19.10 | 236.78 | -1.82 | 175.94 | 0.4261 | -878.0 | -704.3 | |
| 0.00 | 2.35 | 0.00 | 1.27 | -17.20 | 236.52 | -2.09 | 174.94 | 0.3961 | -1013.0 | -815.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -17.14 | 236.26 | -2.34 | 174.31 | 0.3955 | -886.0 | -667.8 | |
| 9.14 | 16.02 | 5.00 | 8.78 | -19.14 | 236.20 | -2.40 | 174.66 | 0.4274 | -1072.7 | -722.6 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.97 | 235.85 | -2.75 | 173.84 | 0.4253 | -945.0 | -706.3 | |
| 0.00 | 5.07 | 0.00 | 2.76 | -18.44 | 235.63 | -2.97 | 173.21 | 0.4172 | -935.0 | -747.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -18.71 | 235.37 | -3.23 | 172.70 | 0.4220 | -779.0 | -599.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.75 | 234.34 | -4.26 | 170.43 | 0.4250 | -824.0 | -629.3 | |
| 0.00 | 2.62 | 0.00 | 1.43 | -18.05 | 234.01 | -4.60 | 169.37 | 0.4150 | -912.0 | -828.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
