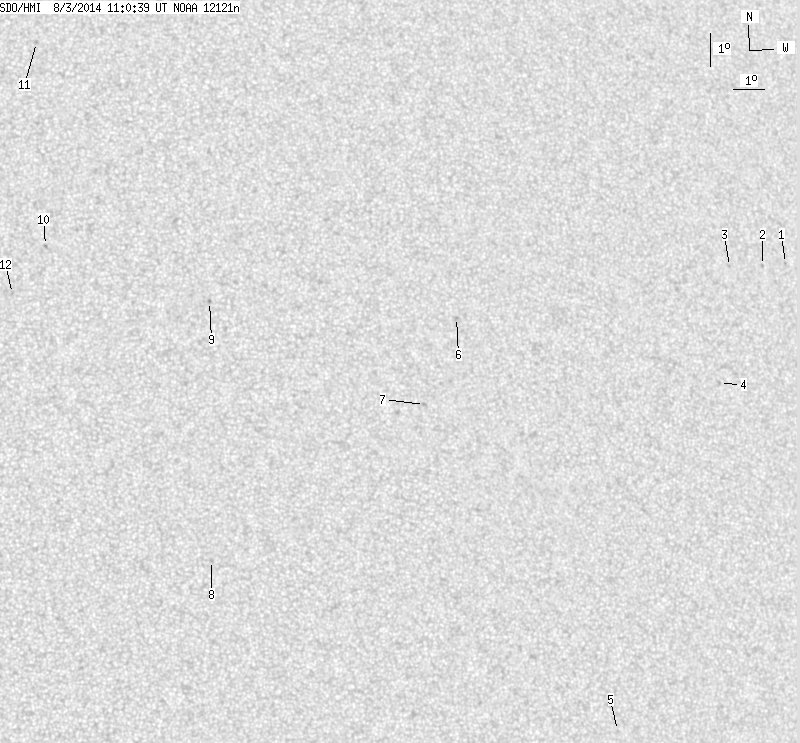

SDO HMI 2014-08-03 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.02 | 0.00 | 9.56 | 14.30 | 254.62 | 16.56 | 302.80 | 0.3364 | 267.1 | 258.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-08-03 11:00:39 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.58 | 15.88 | 268.47 | 30.42 | 290.94 | 0.5235 | -699.0 | -578.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 15.86 | 267.63 | 29.57 | 291.32 | 0.5116 | -784.0 | -658.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 15.89 | 266.44 | 28.38 | 292.01 | 0.4951 | -646.0 | -511.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | 12.32 | 265.60 | 27.54 | 285.19 | 0.4700 | -680.0 | -519.7 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 1.92 | 261.48 | 23.43 | 261.19 | 0.4038 | 536.0 | 450.9 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 14.71 | 256.88 | 18.82 | 296.83 | 0.3512 | 656.0 | 455.2 | |
| 0.00 | 1.90 | 0.00 | 0.99 | 12.08 | 255.61 | 17.56 | 290.73 | 0.3168 | 839.0 | 666.0 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 7.50 | 248.62 | 10.57 | 279.05 | 0.1849 | 690.0 | 475.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | 15.42 | 248.87 | 10.82 | 312.61 | 0.2469 | 813.0 | 698.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 17.23 | 243.70 | 5.64 | 334.43 | 0.2186 | 855.0 | 721.6 | |
| 0.00 | 1.81 | 0.00 | 0.95 | 23.61 | 243.65 | 5.59 | 343.64 | 0.3183 | 772.0 | 586.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 15.75 | 242.60 | 4.55 | 335.92 | 0.1880 | 853.0 | 571.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
