group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12130	103.79	457.76	53.77	237.12	-7.56	229.24	-8.82	148.81	0.2889	288.4	295.7

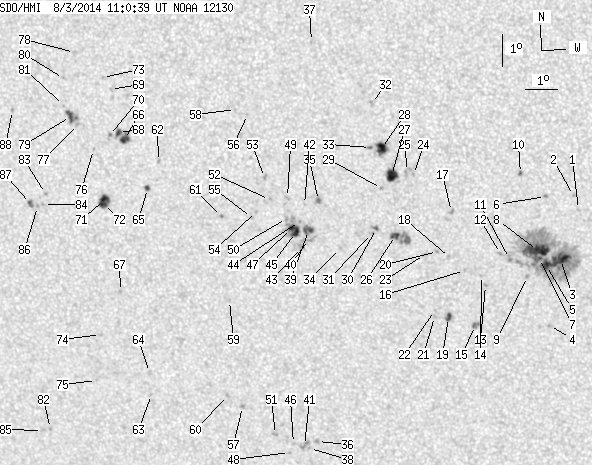

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-08-03 11:00:39 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.81	0.00	0.92	-6.55	234.62	-3.43	164.60	0.2250	691.0	639.3
2	0.00	1.09	0.00	0.55	-6.11	234.47	-3.58	163.41	0.2186	922.0	715.9
3	14.57	211.69	7.46	108.38	-8.11	234.05	-4.00	164.10	0.2533	1196.4	477.1
4	0.00	1.36	0.00	0.70	-10.20	233.69	-4.37	164.89	0.2888	961.0	748.8
5	7.06	-3.00	3.62	-3.00	-8.30	233.62	-4.43	162.70	0.2585	1084.8	999999
6	0.00	1.54	0.00	0.78	-6.15	233.61	-4.44	159.78	0.2238	997.0	871.3
7	1.27	-3.00	0.65	-3.00	-8.09	233.41	-4.65	161.66	0.2561	1107.2	999999
8	18.28	-3.00	9.36	-3.00	-7.84	233.35	-4.71	161.12	0.2524	1258.7	999999
9	0.00	1.72	0.00	0.88	-8.65	233.03	-5.03	161.00	0.2672	797.0	592.7
10	0.72	2.08	0.37	1.06	-5.44	232.85	-5.20	155.37	0.2175	-841.2	-638.8
11	0.00	3.17	0.00	1.63	-8.09	232.48	-5.57	158.33	0.2615	996.0	782.3
12	0.00	1.63	0.00	0.84	-7.94	232.21	-5.85	157.13	0.2609	873.0	655.3
13	0.00	1.36	0.00	0.70	-8.95	231.72	-6.33	156.98	0.2797	975.0	791.5
14	0.00	0.91	0.00	0.47	-8.64	231.61	-6.45	156.14	0.2757	759.0	559.9
15	0.00	4.25	0.00	2.21	-10.22	231.39	-6.67	157.62	0.3014	1122.0	886.6
16	0.00	1.27	0.00	0.65	-8.49	231.08	-6.97	154.20	0.2770	854.0	745.4
17	0.00	2.35	0.00	1.20	-6.64	230.71	-7.34	149.68	0.2525	1054.0	808.4
18	0.00	2.17	0.00	1.12	-8.08	230.63	-7.43	152.06	0.2745	475.0	423.3
19	2.72	4.25	1.41	2.21	-9.97	230.55	-7.50	154.80	0.3033	1012.7	782.1
20	0.00	1.27	0.00	0.65	-7.90	230.26	-7.80	150.57	0.2747	983.0	746.7
21	0.00	1.63	0.00	0.85	-9.95	230.12	-7.94	153.49	0.3061	736.0	479.7
22	0.00	0.91	0.00	0.47	-9.76	230.12	-7.93	153.22	0.3032	650.0	521.4
23	0.00	1.63	0.00	0.84	-8.00	229.85	-8.20	149.50	0.2795	874.0	722.5
24	0.00	1.54	0.00	0.79	-5.51	229.56	-8.50	143.30	0.2472	852.0	622.9
25	0.00	4.98	0.00	2.54	-5.42	229.37	-8.68	142.49	0.2478	521.0	687.9
26	3.53	18.19	1.82	9.38	-7.42	228.97	-9.09	145.70	0.2793	1088.1	941.6
27	9.32	14.48	4.77	7.42	-5.55	228.88	-9.18	141.26	0.2548	1098.3	605.8
28	7.96	13.30	4.07	6.80	-4.72	228.58	-9.47	138.20	0.2472	-964.1	-429.5
29	0.00	1.36	0.00	0.70	-5.96	228.56	-9.49	141.29	0.2635	880.0	693.9
30	0.63	3.08	0.33	1.59	-7.21	228.38	-9.68	143.58	0.2821	1117.3	733.6
31	0.00	1.72	0.00	0.89	-7.37	228.22	-9.83	143.46	0.2858	842.0	718.9
32	0.00	2.72	0.00	1.38	-3.33	228.29	-9.76	133.31	0.2337	-958.0	-708.1
33	0.45	2.08	0.23	1.07	-4.69	228.24	-9.81	137.12	0.2508	-895.4	-777.3
34	0.00	1.09	0.00	0.56	-7.85	227.24	-10.81	141.84	0.3022	843.0	674.7
35	0.81	2.53	0.42	1.31	-6.37	226.59	-11.46	136.90	0.2903	1185.0	935.7
36	0.00	2.44	0.00	1.32	-14.01	226.27	-11.79	149.69	0.3944	-951.0	-767.9
37	0.00	1.18	0.00	0.60	-1.46	226.45	-11.61	122.20	0.2387	-774.0	-621.0
38	0.00	1.00	0.00	0.54	-14.24	226.00	-12.06	149.43	0.3998	-918.0	-768.6
39	4.25	7.51	2.21	3.91	-7.31	226.25	-11.80	138.21	0.3058	1090.9	838.6
40	0.00	7.06	0.00	3.68	-7.59	226.25	-11.81	138.81	0.3094	488.0	587.6
41	0.00	5.07	0.00	2.74	-14.15	225.84	-12.21	148.98	0.3998	-830.0	-761.4
42	0.00	1.36	0.00	0.70	-6.50	226.15	-11.90	136.13	0.2970	682.0	489.9
43	0.00	3.98	0.00	2.08	-7.85	226.02	-12.04	138.80	0.3150	74.0	101.2
44	0.00	1.09	0.00	0.56	-7.03	225.98	-12.08	136.94	0.3054	992.0	875.8
45	5.16	19.28	2.69	10.04	-7.38	225.84	-12.21	137.39	0.3112	956.8	671.5
46	0.00	1.45	0.00	0.78	-14.09	225.49	-12.56	148.19	0.4019	-752.0	-570.9
47	3.35	-45.00	1.74	-45.00	-7.26	225.72	-12.33	136.84	0.3111	1058.9	999999
48	0.00	1.18	0.00	0.64	-14.39	225.34	-12.71	148.29	0.4071	-607.0	-482.9
49	0.00	2.35	0.00	1.22	-6.29	225.62	-12.43	134.39	0.3007	739.0	566.5
50	0.00	2.08	0.00	1.08	-6.95	225.57	-12.48	135.80	0.3091	741.0	639.4
51	0.00	2.35	0.00	1.27	-13.81	224.93	-13.13	146.67	0.4030	-921.0	-746.9
52	0.00	0.81	0.00	0.42	-6.37	225.06	-13.00	133.28	0.3084	831.0	693.0
53	0.00	1.81	0.00	0.94	-5.69	224.92	-13.14	131.32	0.3025	907.0	762.5
54	0.00	1.27	0.00	0.66	-6.75	224.64	-13.42	133.26	0.3178	782.0	596.9
55	0.00	1.63	0.00	0.85	-6.94	224.47	-13.58	133.35	0.3220	383.0	388.0
56	0.00	0.91	0.00	0.47	-3.75	224.42	-13.63	125.11	0.2887	-862.0	-671.6
57	0.00	2.08	0.00	1.12	-12.94	223.92	-14.14	143.39	0.4009	-830.0	-731.7
58	0.00	1.09	0.00	0.56	-3.60	224.05	-14.00	123.97	0.2925	-824.0	-651.3
59	0.00	1.09	0.00	0.58	-9.57	223.68	-14.38	137.17	0.3617	-801.0	-590.8
60	0.00	1.63	0.00	0.88	-12.60	223.45	-14.60	141.98	0.4010	-769.0	-669.2
61	0.00	1.27	0.00	0.67	-6.94	223.53	-14.53	131.39	0.3334	748.0	668.9
62	0.00	1.27	0.00	0.67	-5.28	221.58	-16.48	123.97	0.3420	-978.0	-792.2
63	0.00	1.36	0.00	0.74	-12.63	220.99	-17.07	137.64	0.4268	-696.0	-529.8
64	0.00	2.26	0.00	1.23	-11.93	220.97	-17.08	136.45	0.4189	-735.0	-506.6
65	1.54	2.90	0.81	1.53	-6.13	221.20	-16.86	125.36	0.3551	844.6	703.1
66	4.62	13.67	2.44	7.23	-4.63	220.51	-17.55	120.72	0.3511	-1095.5	-784.5
67	0.00	1.27	0.00	0.68	-9.38	220.19	-17.87	130.58	0.4003	-822.0	-670.4
68	2.26	-66.00	1.20	-66.00	-4.42	220.32	-17.73	119.93	0.3519	-986.8	999999
69	0.00	0.72	0.00	0.38	-3.10	220.10	-17.96	116.28	0.3449	-746.0	-522.5
70	0.00	2.26	0.00	1.20	-4.52	220.03	-18.02	119.77	0.3569	-783.0	-692.0
71	5.34	11.68	2.85	6.24	-6.51	219.80	-18.25	124.07	0.3772	1063.0	647.3
72	3.80	-71.00	2.03	-71.00	-6.67	219.76	-18.29	124.36	0.3792	911.7	999999
73	0.00	1.09	0.00	0.57	-2.74	219.85	-18.21	115.01	0.3459	-861.0	-633.6
74	0.00	1.63	0.00	0.89	-10.77	219.45	-18.60	131.99	0.4234	-839.0	-701.1
75	0.00	0.81	0.00	0.45	-12.24	219.22	-18.84	134.17	0.4418	-794.0	-638.3
76	0.00	1.18	0.00	0.63	-4.97	219.50	-18.55	120.12	0.3680	-697.0	-489.5
77	0.00	1.27	0.00	0.67	-4.21	219.01	-19.05	117.66	0.3690	-836.0	-565.4
78	0.00	2.35	0.00	1.25	-2.00	218.96	-19.10	112.04	0.3543	-837.0	-646.6
79	4.43	9.23	2.36	4.92	-3.97	218.79	-19.27	116.81	0.3704	-956.3	-832.7
80	0.00	1.54	0.00	0.82	-2.81	218.59	-19.47	113.70	0.3651	-733.0	-620.5
81	0.00	1.09	0.00	0.58	-3.64	218.57	-19.48	115.74	0.3711	-553.0	-251.2
82	0.00	1.09	0.00	0.61	-13.84	217.55	-20.50	134.32	0.4772	-861.0	-714.7
83	0.00	1.36	0.00	0.73	-6.39	217.89	-20.16	121.17	0.4020	-928.0	-762.9
84	0.00	1.00	0.00	0.54	-6.74	217.81	-20.24	121.80	0.4060	-881.0	-772.3
85	0.00	2.26	0.00	1.28	-13.92	217.28	-20.78	134.05	0.4810	-759.0	-592.5
86	0.00	1.18	0.00	0.64	-6.81	217.61	-20.44	121.69	0.4093	-937.0	-794.5
87	1.72	3.80	0.93	2.06	-6.72	217.39	-20.67	121.23	0.4116	-893.2	-727.7
88	0.00	1.36	0.00	0.73	-3.85	216.91	-21.15	114.38	0.3969	-690.0	-620.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
